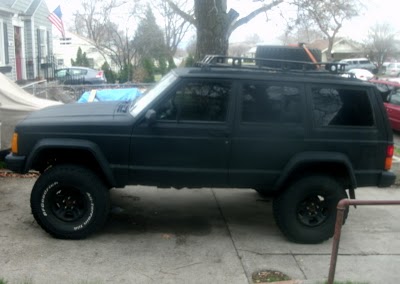

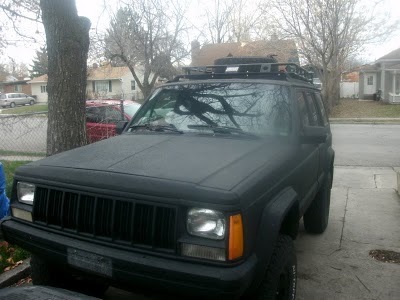

More pics



looks good. You even have the same roof rack.

https://www.cherokeeforum.com/f59/helpful-links-10052/ Post three shows the types.



33 at's they rub a lil on sharp turns. im gonna take the rack of to fix a bend in it and re paint it



on front diff 40869249-4 rev-r on rear diff 43225131-4 rev-f can any one tell me what they are they both say dana on them but these are the only numbers i can find ????

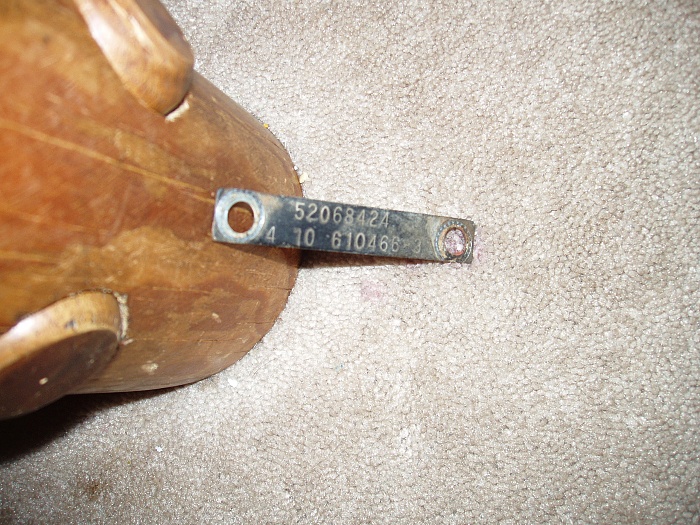

each dif. should have a tag on it that looks like this. It tells the gear ratio. If it doesnt, it means some one has changed the gear oil or gears and didnt put it back on with the dif cover. There are other ways to find the gear ratio but involves taking off the dif. cover. The type of axle you have can be identified by its shape. The link I gave you shows the shapes. As far as those numbers, I dont have a clue. Your front axle is a Dana 30. Your back axle is either a Dana 35 or Chrysler 8.25.



Tag is gone and I tried matching up the axle with the pics and I couldnt find one that looked like my diff I think you right





Take a picture of your rear axle so we can see it.



So I need to get all new bushing for all most all the steering parts . So do it just,walk on in to,the tards at the part store amd ask them or can any here give me a list if all the ones I need so I can tell them ?

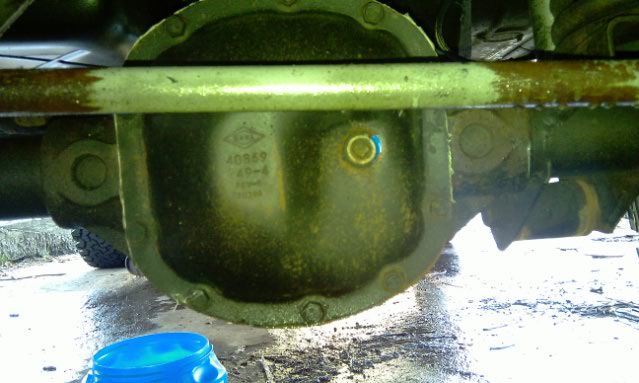

Here are my ax pics



Welcome to the forum



Hello from Maryland



Hey thanks ! Can any one tell me the type of axles I got ? Identify them by the pics?



Your front is a Dana 30 and its good. Your back axle is a Dana 35 and is a POS.



Looks more like a 8.25 to me
