Towing XJ w/ ARB front bumper behind RV
#1
Junior Member
Thread Starter
Join Date: Jan 2014
Location: Redmond, WA
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 HO
Towing XJ w/ ARB front bumper behind RV
Anyone have any experience with front mount hitches that might clear the ARB bumper?
Or any way you can safely tow using the D ring attach points?
(if the bumper can handle being used for extraction.....)
Or any way you can safely tow using the D ring attach points?
(if the bumper can handle being used for extraction.....)
#2
Junior Member
Thread Starter
Join Date: Jan 2014
Location: Redmond, WA
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 HO
#3
Seasoned Member
Join Date: Dec 2013
Location: Eastern Michigan
Posts: 320
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
I will never be fan of those things, but now I'm curious to see if you could use a shackle instead of those clevis pins. That would be much more secure and could attach right to your bumper.
Update: I just did a google search for "d-ring tow bar" and there are definitely solutions out there.
Update: I just did a google search for "d-ring tow bar" and there are definitely solutions out there.
#4
CF Veteran
those arb bumpers are pretty thin. they look tough, but i've seen them bend before.
i just don't like where the shackle points are on those.
all you can do is give it a shot. test drive it around your town first.
i just don't like where the shackle points are on those.
all you can do is give it a shot. test drive it around your town first.
#5
Junior Member
Thread Starter
Join Date: Jan 2014
Location: Redmond, WA
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 HO
BTW great advice on "d-ring towbar" - teh Goog pulled up a bunch of options including:
http://www.warriorproducts.com/catal...-ring-adapter/
http://www.warriorproducts.com/catal...arts/tow-bars/
#6
Seasoned Member
Join Date: Nov 2013
Location: USA
Posts: 290
Likes: 0
Received 1 Like
on
1 Post
Year: 1995
Model: Grand Cherokee (ZJ)
Engine: 4.0L

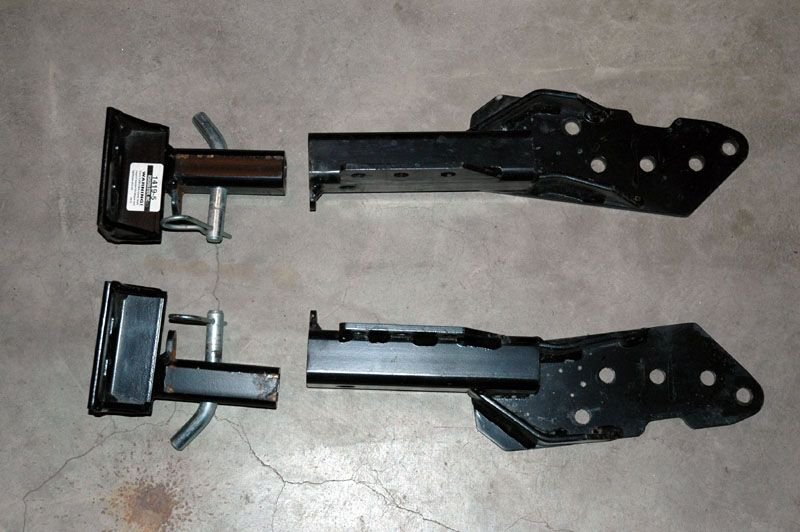

http://www.roadmasterinc.com/pdfinst/1418-3.pdf
http://www.roadmasterinc.com/pdfinst/1418-1.pdf
Each vehicle is different and may require additional support to tie into the frame or sub-frame.
Blue-OX uses another approach for the XJ, installing a heavy duty bar that is part of the two base plates. The tow bar using clevis pins connect to the tow bar base plate.
Blue OX base plate for the XJ.
Both approaches creates additional required strength between both sides of the sub-frame.
If your ARB bumper is able to duplicate the same sort of strengh from and between both sides of the sub-frame there should be no problem as long as the two connection points where the tow bar attaches are strong enough.
Those clevis pins may appear to be weak. Tow bars will actually twist and bend before any pin breakage. The safety chains are there in case something breaks or becomes loose.
Last edited by Muddz; 09-24-2015 at 03:29 PM.
#7
Junior Member
Join Date: Feb 2011
Location: Tennessee
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0L
Do not trust your rig to a lynch pin with a key. I have first had experience of those coming apart while pulling a Jeep Liberty behind a RV. I was able to get pulled off the interstate before loosing the Liberty completely. I ended up with a small hole in the front bumper. I was using a system similar to the Blue Ox in the #6 post, bottom picture. I only use bolts with locking nuts now.
Trending Topics
#8
Junior Member
Thread Starter
Join Date: Jan 2014
Location: Redmond, WA
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 HO
Do not trust your rig to a lynch pin with a key. I have first had experience of those coming apart while pulling a Jeep Liberty behind a RV. I was able to get pulled off the interstate before loosing the Liberty completely. I ended up with a small hole in the front bumper. I was using a system similar to the Blue Ox in the #6 post, bottom picture. I only use bolts with locking nuts now.
These guys are 3/4" with a pin, the pin is not taking the draw load, just stopping the big pin from falling out. No different than what most people use on their draw bars, only bigger.
Also, IIRC you're required to have cables or chains as well in most states, as a backup.
#9
Seasoned Member
Join Date: Nov 2013
Location: USA
Posts: 290
Likes: 0
Received 1 Like
on
1 Post
Year: 1995
Model: Grand Cherokee (ZJ)
Engine: 4.0L
http://www.warriorproducts.com/catal...-ring-adapter/
These guys are 3/4" with a pin, the pin is not taking the draw load, just stopping the big pin from falling out. No different than what most people use on their draw bars, only bigger.
Also, IIRC you're required to have cables or chains as well in most states, as a backup.
These guys are 3/4" with a pin, the pin is not taking the draw load, just stopping the big pin from falling out. No different than what most people use on their draw bars, only bigger.
Also, IIRC you're required to have cables or chains as well in most states, as a backup.
Some states may require a tow brake, or some sort of braking device when towing over a certain limit. It's left up to each State to write and enforce their own rules and regulations.
If you're operating a heavy RV and add another ~4,000 +/- lbs creating a combined load it becomes more difficult to stop. Stopping distance significantly increases. If on slick pavement or snow a tow vehicle potentially jackknives ... having the additional braking helps in emergency situations as well while on the road and stop & go traffic.
Sounds as if there may be a problem with some types of locking mechanisms. On my tow bar I replaced the slip pins with keyed padlocks.
http://www.rvamerica.com/TownTalk/RV...s/Default.aspx
Here's a Military style tow bar I like. I think if I were going to install another tow bar would be similar to military type because I sometimes tow while off-road, logging roads, FSRs, etc. Modern collapsible & non-collaspsible tow bars sometimes have problems with the locking mechanisms and other parts of the tow bar failing. When off-road a pintle connection works much better than a ball. Military tow bar normally have higher pull ratings which makes the tow bar heavy. It may be difficult to find ones that are lighter.
Last edited by Muddz; 09-25-2015 at 02:09 AM.
#10
Junior Member
Thread Starter
Join Date: Jan 2014
Location: Redmond, WA
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 HO
If you're operating a heavy RV and add another ~4,000 +/- lbs creating a combined load it becomes difficult to stop. Stopping distance significantly increases. If on slick pavement or snow a tow vehicle potentially jackknives ... having the additional breaking also helps in emergency situations as well while on the road & stop & go traffic.
#11
Junior Member
Join Date: Feb 2015
Location: Utah
Posts: 66
Likes: 0
Received 1 Like
on
1 Post
Year: 1989
Model: Cherokee
Engine: I6
I have a 30 ' bounder and tow my 89 trail xj with a logans bumper and have had no problems. I do use a large bolt with lock washers though. And yes, my D-ring attachment points are connected to the main bracing of the bumper mounts. i dont even feel the XJ when im towing
#12
::CF Administrator::
I towed my XJ behind a moving truck with a tow bar. Granted it was not the best, but did what I had to do at the time, lost a job and had to move cross country. Got a cheap tow bar on CL. Bad move. After 500 miles or so, the brackets that attached to the bumper broke. I was in the middle of nowheres crippled. Had to rent a flatbed tow trailer. And that wasn't without issue, as I had 35's, had to deflate the tires to get it on the trailer, and strapped down proper.
My advice? IF you decide on a bumper mount tow bar, DO YOUR RESEARCH!...other than that, I suggest a tow dolly or flat trailer...having things go wrong in the middle of BFE REALLY sucks.
My advice? IF you decide on a bumper mount tow bar, DO YOUR RESEARCH!...other than that, I suggest a tow dolly or flat trailer...having things go wrong in the middle of BFE REALLY sucks.
#13
CF Veteran
Join Date: Jan 2015
Location: Oregon Coast
Posts: 1,508
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L I6
I towed my XJ behind a moving truck with a tow bar. Granted it was not the best, but did what I had to do at the time, lost a job and had to move cross country. Got a cheap tow bar on CL. Bad move. After 500 miles or so, the brackets that attached to the bumper broke. I was in the middle of nowheres crippled. Had to rent a flatbed tow trailer. And that wasn't without issue, as I had 35's, had to deflate the tires to get it on the trailer, and strapped down proper.
My advice? IF you decide on a bumper mount tow bar, DO YOUR RESEARCH!...other than that, I suggest a tow dolly or flat trailer...having things go wrong in the middle of BFE REALLY sucks.
My advice? IF you decide on a bumper mount tow bar, DO YOUR RESEARCH!...other than that, I suggest a tow dolly or flat trailer...having things go wrong in the middle of BFE REALLY sucks.
#14
::CF Administrator::
#15
Junior Member
Join Date: Feb 2011
Location: Tennessee
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0L
http://www.warriorproducts.com/catal...-ring-adapter/
These guys are 3/4" with a pin, the pin is not taking the draw load, just stopping the big pin from falling out. No different than what most people use on their draw bars, only bigger.
Also, IIRC you're required to have cables or chains as well in most states, as a backup.
These guys are 3/4" with a pin, the pin is not taking the draw load, just stopping the big pin from falling out. No different than what most people use on their draw bars, only bigger.
Also, IIRC you're required to have cables or chains as well in most states, as a backup.
