Rustys Sway Bar Discos Install Question

Thread Tools

Search this Thread

Old Feb 23, 2018 | 12:17 AM
  #1
LiamLikeNeeson's Avatar
Thread Starter
Senior Member

Joined: Nov 2014
Posts: 766
Likes: 5
From: Los Angeles, CA
Year: 1989 Limited
Model: Cherokee(XJ)
Engine: I-6 4.0L AMC Renix
Default Rustys Sway Bar Discos Install Question

I just bought the rustys adjustable sway bar discos and I can't figure out how you're supposed to store them once disconnected. Isn't there supposed to be a bracket that you drill into the wheel well to hook them up to so they don't just free hang after you disconnect them?
Reply
Old Feb 23, 2018 | 08:47 AM
  #2
Tbone289's Avatar
CF Veteran

Joined: Oct 2011
Posts: 1,394
Likes: 8
From: SEMO
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0 L6
Default

From the installation instructions:

22. NOTE: The Supplied Storage Pins can only be used on Wrangler TJ models, or Cherokee XJ/Grand Cherokee ZJ Models equipped with OE front skid plate.

Here is a link to the instruction sheet: http://www.rustysoffroad.com/media/i...C-SB500-UV.pdf
Reply
Old Feb 25, 2018 | 05:41 PM
  #3
LiamLikeNeeson's Avatar
Thread Starter
Senior Member

Joined: Nov 2014
Posts: 766
Likes: 5
From: Los Angeles, CA
Year: 1989 Limited
Model: Cherokee(XJ)
Engine: I-6 4.0L AMC Renix
Default

Thanks man. That page didn't come in the printed instruction packet.
Reply
Old Feb 25, 2018 | 08:08 PM
  #4
ffeng31's Avatar
Junior Member

Joined: Dec 2017
Posts: 62
Likes: 1
From: Central Florida
Year: 2001
Model: Cherokee(XJ)
Engine: 4.0
Default

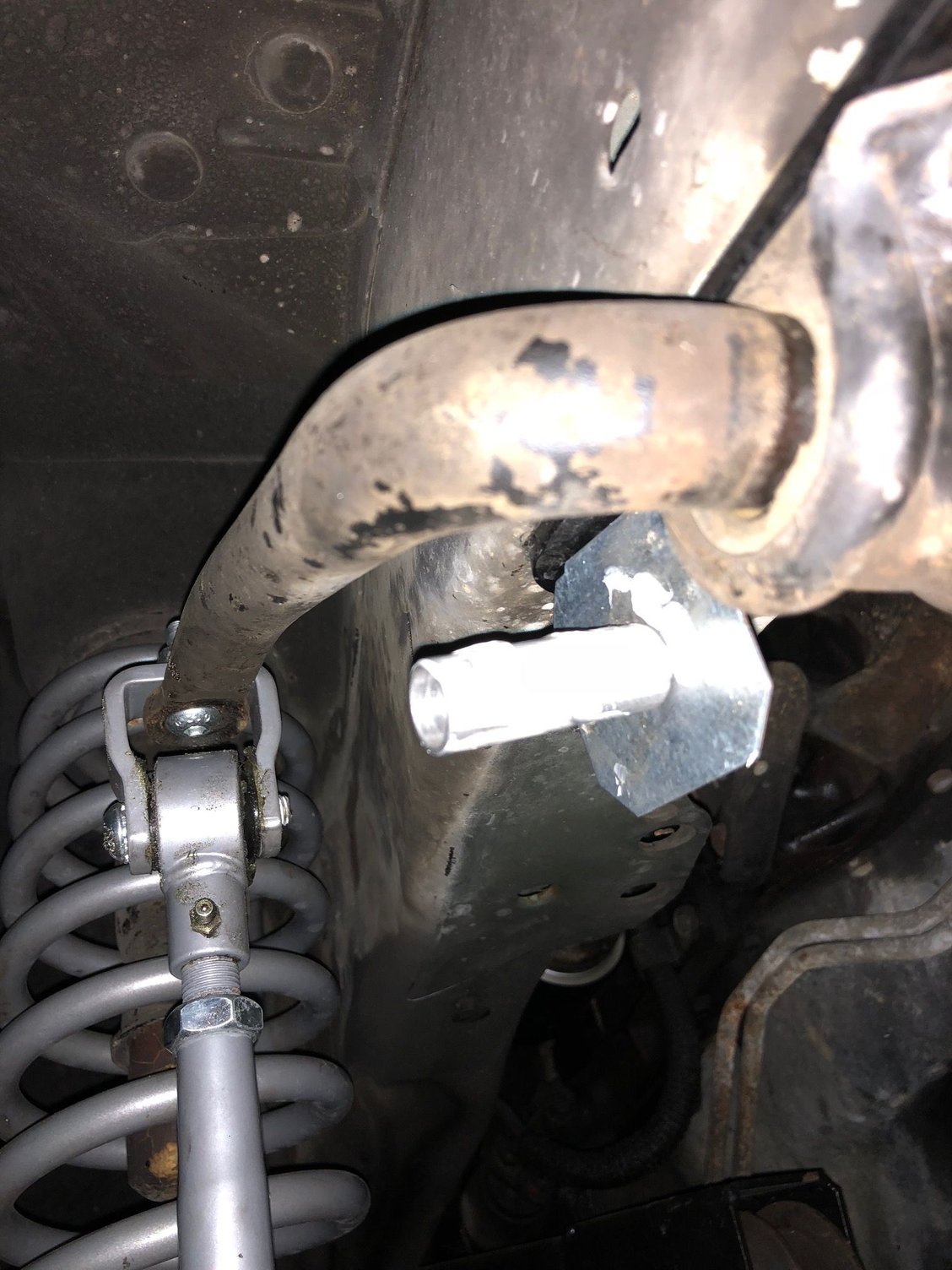

I ran into the same when installing my discos . I read where it said to mount to the skid plate but my XJ doesn't have one. So I improvised. I picked up these L shaped brackets at Tractor Supply , Drilled a hole in them for the pin and mounted them just to the rear of the Sway bar bushing bracket. There is a factory threaded hole there that wasn't used and the bracket fits perfectly. When disconnected and attached to the pins , they hold the sway bar right up next to the frame and out of the way. Total cost for the 2 brackets and 2 lock nuts for the allen head bolts that hold the pins was less than $6. Here are a few pics. White coating on pins is grease . makes disconnecting and re-connecting much easier.



Reply
