Regearing XJ Question
#1
Junior Member
Thread Starter
Join Date: Nov 2018
Location: Greenville, SC
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0L 6Cyl
Regearing XJ Question
Still a noob but hey that's why i'm here. How many 4.56 gears do I need for a 2wd XJ
#3
Junior Member
Thread Starter
Join Date: Nov 2018
Location: Greenville, SC
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0L 6Cyl
So just to confirm I only need a gear for my rear axle since its 2wd and I dont have a front axle?
#4
CF Veteran
Join Date: Oct 2018
Location: Hunt County Texas
Posts: 1,096
Received 164 Likes
on
139 Posts
Year: 1995
Model: Cherokee (XJ)
Engine: 4.0L
Well you have a front axle but it's just a tube without a differential (the big pumpkin looking piece) .
This is what one (1) ring and pinion gear set looks like. This would be enough for one axle.
This is what one (1) ring and pinion gear set looks like. This would be enough for one axle.
#5
Junior Member
Thread Starter
Join Date: Nov 2018
Location: Greenville, SC
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0L 6Cyl
I think i'm beginning to understand, it doesn't have to do with axles but the differentials and
I only need one ring and pinion gear set because I only have a rear differential and not a front on a 2wd?
p.s sorry if this is irritating i'm extremely new to cars
I only need one ring and pinion gear set because I only have a rear differential and not a front on a 2wd?
p.s sorry if this is irritating i'm extremely new to cars
#6
CF Veteran
Join Date: Oct 2018
Location: Hunt County Texas
Posts: 1,096
Received 164 Likes
on
139 Posts
Year: 1995
Model: Cherokee (XJ)
Engine: 4.0L

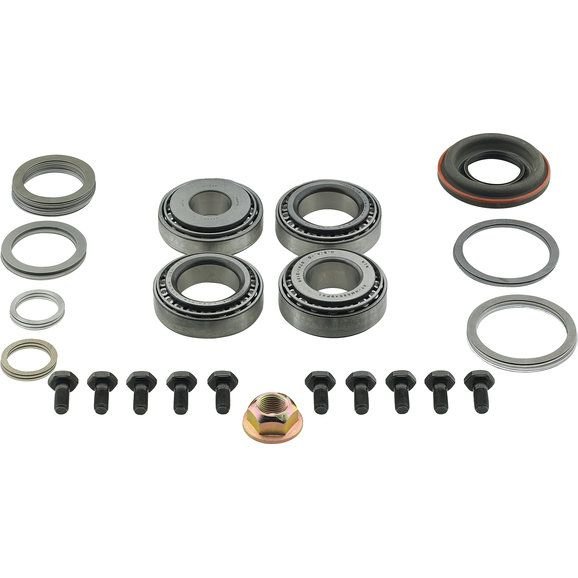

It's all good gotta start somewhere. Correct you only need one ring and pinion gear set. I would also invest in a rebuild kit while you are at it. Installing the new gears will require them to be "reset". This is something I would suggest letting a shop do, if you are this new to vehicle maintenance. While they have it apart it's not that much more work to rebuild with new bearings and seals and will be worth it in the long run considering the age of any XJ out there.
#7
Junior Member
Thread Starter
Join Date: Nov 2018
Location: Greenville, SC
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0L 6Cyl
It's all good gotta start somewhere. Correct you only need one ring and pinion gear set. I would also invest in a rebuild kit while you are at it. Installing the new gears will require them to be "reset". This is something I would suggest letting a shop do, if you are this new to vehicle maintenance. While they have it apart it's not that much more work to rebuild with new bearings and seals and will be worth it in the long run considering the age of any XJ out there.
Last edited by Exploited; 01-19-2019 at 07:42 PM.
Trending Topics
#8
CF Veteran
Join Date: Oct 2018
Location: Hunt County Texas
Posts: 1,096
Received 164 Likes
on
139 Posts
Year: 1995
Model: Cherokee (XJ)
Engine: 4.0L
With a rear locker you will be pretty well set for all but real steep or technical off road stuff where the low range would be very helpful. I'd invest in good recovery gear and a winch as well.
In the future you may decide to do a 4WD conversion which on the XJ is pretty easy overall.
In the future you may decide to do a 4WD conversion which on the XJ is pretty easy overall.
#9
Junior Member
Thread Starter
Join Date: Nov 2018
Location: Greenville, SC
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0L 6Cyl
With a rear locker you will be pretty well set for all but real steep or technical off road stuff where the low range would be very helpful. I'd invest in good recovery gear and a winch as well.
In the future you may decide to do a 4WD conversion which on the XJ is pretty easy overall.
In the future you may decide to do a 4WD conversion which on the XJ is pretty easy overall.
#10
Seasoned Member
Check your carrier break here: http://www.differentials.com/technic...arrier-breaks/
#11
Junior Member
Thread Starter
Join Date: Nov 2018
Location: Greenville, SC
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0L 6Cyl
You probably want to check to see if your rear differential will even support 4.56 gears.
Check your carrier break here: http://www.differentials.com/technic...arrier-breaks/
Check your carrier break here: http://www.differentials.com/technic...arrier-breaks/
#12
Seasoned Member
There are folks here that know better than me for sure...
It may or may not be possible to install the much larger ring and pinion (e.g. the 4.56 that you want to install). It depends on the diff that you have and the carrier break. For example, my XJ has a Dana 44 3.54. The carrier break, based on deck height (I guess), is 3.73/3.92. One translation, a 4.56 ring and pinion set cannot be installed in the Dana 44 on my XJ. 3.73 is as large as I can go.
But, I am an IT guy, not a mechanic. So I hope that another CF.com patron chimes in.
I saw a thing on YouTube though. The NickInTimeFilms guy was able to put a stronger gear set ratio into his XJ Dana 44 based on some specialized hardware that he acquired. But he is a pretty advanced XJ tech.
It may or may not be possible to install the much larger ring and pinion (e.g. the 4.56 that you want to install). It depends on the diff that you have and the carrier break. For example, my XJ has a Dana 44 3.54. The carrier break, based on deck height (I guess), is 3.73/3.92. One translation, a 4.56 ring and pinion set cannot be installed in the Dana 44 on my XJ. 3.73 is as large as I can go.
But, I am an IT guy, not a mechanic. So I hope that another CF.com patron chimes in.
I saw a thing on YouTube though. The NickInTimeFilms guy was able to put a stronger gear set ratio into his XJ Dana 44 based on some specialized hardware that he acquired. But he is a pretty advanced XJ tech.
#13
CF Veteran
Join Date: Oct 2018
Location: Hunt County Texas
Posts: 1,096
Received 164 Likes
on
139 Posts
Year: 1995
Model: Cherokee (XJ)
Engine: 4.0L
Forgot about the carrier break. But if you are buying a full case locker to put in there it won't be a problem. Just buy a locker for the proper gear set.
#14
CF Veteran
#15
Junior Member
Thread Starter
Join Date: Nov 2018
Location: Greenville, SC
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0L 6Cyl
There are folks here that know better than me for sure...
It may or may not be possible to install the much larger ring and pinion (e.g. the 4.56 that you want to install). It depends on the diff that you have and the carrier break. For example, my XJ has a Dana 44 3.54. The carrier break, based on deck height (I guess), is 3.73/3.92. One translation, a 4.56 ring and pinion set cannot be installed in the Dana 44 on my XJ. 3.73 is as large as I can go.
But, I am an IT guy, not a mechanic. So I hope that another CF.com patron chimes in.
I saw a thing on YouTube though. The NickInTimeFilms guy was able to put a stronger gear set ratio into his XJ Dana 44 based on some specialized hardware that he acquired. But he is a pretty advanced XJ tech.
It may or may not be possible to install the much larger ring and pinion (e.g. the 4.56 that you want to install). It depends on the diff that you have and the carrier break. For example, my XJ has a Dana 44 3.54. The carrier break, based on deck height (I guess), is 3.73/3.92. One translation, a 4.56 ring and pinion set cannot be installed in the Dana 44 on my XJ. 3.73 is as large as I can go.
But, I am an IT guy, not a mechanic. So I hope that another CF.com patron chimes in.
I saw a thing on YouTube though. The NickInTimeFilms guy was able to put a stronger gear set ratio into his XJ Dana 44 based on some specialized hardware that he acquired. But he is a pretty advanced XJ tech.
