Rear axle alignment after 3in lift
#1
Newbie
Thread Starter
Join Date: Jun 2017
Location: Tennessee
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Rear axle alignment after 3in lift
Rear axle alignment after installing lift??
hey guys, I have been installing a bastard leaf spring pack from an s10 the past two days on and off on my 1993 cherokee, and have had zero problems until now. I've gotten one side completely put in and done, but on the driver side I've got the leaf springs bolted in but I can't get the axle to line up. The axle seems to be tilted to the left(towards front) a good 4 inches. And no matter what I do I can't get it to budge. I've connected ratchet straps and tried pulling it and I've even hooked up my other car to see if I could get it to move at all. But nothing is working and instead of the axle moving forward the entire jeep moves.(tires drag and everything). I was supposed to get the new tires on today but had to cancel because I couldn't get this figured out. Any help would be greatly appreciated!
I also created a new thread because everywhere I see this problem people say to just connect ratchet straps and that isn't working
hey guys, I have been installing a bastard leaf spring pack from an s10 the past two days on and off on my 1993 cherokee, and have had zero problems until now. I've gotten one side completely put in and done, but on the driver side I've got the leaf springs bolted in but I can't get the axle to line up. The axle seems to be tilted to the left(towards front) a good 4 inches. And no matter what I do I can't get it to budge. I've connected ratchet straps and tried pulling it and I've even hooked up my other car to see if I could get it to move at all. But nothing is working and instead of the axle moving forward the entire jeep moves.(tires drag and everything). I was supposed to get the new tires on today but had to cancel because I couldn't get this figured out. Any help would be greatly appreciated!
I also created a new thread because everywhere I see this problem people say to just connect ratchet straps and that isn't working
#3
Newbie
Thread Starter
Join Date: Jun 2017
Location: Tennessee
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
But I did finally discover the problem. The driveshaft is at quite an angle and the u joint was at an angle where it was stuck/jammed.They say I don't need a transfer case drop down bracket with a 3in, so I'm guessing these leafs added a little more than 3 because the driveshaft is almost falling out due to the angle and it's shaking when driving. Anything that I'm missing? Or should I just try to order a drop down bracket. Thanks
#4
CF Veteran
Join Date: Feb 2016
Location: Northern New Mexico
Posts: 3,683
Likes: 0
Received 7 Likes
on
6 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
I thought that at first and so I had both sides free but still the same problem.
But I did finally discover the problem. The driveshaft is at quite an angle and the u joint was at an angle where it was stuck/jammed.They say I don't need a transfer case drop down bracket with a 3in, so I'm guessing these leafs added a little more than 3 because the driveshaft is almost falling out due to the angle and it's shaking when driving. Anything that I'm missing? Or should I just try to order a drop down bracket. Thanks
But I did finally discover the problem. The driveshaft is at quite an angle and the u joint was at an angle where it was stuck/jammed.They say I don't need a transfer case drop down bracket with a 3in, so I'm guessing these leafs added a little more than 3 because the driveshaft is almost falling out due to the angle and it's shaking when driving. Anything that I'm missing? Or should I just try to order a drop down bracket. Thanks
#5
Newbie
Thread Starter
Join Date: Jun 2017
Location: Tennessee
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
I just went outside and measured the wheel gap and I'm about 8in. Not sure what the stock was... and I knew I should've measured it before I started. Is that roughly around 3-4in in lift? And is that too much to install a tc drop kit?
thanks
#7
CF Veteran
Join Date: Feb 2016
Location: Northern New Mexico
Posts: 3,683
Likes: 0
Received 7 Likes
on
6 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
I've heard a lot about the sye but don't have much knowledge or experience with them. I have heard the price can get up there, and I only bought the jeep for 750$ so I'm hoping to not throw too much money at it within the first few weeks of having it, but you've gotta do what you gotta do.
I just went outside and measured the wheel gap and I'm about 8in. Not sure what the stock was... and I knew I should've measured it before I started. Is that roughly around 3-4in in lift? And is that too much to install a tc drop kit?
thanks
I just went outside and measured the wheel gap and I'm about 8in. Not sure what the stock was... and I knew I should've measured it before I started. Is that roughly around 3-4in in lift? And is that too much to install a tc drop kit?
thanks
Trending Topics
#8
Newbie
Thread Starter
Join Date: Jun 2017
Location: Tennessee
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee

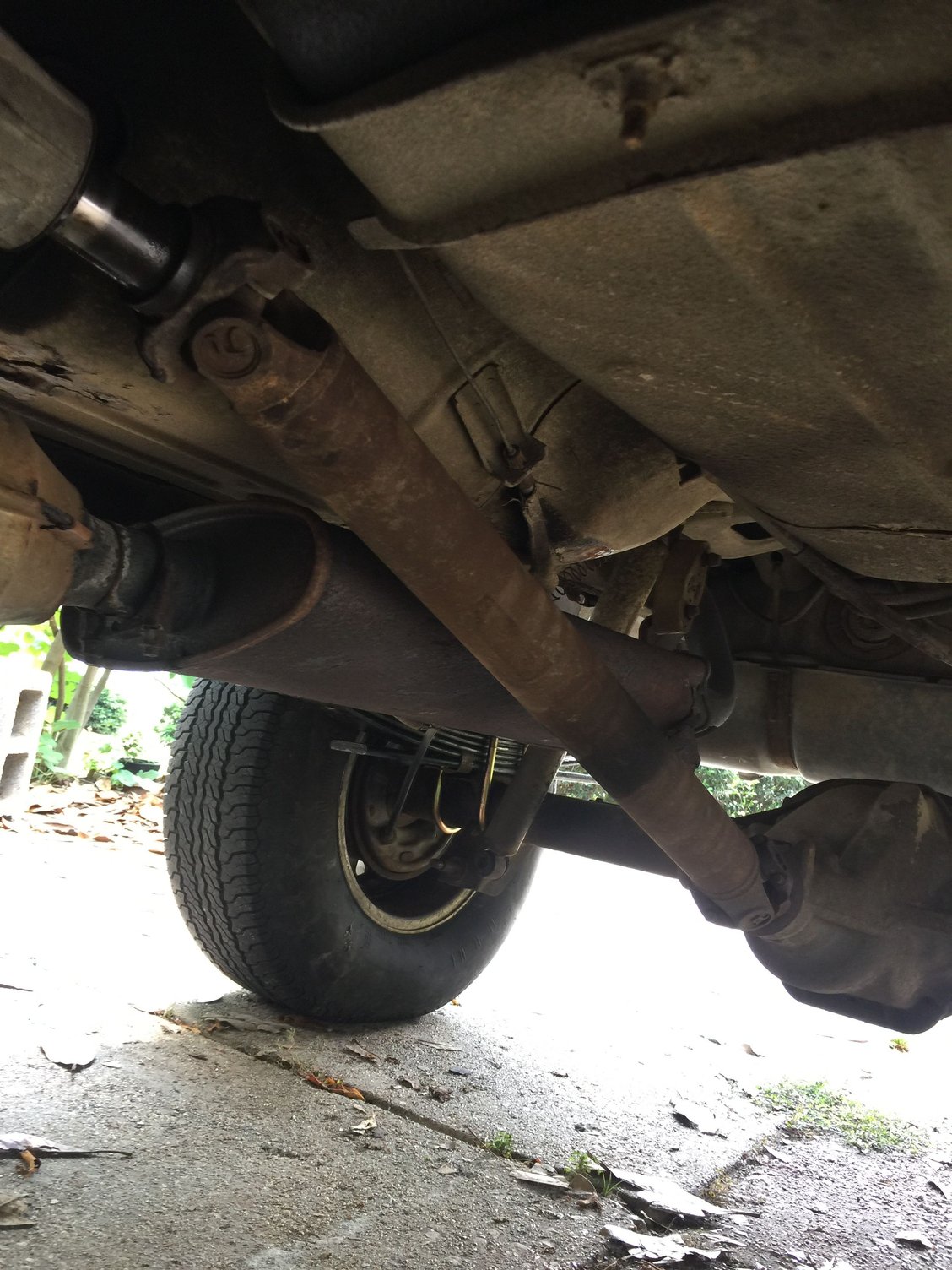

Here's some pictures to show the angle I'm dealing with.
And I've got stock tires and fender flares and my height from center of wheel to flare is 22in. How in the world did I get 5in from this.... it was only supposed to be 3.
And I've got stock tires and fender flares and my height from center of wheel to flare is 22in. How in the world did I get 5in from this.... it was only supposed to be 3.
Last edited by Nick's Farm; 07-21-2017 at 01:31 PM.
#9
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
I've heard a lot about the sye but don't have much knowledge or experience with them. I have heard the price can get up there, and I only bought the jeep for 750$ so I'm hoping to not throw too much money at it within the first few weeks of having it, but you've gotta do what you gotta do.
I just went outside and measured the wheel gap and I'm about 8in. Not sure what the stock was... and I knew I should've measured it before I started. Is that roughly around 3-4in in lift? And is that too much to install a tc drop kit?
thanks
I just went outside and measured the wheel gap and I'm about 8in. Not sure what the stock was... and I knew I should've measured it before I started. Is that roughly around 3-4in in lift? And is that too much to install a tc drop kit?
thanks
Last edited by freegdr; 07-21-2017 at 03:16 PM.
#11
Newbie
Thread Starter
Join Date: Jun 2017
Location: Tennessee
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Well in the s10 pack they call for the original top leaf from the jeep and then add the entire s10 pack underneath that after cutting the eyelets off of the s10 top leaf. Then put it all together and install for 3-4 inches of lift( usually exactly 3.5). And somehow I got 5inches. Does anyone have any experience with this particular leaf spring pack? And could maybe tell me which leaf I should remove from the pack to lower it an inch to two inches? Without going too low. I thought this would be a simple little project but they sure do make everything go as smooth as butter in the videos and forums.
#12
I don't have any experience with bastard packs but I had some trouble getting everything to line up with my RE 3.5" leaf packs(21.5" from center axle to stock center flare). Ending up needing a 1" TC drop due to yoke binding. The drop kit is cheap and I know it hurts clearance, But it's a band aid until I can drop $250 for a SYE and $300 for an Adams driveshaft.
#13
Newbie
Thread Starter
Join Date: Jun 2017
Location: Tennessee
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
I don't have any experience with bastard packs but I had some trouble getting everything to line up with my RE 3.5" leaf packs(21.5" from center axle to stock center flare). Ending up needing a 1" TC drop due to yoke binding. The drop kit is cheap and I know it hurts clearance, But it's a band aid until I can drop $250 for a SYE and $300 for an Adams driveshaft.
#14
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Save money install sye and hit local u pull......Read.....https://www.cherokeeforum.com/f67/lo...engths-126247/
#15
CF Veteran
The driveshaft is dangerously close to comming out. If it does the it usually rips off the tail cone. I'd opt for a SYE too. The hack n tap may be your cheapest route.
As far as the S-10 leafs. Every pack is different & it will be trial & error until it's perfect. Part of the game to get cheap lift.
As far as the S-10 leafs. Every pack is different & it will be trial & error until it's perfect. Part of the game to get cheap lift.
