Painting my fender flares and trim?

Thread Tools

Search this Thread

Old 05-02-2012, 09:10 PM
  #1
Junior Member
Thread Starter

mosesh's Avatar

Join Date: Feb 2012
Location: California
Posts: 71
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L 6-cyl
Default Painting my fender flares and trim?

I would like to rattle can paint my fender flares and bumper flat black. What is the best technique to painting these and do i need to take them off? I have heard of the bolts breaking when you unscrew them so would leaving them on and then painting be the best way? Also do I need to sand with certain types of sandpaper and do i have to finish it with anything? Any help is appreciated.

Jeep on.
-Moses
Old 05-02-2012, 09:29 PM
  #2
Banned

Scott0821's Avatar

Join Date: Feb 2012
Location: Ohio
Posts: 948
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0l i6
Default

I just left the bumper on and painted it with rustoleum truck bed liner... I took the side molding off to do it and I'm not sure about the flares.... Probably be better off taking them off imo
Old 05-02-2012, 10:21 PM
  #3
Junior Member
Thread Starter

mosesh's Avatar

Join Date: Feb 2012
Location: California
Posts: 71
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L 6-cyl
Default

Originally Posted by Scott0821
I just left the bumper on and painted it with rustoleum truck bed liner... I took the side molding off to do it and I'm not sure about the flares.... Probably be better off taking them off imo
Will the truck bed liner be smooth or have that bumpy look to it?
Old 05-02-2012, 10:24 PM
  #4
CF Veteran

CherokeeChick's Avatar

Join Date: Jan 2011
Location: Eh infusion
Posts: 8,996
Likes: 0
Received 2 Likes on 2 Posts
Year: 2000
Model: Cherokee
Engine: The legendary inline 6, haven't done anything here yet
Default

Under coating is bumpy looking the bed liner makes it look more flat
Old 05-02-2012, 10:42 PM
  #5
CF Veteran

BotakBeng's Avatar

Join Date: Jan 2011
Location: Las Vegas
Posts: 1,894
Likes: 0
Received 4 Likes on 4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

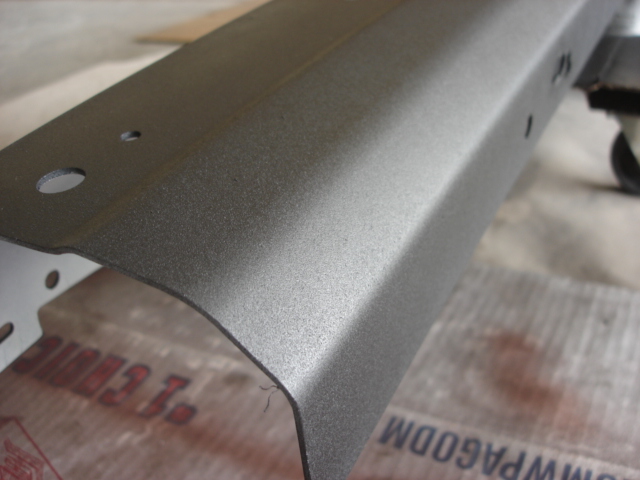

I used Rustoleum Textured black with matte clear coat.
Is all about prep.

Here is mine.


Name:  DSC07801.jpg
Views: 1519
Size:  121.5 KB
Old 05-02-2012, 10:45 PM
  #6
Senior Member

macgyver35's Avatar

Join Date: Feb 2012
Location: Arlington, Texas
Posts: 864
Likes: 0
Received 4 Likes on 4 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

If you want them bumpy and coarsely textured, use bed liner spray or undercoating. They'll pick up more dirt and be harder to clean though.

If you want more of a satin factory look, use Krylon Fusion in satin black. You can tape of the fenders and paint them on the vehicle. Wash and rinse the vehicle well. I usually recommend hitting the flares and bumper ends with some Comet and a scrub brush while washing it to get down in the grain and get any traces of wax/armor-all out. Rinse and dry well. Lightly sand any scratches or snags down flush with 400 grit sandpaper, but only do this where you really have to as it changes the texture in any spots you sand. Then, wipe them down with lacquer thinner using a clean white rag, preferably and old t-shirt or microfiber cloth.

Shake up your Krylon fusion well and paint away!
The following users liked this post:
Miccalto@13 (03-05-2024)
Old 05-02-2012, 11:44 PM
  #7
Member

2dbatcv's Avatar

Join Date: Feb 2012
Location: Dickinson, ND
Posts: 126
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default

I used bed liner to do my rocker panels and flares. I'm a novice but here's my prep: taped everything off really well, then sanded, wiped down, wiped down with denatured alcohol, rattle can primer, then krylon camo flat black paint, decided I hated the look of the paint, wiped down with rag, went to store and bought dupilolor(i think?) bedliner in a can, brillo padded everything, rolled on four coats of bed liner, removed tape, enjoyed. Hasn't chipped or peeled or anything yet and looks very very good.

Pics


Old 05-02-2012, 11:52 PM
  #8
CF Veteran

BotakBeng's Avatar

Join Date: Jan 2011
Location: Las Vegas
Posts: 1,894
Likes: 0
Received 4 Likes on 4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

^ Ultimate durability but any problem with getting dirt/mud off?

Looks great btw.
Old 05-05-2012, 04:08 AM
  #9
Member

2dbatcv's Avatar

Join Date: Feb 2012
Location: Dickinson, ND
Posts: 126
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Not sure yet. Heard from others that it can be a pain to clean
Old 05-05-2012, 09:13 AM
  #10
CF Veteran

rtralabama's Avatar

Join Date: Aug 2010
Location: Carlisle, PA
Posts: 1,678
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: Inline 6
Default

Originally Posted by 2dbatcv
Not sure yet. Heard from others that it can be a pain to clean
If you put a clear coat on it, its suppose to make the mud wash off easier
Old 05-05-2012, 09:15 AM
  #11
Banned

Scott0821's Avatar

Join Date: Feb 2012
Location: Ohio
Posts: 948
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0l i6
Default

Originally Posted by rtralabama

If you put a clear coat on it, its suppose to make the mud wash off easier
Are you supposed to put a matte finish clear coat on?
Old 05-05-2012, 11:44 AM
  #12
CF Veteran

Jeepxj1234's Avatar

Join Date: Sep 2010
Location: NC
Posts: 1,843
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 L
Default

Originally Posted by macgyver35
If you want them bumpy and coarsely textured, use bed liner spray or undercoating. They'll pick up more dirt and be harder to clean though.

If you want more of a satin factory look, use Krylon Fusion in satin black. You can tape of the fenders and paint them on the vehicle. Wash and rinse the vehicle well. I usually recommend hitting the flares and bumper ends with some Comet and a scrub brush while washing it to get down in the grain and get any traces of wax/armor-all out. Rinse and dry well. Lightly sand any scratches or snags down flush with 400 grit sandpaper, but only do this where you really have to as it changes the texture in any spots you sand. Then, wipe them down with lacquer thinner using a clean white rag, preferably and old t-shirt or microfiber cloth.

Shake up your Krylon fusion well and paint away!

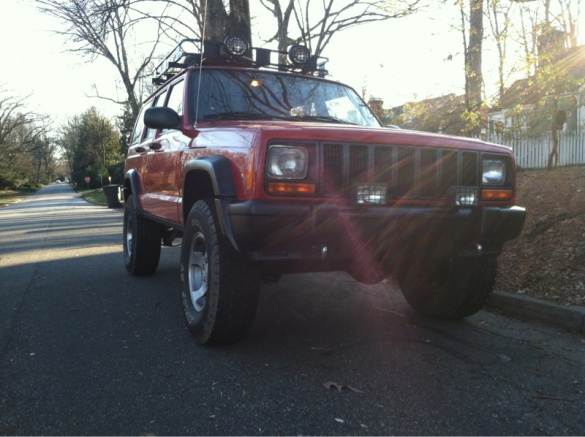

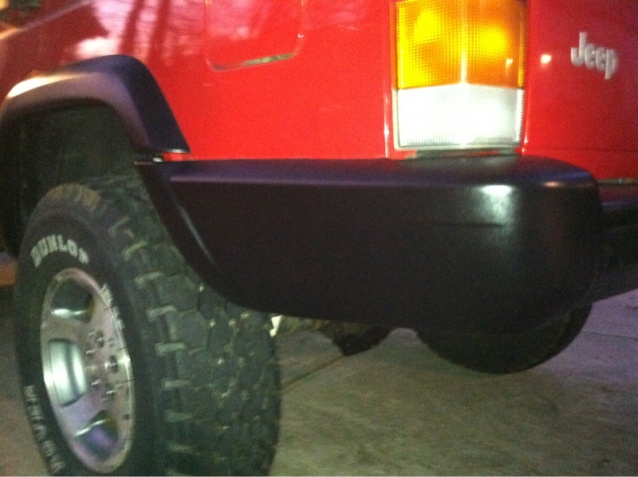

Yes! Krylon fusion requires little to no prep. It looks good too :
Attached Thumbnails Painting my fender flares and trim?-image-2757131194.jpg   Painting my fender flares and trim?-image-1315901418.jpg
Old 05-05-2012, 01:01 PM
  #13
Senior Member

98_XJ Sport's Avatar

Join Date: May 2011
Location: Flagstaff, Arizona
Posts: 609
Likes: 0
Received 2 Likes on 2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L I6
Default

I did bedliner as well. Its very durable and it looks good. The dust and mud is a little difficult to get off, but if you have a brush you can scrub it pretty well. Just make sure you do your coats thick enough.
Attached Thumbnails Painting my fender flares and trim?-forumrunner_20120505_110012.jpg   Painting my fender flares and trim?-forumrunner_20120505_110034.jpg
Old 05-05-2012, 06:34 PM
  #14
Junior Member
Thread Starter

mosesh's Avatar

Join Date: Feb 2012
Location: California
Posts: 71
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L 6-cyl
Default

Should i take the bumper and flares off or just prep it well before and tape everything off?
Old 05-05-2012, 06:37 PM
  #15
Senior Member

98_XJ Sport's Avatar

Join Date: May 2011
Location: Flagstaff, Arizona
Posts: 609
Likes: 0
Received 2 Likes on 2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L I6
Default

Prep it and tape. Took my flares off and have never been able to get them on the same way since
