Lower control arm question
07-30-2013, 09:19 PM
#1
Junior Member
Thread Starter
Join Date: Dec 2010
Location: Grand Haven, Mi
Posts: 84
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Lower control arm question

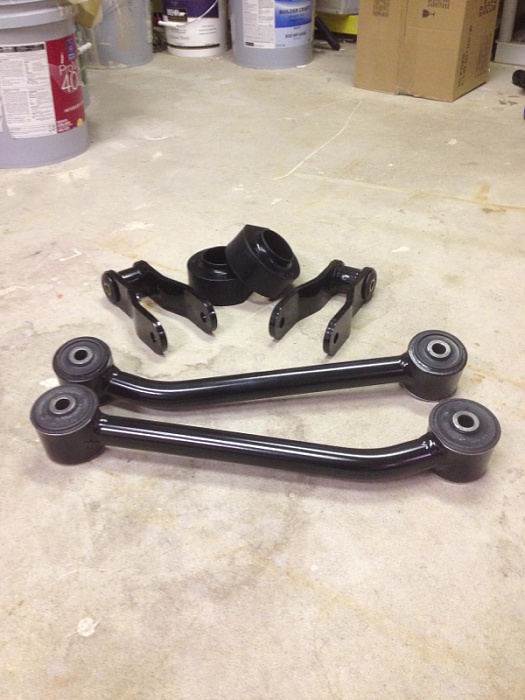

It's really a stupid question but I can find instructions or a picture anywhere. I bought control arms with the bend from IRO and I'm not really sure which way they go in. The bend closest to the axle? Or the bracket? And bend facing up? Or down? Attached is a picture of the arms. Show me pictures if possible please. Thanks for the help guys.
07-31-2013, 10:41 AM
#6
CF Veteran
Join Date: Apr 2011
Location: Indianapolis
Posts: 4,825
Likes: 0
Received 2 Likes
on
2 Posts
Year: '99 and '91
Model: Cherokee
The bend is usually there so it doesn't bottom out on the shock mount when you articulate your suspension. If it was for tire clearence it should bend horizantally to the mounts (away from the tire). Like WJ LCAs.
Trending Topics
07-31-2013, 11:24 AM
#8
CF Veteran
Join Date: Sep 2010
Location: Milwaukee, WI
Posts: 21,168
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1987
Engine: Check
That bend doesn't move the arm further away from the tire, the arm is still located in the stock place. Like said above, it'd have to bend inward towards the center to gain any tire clearance.
