Long arm vs. the drop kit
Junior Member
Joined: May 2008
Posts: 15,016
Likes: 11
From: +34° 25' 35.67", -81° 21' 12.04"
Year: 1993
Engine: 4.0
Beach Bum
Joined: Jul 2011
Posts: 6,123
Likes: 22
From: Cape Hatteras, North Carolina
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Last edited by SteveMongr; Sep 11, 2013 at 03:05 PM.
Expensive?
CF Veteran
Joined: Nov 2011
Posts: 7,387
Likes: 10
From: City of Trees, CA
Year: 93 2 door
Model: Cherokee
Engine: 4.0
CF Veteran
Joined: Nov 2011
Posts: 7,387
Likes: 10
From: City of Trees, CA
Year: 93 2 door
Model: Cherokee
Engine: 4.0
only things I can think of is the binding and the control. radius arms unloading etc. (which I have yet to notice)
found some links
http://www.naxja.org/forum/archive/i...p/t-64591.html
seriousoffroad says: http://ns2.naxja.org/forum/showpost....49&postcount=2
found some links
http://www.naxja.org/forum/archive/i...p/t-64591.html
seriousoffroad says: http://ns2.naxja.org/forum/showpost....49&postcount=2
Last edited by Atmos; Sep 11, 2013 at 03:50 PM.
Junior Member
Joined: May 2008
Posts: 15,016
Likes: 11
From: +34° 25' 35.67", -81° 21' 12.04"
Year: 1993
Engine: 4.0
only things I can think of is the binding and the control. radius arms unloading etc. (which I have yet to notice)
found some links
http://www.naxja.org/forum/archive/i...p/t-64591.html
seriousoffroad says: http://ns2.naxja.org/forum/showpost....49&postcount=2
found some links
http://www.naxja.org/forum/archive/i...p/t-64591.html
seriousoffroad says: http://ns2.naxja.org/forum/showpost....49&postcount=2
No, the Jeep isn't going to flip over because you have radius arms.
I've seen hundreds of rigs in person with radius arms that work just fine but if I were to spend the money on a kit it wouldn't be a radius arm unless I got a killer deal on it.
Seasoned Member
Joined: Nov 2012
Posts: 447
Likes: 0
From: Auburn, CA
Year: 95
Model: Cherokee
Engine: I6 4.0 242 HO
Junior Member
Joined: May 2008
Posts: 15,016
Likes: 11
From: +34° 25' 35.67", -81° 21' 12.04"
Year: 1993
Engine: 4.0
Seasoned Member
Joined: Nov 2012
Posts: 447
Likes: 0
From: Auburn, CA
Year: 95
Model: Cherokee
Engine: I6 4.0 242 HO
No idea what an RK bolt is? But it accepts the stock bolt.
CF Veteran
Joined: Jul 2011
Posts: 4,521
Likes: 1
From: JOCO
Year: 1999
Engine: 4.0 Inline 6
A hack-n-tap and wheel spacers are a bandaid for a larger issue. While a CAD isnt the best method its much better than running CA with a huge angle. At $190 its much cheaper option then long arms.
Oh come one I love some good physics talk. And I mentioned the angle in the second part of my post. If you have two arms one long and one short, given the same lift height the angle will be less with a long arm. Also the longer arm puts more leverage at the spring so it can move better. There is more to it but those are the basics.
Senior Member
Joined: Jul 2010
Posts: 997
Likes: 1
From: Long Island NY
Year: 2000
Model: Cherokee
Gotcha. It is a indepth subject. I was just trying to cover the basics to give a general idea on theory. Practical applications will vary for different reasons.
Junior Member
Joined: May 2008
Posts: 15,016
Likes: 11
From: +34° 25' 35.67", -81° 21' 12.04"
Year: 1993
Engine: 4.0
It also uses a 14mm bolt instead of the stock 10mm bolt.
Junior Member
Joined: Dec 2015
Posts: 41
Likes: 38
From: California

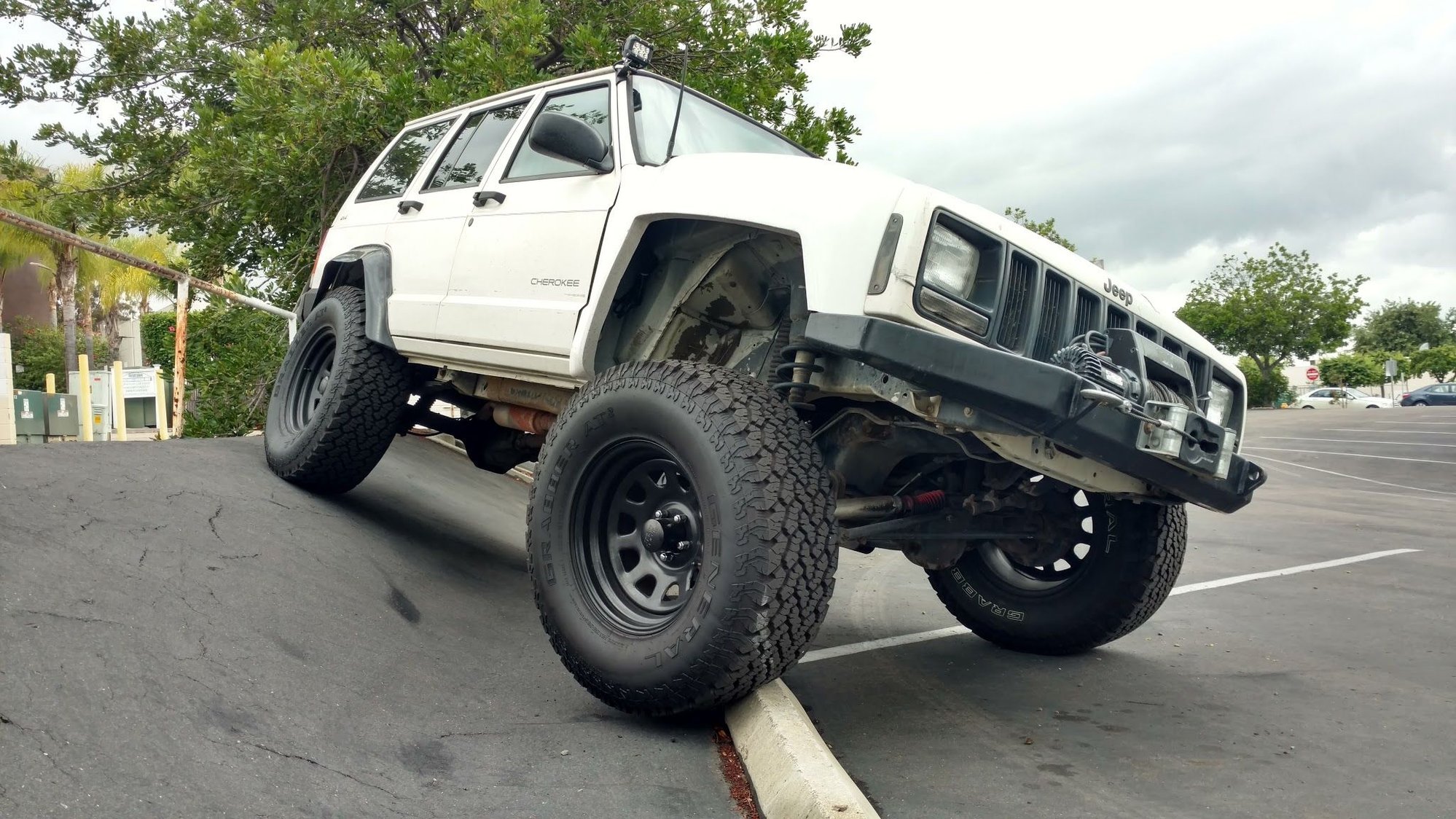

CAD on 31s stuffed and limited by fenders.

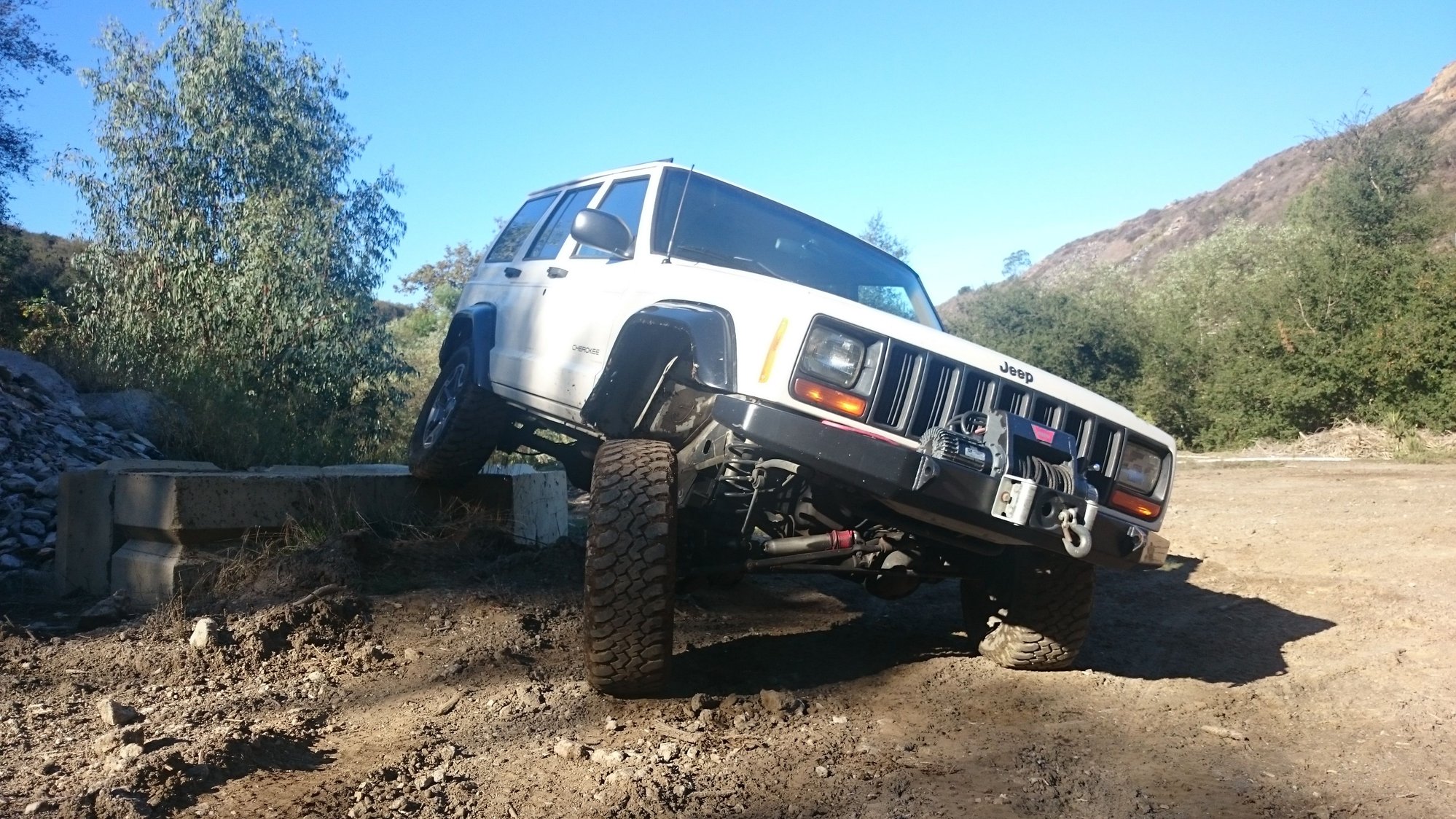

again CAD now 35s and able to stuff them fine. But now running into brake line limitations. New lines going on this week can update if anyone is intrested. CAD have more than enough flex. Keep in mind I can stuff and droop those 35's with only a 4.5 lift setup. But, I do have the fancy adjustable arms and bars and such from metalcloak. Billstein shocks forgot length. You get the idear.
