Apr 8, 2018 | 11:25 AM

#16

freegdr

CF Veteran

Joined: Mar 2010

Posts: 47,923

Likes: 38

From: Broward County Fl.

Year: 1989 xj sport 2dr

Model: Cherokee

Engine: 12 hole bosch Injectors

Axle seem to be off center some still also

Apr 8, 2018 | 11:32 AM

#17

4WD4EVER

CF Veteran

Joined: Sep 2012

Posts: 1,623

Likes: 13

From: In a large sandbox

Year: 1998

Engine: 4.0

Quote:

Originally Posted by freegdr

Axle seem to be off center some still also

With those control arm angles, no doubt! Lol! May need an adj track bar too if it doesn't already have one. Been there, done that.

Apr 8, 2018 | 11:32 AM

#18

99xjjunky

Thread Starter

Member

Joined: Feb 2018

Posts: 111

Likes: 0

Model: Cherokee(SJ)

Quote:

Originally Posted by 4WD4EVER

Understood. Are your current coils the 240lb/in rate? That is why. That is a very firm coil rate for a relatively light-weight vehicle.

I have the RE 3.5" Super-Ride on mine and it took some finessing to get it where I wanted it, including the CAD's ( I'm using Rocky Road Outfitters). Trust me, get the control arm angles correct and it will ride, handle and sound much better. With suspensions, geometry is everything.

yes I believe they’re the 240lb coils I’ll have to look into the CAD’s

Apr 8, 2018 | 11:37 AM

#19

4WD4EVER

CF Veteran

Joined: Sep 2012

Posts: 1,623

Likes: 13

From: In a large sandbox

Year: 1998

Engine: 4.0

Quote:

Originally Posted by 99xjjunky

yes I believe they’re the 240lb coils I’ll have to look into the CAD’s

. You'll be glad you did. It'll become a different beast if you do it right. As it is, it's just beating itself to death and it will wear components out prematurely.

Apr 8, 2018 | 12:00 PM

#20

99xjjunky

Thread Starter

Member

Joined: Feb 2018

Posts: 111

Likes: 0

Model: Cherokee(SJ)

Quote:

Originally Posted by 4WD4EVER

With those control arm angles, no doubt! Lol! May need an adj track bar too if it doesn't already have one. Been there, done that.

I do have an adjustable track bar and I believe it’s all centered. I’ll have to re check. I didn’t think I need drop brackets because most say 4.5” or higher of lift.

Apr 8, 2018 | 12:08 PM

#21

4WD4EVER

CF Veteran

Joined: Sep 2012

Posts: 1,623

Likes: 13

From: In a large sandbox

Year: 1998

Engine: 4.0

Quote:

Originally Posted by 99xjjunky

I do have an adjustable track bar and I believe it’s all centered. I’ll have to re check. I didn’t think I need drop brackets because most say 4.5” or higher of lift.

Understood. You clearly do need them though; the pix and your description the truth. Alternatively, you could go LA but I'll leave comments on that to people with experience with LA's. Just a thought.

Apr 8, 2018 | 12:13 PM

#22

freegdr

CF Veteran

Joined: Mar 2010

Posts: 47,923

Likes: 38

From: Broward County Fl.

Year: 1989 xj sport 2dr

Model: Cherokee

Engine: 12 hole bosch Injectors

Quote:

Originally Posted by 99xjjunky

I do have an adjustable track bar and I believe it’s all centered. I’ll have to re check. I didn’t think I need drop brackets because most say 4.5” or higher of lift.

Post pic from front of XJ.

Apr 8, 2018 | 03:57 PM

#23

Martlor13

CF Veteran

Joined: Feb 2016

Posts: 3,683

Likes: 8

From: Northern New Mexico

Year: 1999

Model: Cherokee

Engine: 4.0

Quote:

Originally Posted by 99xjjunky

I do have an adjustable track bar and I believe it’s all centered. I’ll have to re check. I didn’t think I need drop brackets because most say 4.5” or higher of lift.

with that re 3.5 inch your probably sitting at 4.5 inches lol

Apr 9, 2018 | 03:24 PM

#24

99xjjunky

Thread Starter

Member

Joined: Feb 2018

Posts: 111

Likes: 0

Model: Cherokee(SJ)

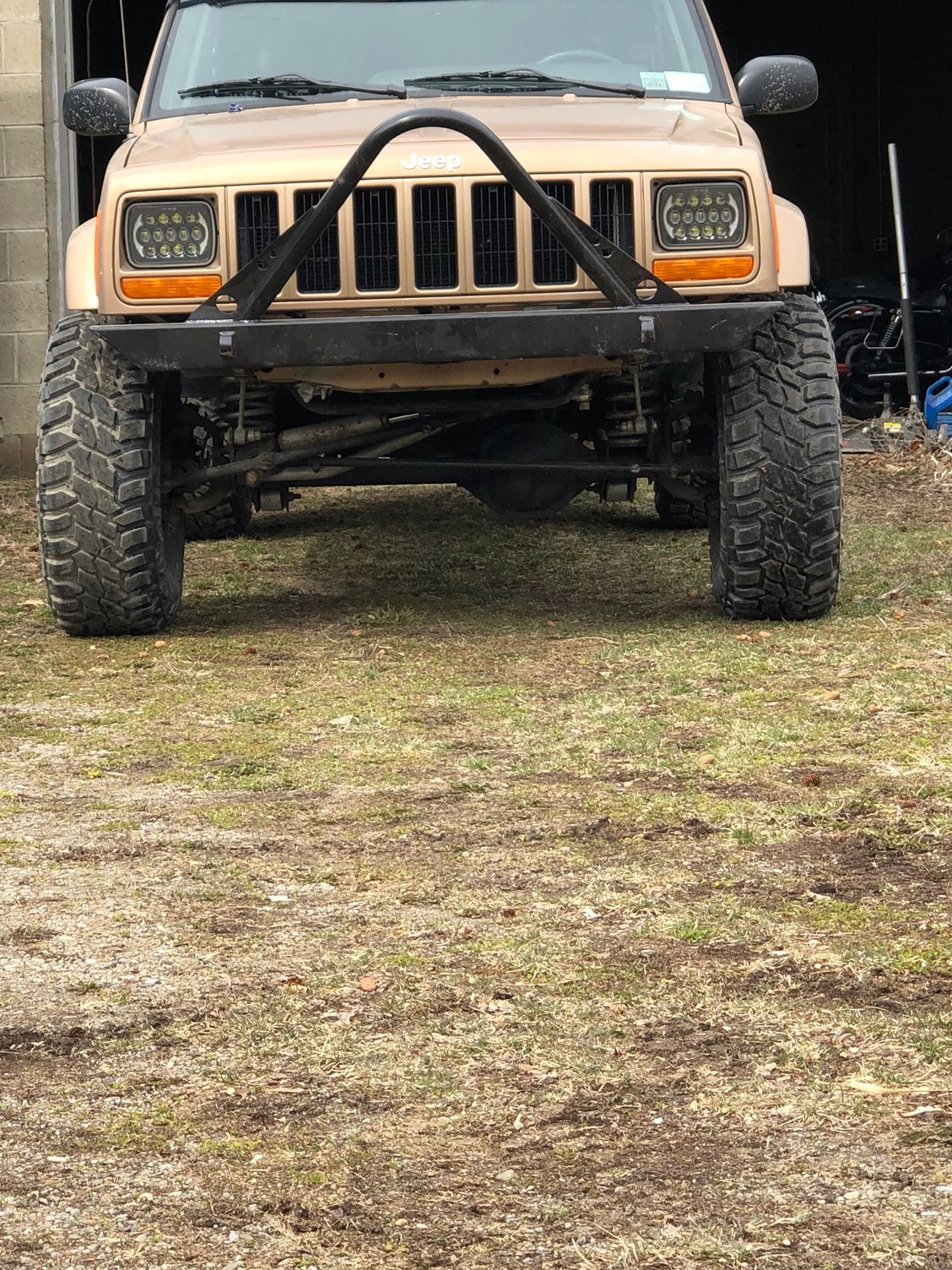

Here’s a picture of the front of the Jeep. The axles appears to be centered, at least to my eyes it is.

Apr 9, 2018 | 03:29 PM

#25

unidentifiedbomb

CF Veteran

Joined: May 2011

Posts: 6,098

Likes: 250

From: DE

Year: 1988

Model: Cherokee

Engine: I6 4.0

Measure from the inner fender to the middle of the tire on both sides to see if they're even.

Apr 9, 2018 | 03:39 PM

#26

99xjjunky

Thread Starter

Member

Joined: Feb 2018

Posts: 111

Likes: 0

Model: Cherokee(SJ)

I will here in just a bit. Like I said though this noise was happening before I had this lift installed, on the previous rough country 3”. I changed over to this lift and it still happens. It’s something in how the lower spring perch and the coil spring are hitting each other and binding

Apr 9, 2018 | 03:56 PM

#27

freegdr

CF Veteran

Joined: Mar 2010

Posts: 47,923

Likes: 38

From: Broward County Fl.

Year: 1989 xj sport 2dr

Model: Cherokee

Engine: 12 hole bosch Injectors

Quote:

Originally Posted by 99xjjunky

Here’s a picture of the front of the Jeep. The axles appears to be centered, at least to my eyes it is.

Looks good here also.

Apr 10, 2018 | 01:43 PM

#28

5-Speed

::CF Moderator::

Joined: Dec 2016

Posts: 3,538

Likes: 416

From: SoCal

Year: 1987

Model: Cherokee (XJ)

Engine: 4.0

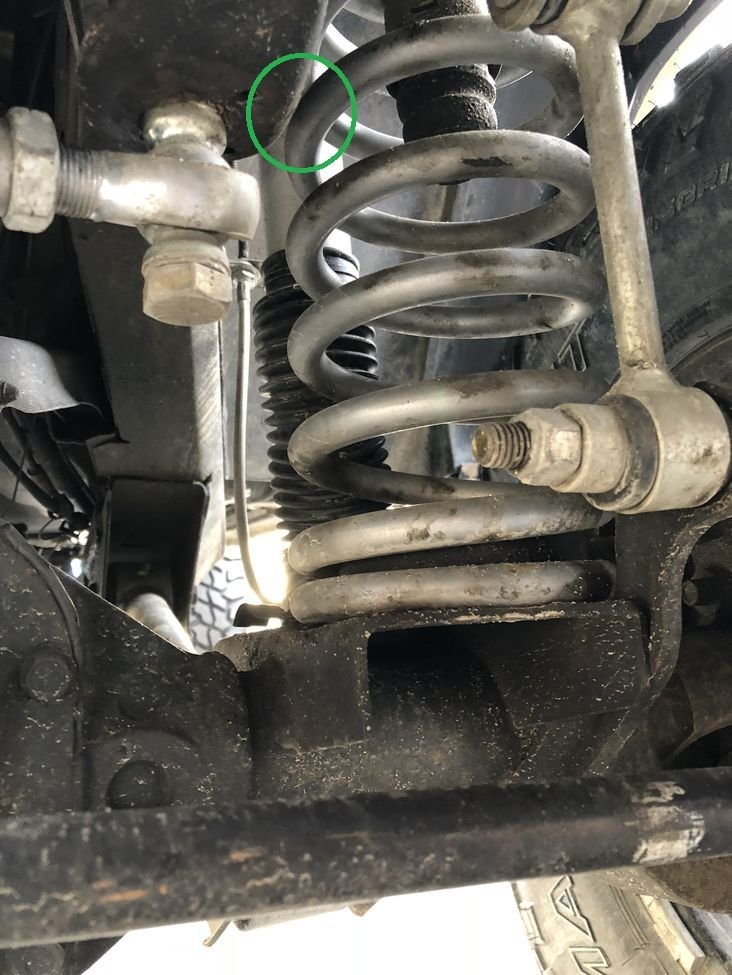

Have you checked to see if the spring is rubbing here? Looks to be pretty close from this angle.

Apr 10, 2018 | 01:52 PM

#29

99xjjunky

Thread Starter

Member

Joined: Feb 2018

Posts: 111

Likes: 0

Model: Cherokee(SJ)

Quote:

Originally Posted by 5-Speed

Have you checked to see if the spring is rubbing here? Looks to be pretty close from this angle.

didn’t even notice that. I will look if it is what would be the fix?

Edit: just checked and it’s not rubbing anywhere. There’s more space there than the picture shows

Apr 10, 2018 | 01:57 PM

#30

5-Speed

::CF Moderator::

Joined: Dec 2016

Posts: 3,538

Likes: 416

From: SoCal

Year: 1987

Model: Cherokee (XJ)

Engine: 4.0

Adjust the track bar. As in, shorten it up to move it more towards the drivers side.
