Instrument panel LEDs
So I just got the 10 blue LEDs to put in the instrument panel so my Jeep can be that extra bit sexy and chic.... Exciting, right?
They are to be more practical than the no lights I have now so I am excited to be able to see my dash at night.
What I would like to ask is if the instrument panel has any markings for polarity? Incandescent lights can be either direction but these LEDs will need to go in only one way and I don't want to get them all put in one way only to find out they needed to go the opposite way...
If you have LEDs in your instrument panel, what did you do to ensure proper polarity?
They are to be more practical than the no lights I have now so I am excited to be able to see my dash at night.
What I would like to ask is if the instrument panel has any markings for polarity? Incandescent lights can be either direction but these LEDs will need to go in only one way and I don't want to get them all put in one way only to find out they needed to go the opposite way...
If you have LEDs in your instrument panel, what did you do to ensure proper polarity?
03-20-2015, 02:45 PM
#2
Junior Member
Join Date: Dec 2014
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000 SE
Model: Cherokee
Engine: 4.0
Trial and error. But hey the bright side is your bound to get half of them right the first time. I did mine and my sons 2000 xj. put them in and just slide the panel back in enough to turn on your lights.....it helps if its dark. If you plug them in wrong nothing happens to them they just don't come on.
You can also do the shifter panel and the transfer case shift panel. I also did the climate controls but those are tricky and require a different bulb and some serious finess.
Then adjusted my Kenwood head unit to color match the LEDs. Looks cool at night.
Dome lights front and back, license plate light and backup lights are done in white.
You can also do the shifter panel and the transfer case shift panel. I also did the climate controls but those are tricky and require a different bulb and some serious finess.
Then adjusted my Kenwood head unit to color match the LEDs. Looks cool at night.
Dome lights front and back, license plate light and backup lights are done in white.
Last edited by Skb2706; 03-20-2015 at 02:51 PM.
03-20-2015, 06:10 PM
#4
CF Veteran
Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes
on
18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter

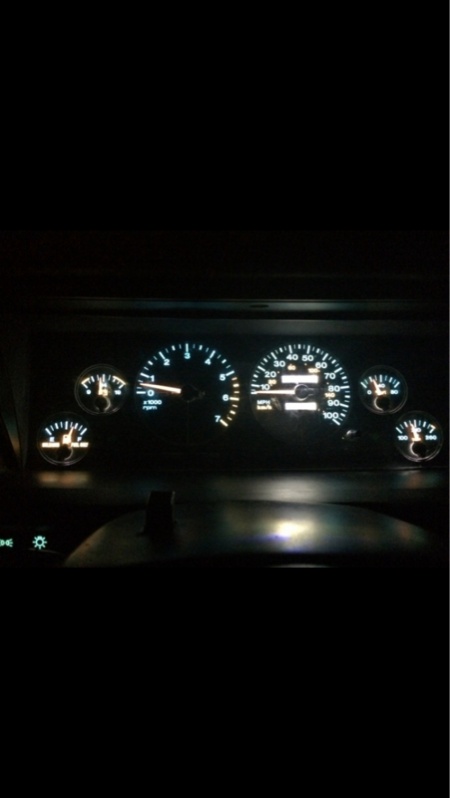

I did the blue LEDs in my cluster...and quickly changed them to white. Make sure they light up before screwing your dash all back together.
03-20-2015, 06:52 PM
#5
Senior Member
Thread Starter
Join Date: Sep 2014
Location: Phoenix, A-to-Z
Posts: 896
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
I had to run a jumper to the wire that powers the lights in the instrument panel because the PO had done some weird stuff in there with the wiring and those lights never worked. Now they are run off a switch until I can decide what else to do with them.
All the lights are working now but it is too light outside still to see how well they work. It will certainly be better than the no lights that were there...
While trying to do this, the speddo cable became a huge obstacle and I couldn't get at the screws on it to remove it. Instead, I just pulled the bulbs out the back while it was still in the dash. As I was doing this, however, the raw speedo cable came out of the tube it was in and I thought I had broken it... Fortunately it worked again when I put it all back together.
Next up will be the other lights in the shifter area and courtesy lamps. Good as new..almost!
All the lights are working now but it is too light outside still to see how well they work. It will certainly be better than the no lights that were there...
While trying to do this, the speddo cable became a huge obstacle and I couldn't get at the screws on it to remove it. Instead, I just pulled the bulbs out the back while it was still in the dash. As I was doing this, however, the raw speedo cable came out of the tube it was in and I thought I had broken it... Fortunately it worked again when I put it all back together.
Next up will be the other lights in the shifter area and courtesy lamps. Good as new..almost!
03-20-2015, 08:38 PM
#6
I had to run a jumper to the wire that powers the lights in the instrument panel because the PO had done some weird stuff in there with the wiring and those lights never worked. Now they are run off a switch until I can decide what else to do with them.
All the lights are working now but it is too light outside still to see how well they work. It will certainly be better than the no lights that were there...
While trying to do this, the speddo cable became a huge obstacle and I couldn't get at the screws on it to remove it. Instead, I just pulled the bulbs out the back while it was still in the dash. As I was doing this, however, the raw speedo cable came out of the tube it was in and I thought I had broken it... Fortunately it worked again when I put it all back together.
Next up will be the other lights in the shifter area and courtesy lamps. Good as new..almost!
All the lights are working now but it is too light outside still to see how well they work. It will certainly be better than the no lights that were there...
While trying to do this, the speddo cable became a huge obstacle and I couldn't get at the screws on it to remove it. Instead, I just pulled the bulbs out the back while it was still in the dash. As I was doing this, however, the raw speedo cable came out of the tube it was in and I thought I had broken it... Fortunately it worked again when I put it all back together.
Next up will be the other lights in the shifter area and courtesy lamps. Good as new..almost!
Trending Topics
03-20-2015, 09:24 PM
#8
Senior Member
Thread Starter
Join Date: Sep 2014
Location: Phoenix, A-to-Z
Posts: 896
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
...as a side note, I had to modify the bulbs to fit. These were tiny little things and I had to pull the leads out to the sides to make contact with the leads in the socket. Not the right bulbs but they do work...
03-20-2015, 09:50 PM
#9
Senior Member
Thread Starter
Join Date: Sep 2014
Location: Phoenix, A-to-Z
Posts: 896
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0

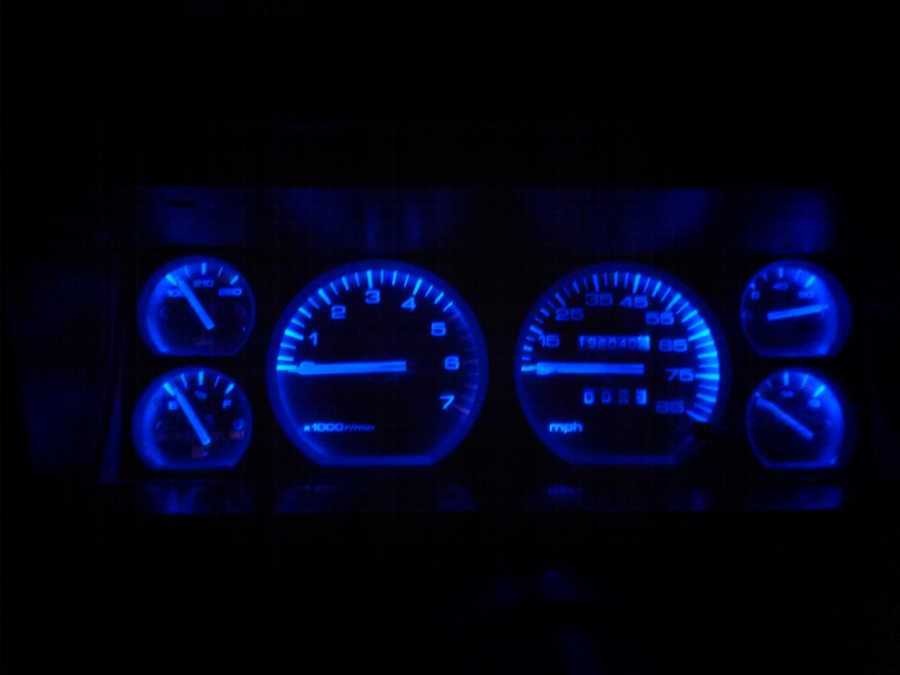

One interesting thing about the blue LEDs is that the red metric markings are invisible in the blue light. Who needs that metric crap anyway?
(It is most frustrating having an equal ratio of metric and SAE nuts and bolts in this RENIX.)
(It is most frustrating having an equal ratio of metric and SAE nuts and bolts in this RENIX.)
03-21-2015, 12:59 PM
#11
Senior Member
Thread Starter
Join Date: Sep 2014
Location: Phoenix, A-to-Z
Posts: 896
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
I can't dim them because I have deleted the factory headlight switch and am using a switch panel instead. It would be a simple thing to put an inline variable resistor before the lights so I could dim them but I am OK with how they are.
03-22-2015, 11:06 AM
#12
Newbie
Join Date: Dec 2012
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0L
I had put green lights in my 91 xj and you could NOT dim them even with the headlight switch.. they take so little power that the lowest setting on the dimmer was still enough power to fully light them..
03-22-2015, 08:46 PM
#14
CF Veteran
Join Date: Mar 2012
Location: Richmond, VA
Posts: 1,369
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
The higher end LEDs will work with the dimmer, the cheapo Chinese ones tend to be just on/off.
Pretty much everything is a 134 bulb on the interior of an XJ. Dome light is festoon, the HVAC controls are 74s as are the indicators on the left for 4WD CEL ect but those really aren't worth swapping due to how they're backlit. Everything else is 134, dash, glovebox, courtesy floor lighting, shifters, ect.
Pretty much everything is a 134 bulb on the interior of an XJ. Dome light is festoon, the HVAC controls are 74s as are the indicators on the left for 4WD CEL ect but those really aren't worth swapping due to how they're backlit. Everything else is 134, dash, glovebox, courtesy floor lighting, shifters, ect.
03-26-2015, 03:55 PM
#15
Seasoned Member
Join Date: Apr 2011
Location: Yuma
Posts: 420
Likes: 0
Received 1 Like
on
1 Post
Year: 1993
Model: Cherokee
Engine: 4.0, APN header & 2.5" exhaust

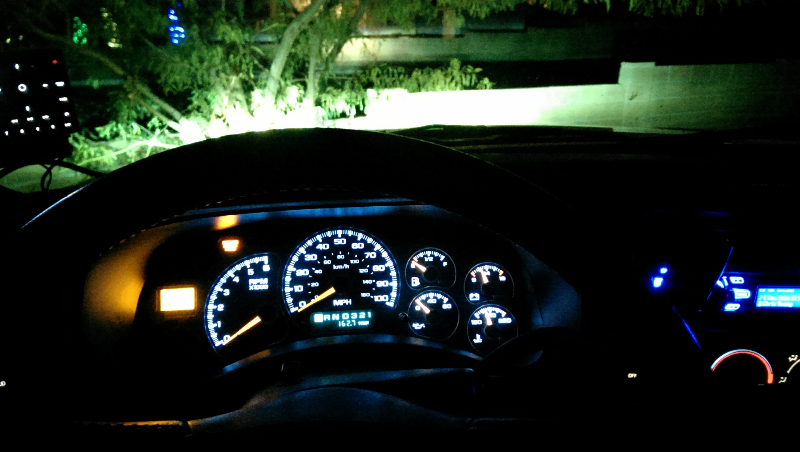

I never got the leds in my Cherokee's dash to dim very much. The next set I did in my Sierra were a different type of bulb that dimmed just like factory bulbs. I used a cool white color.
