Hot to guide to weld up D35?
12-23-2011, 11:44 AM
#1
Member
Thread Starter
Join Date: Dec 2009
Location: Mid MO
Posts: 170
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99xj 97TJ 96XJ, 87 woody
Model: Cherokee
Engine: 4.0L
Hot to guide to weld up D35?
I have never welded spider gears before. However I have welded everything from trailers to combines.
Does any one have a how to guide to weld up a d35?
My project jeep "RED" is just a off road toy. No street running.
It's on 31's. I would like to build a LCOG Jeep. No lift. With future plans off stuffing 33's.
Does any one have a how to guide to weld up a d35?
My project jeep "RED" is just a off road toy. No street running.
It's on 31's. I would like to build a LCOG Jeep. No lift. With future plans off stuffing 33's.
12-23-2011, 11:46 AM
#2
Junior Member
Why don't you find a nice 8.25 to slap in there and buy a mini-spool?
If you're set on not spending a dime then grab yourself some 1/2" nuts, stick them between the spider gears and weld the whole thing into a solid ball. Don't catch the oil on fire and don't blow yourself up welding under the gas tank. I would suggest removing the carrier to do this. If you must.
If you're set on not spending a dime then grab yourself some 1/2" nuts, stick them between the spider gears and weld the whole thing into a solid ball. Don't catch the oil on fire and don't blow yourself up welding under the gas tank. I would suggest removing the carrier to do this. If you must.
12-23-2011, 12:34 PM
#3
Member
Thread Starter
Join Date: Dec 2009
Location: Mid MO
Posts: 170
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99xj 97TJ 96XJ, 87 woody
Model: Cherokee
Engine: 4.0L
I do have a two other 8.25's. However that plan will be for the future if needed. I would like to do the D35 as I have never done this before. More of a learning experience than anything. If the 35 ever messes up I can put in the 8.25 at that time. This is off rod XJ only. My other xj's are for the road.
12-23-2011, 01:10 PM
#4
CF Veteran
Join Date: Feb 2010
Location: Soddy Daisy TN
Posts: 5,420
Likes: 0
Received 0 Likes
on
0 Posts
Year: 97
Model: Cherokee
Engine: 4.0L
Why don't you find a nice 8.25 to slap in there and buy a mini-spool?
If you're set on not spending a dime then grab yourself some 1/2" nuts, stick them between the spider gears and weld the whole thing into a solid ball. Don't catch the oil on fire and don't blow yourself up welding under the gas tank. I would suggest removing the carrier to do this. If you must.
If you're set on not spending a dime then grab yourself some 1/2" nuts, stick them between the spider gears and weld the whole thing into a solid ball. Don't catch the oil on fire and don't blow yourself up welding under the gas tank. I would suggest removing the carrier to do this. If you must.
I use nickel rods for welding spiders and cast metal. Weld spider to spider and spider to case all the way around. Not just small welds between the spiders. My 60 looks like a soft ball is stuffed in it but if I break a shaft I don't have to fish out a c-clip to swap a shaft, so leave room to take them and the center pin out.
12-23-2011, 02:53 PM
#5
Member
Thread Starter
Join Date: Dec 2009
Location: Mid MO
Posts: 170
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99xj 97TJ 96XJ, 87 woody
Model: Cherokee
Engine: 4.0L
You won't find a spool for the 8.25 because of the c-clips.
I use nickel rods for welding spiders and cast metal. Weld spider to spider and spider to case all the way around. Not just small welds between the spiders. My 60 looks like a soft ball is stuffed in it but if I break a shaft I don't have to fish out a c-clip to swap a shaft, so leave room to take them and the center pin out.
I use nickel rods for welding spiders and cast metal. Weld spider to spider and spider to case all the way around. Not just small welds between the spiders. My 60 looks like a soft ball is stuffed in it but if I break a shaft I don't have to fish out a c-clip to swap a shaft, so leave room to take them and the center pin out.

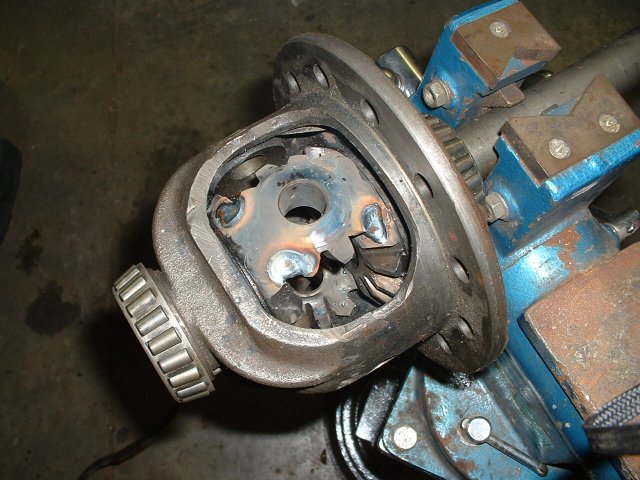

Maybe if someone had some pics of where they put the weld and heat.
Trending Topics
12-23-2011, 03:52 PM
#11
Member
Thread Starter
Join Date: Dec 2009
Location: Mid MO
Posts: 170
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99xj 97TJ 96XJ, 87 woody
Model: Cherokee
Engine: 4.0L
12-23-2011, 04:09 PM
#12
Member
Thread Starter
Join Date: Dec 2009
Location: Mid MO
Posts: 170
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99xj 97TJ 96XJ, 87 woody
Model: Cherokee
Engine: 4.0L
It's odd I had to go to google to find this thread Ihttps://www.cherokeeforum.com/f2/should-i-weld-rear-spider-gears-my-xj-30351/
12-23-2011, 06:58 PM
#14
Member
Thread Starter
Join Date: Dec 2009
Location: Mid MO
Posts: 170
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99xj 97TJ 96XJ, 87 woody
Model: Cherokee
Engine: 4.0L
That is what I was looking for. I was wondering how to protect from weld splatter. Aluminum foil, another use..
