Hood Vents
#1
Senior Member
Thread Starter
Join Date: Oct 2011
Posts: 844
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Hood Vents
Who all has done hood vents? A few questions I have, first off what did you use, where did you put them and how do you keep rain out? I'm considering doing this for a couple of reasons, I have never over heated my jeep, but it does run on the warm side, also I'm considering putting a trans cooler in, the most common place I have saw those mounted are in front of the radiator, which in turn i am assuming is going to make my engine temp go up, so with all that said I'm looking to vent the hood in some fashion.
#2
Junior Member
Join Date: Dec 2013
Location: Central Pennsylvania
Posts: 42
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6
I've seen vents come from all over. An easy way would be to get them from a JY, chances are those would come with a drip pan that would funnel the water away from all the electronics to a part of the bay that doesn't mind getting wet. Other guys have have used things like cake pans or vents from the side of a backyard grill, and bedlined
#3
Junior Member
Join Date: Dec 2013
Location: Central Pennsylvania
Posts: 42
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6
I've seen vents come from all over. An easy way would be to get them from a JY, chances are those would come with a drip pan that would funnel the water away from all the electronics to a part of the bay that doesn't mind getting wet. Other guys have have used things like cake pans or vents from the side of a backyard grill, and bedlined them or something. As for those, they should be ok without a drip pan as long as there are no sensitive electronics directly under them, and you keep all your connections packed with Di - electric grease. I've seen still other vents done by raising the rear of the hood, closest to the cowl. Me personally I found a pair of vents on some beat - up tuner at the JY.
#4
Senior Member
Join Date: Oct 2011
Location: Longview, TX
Posts: 689
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L

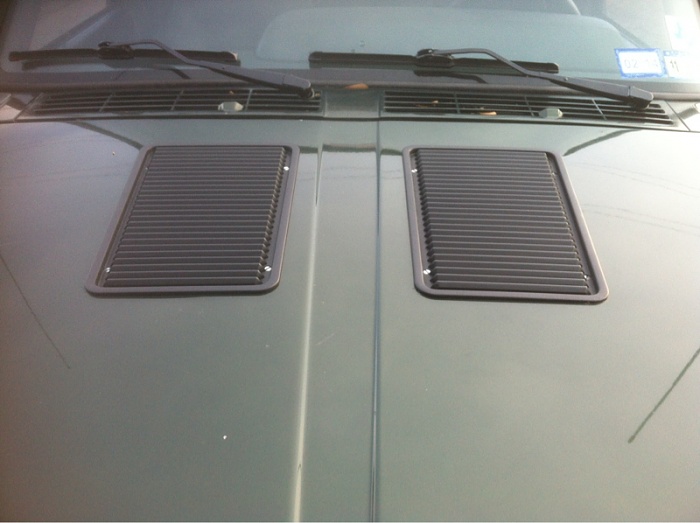

I used the vents off of a turbo Chrysler Lebaron, not sure what year.... I do not have any drip pans, but I have a healthy coating of dielectric grease on all of the connections in the engine bay. No problems thus far, and it has been through a few downpours.
Not a great photo, I'll try to get a better one later if you want to see them.
Not a great photo, I'll try to get a better one later if you want to see them.
#6
Senior Member
Thread Starter
Join Date: Oct 2011
Posts: 844
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I used the vents off of a turbo Chrysler Lebaron, not sure what year.... I do not have any drip pans, but I have a healthy coating of dielectric grease on all of the connections in the engine bay. No problems thus far, and it has been through a few downpours. Not a great photo, I'll try to get a better one later if you want to see them.
#7
CF Veteran
Join Date: Jul 2012
Location: San Antonio, TX
Posts: 4,104
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
Ive got 280z hood vents. I live in texas to keep the water out but all my connections are packed with dielectric grease.
If theres going to be a storm ill cover then up with my floor mat and a couple bricks
As for the trans cooler, theres some openings behind the bumper in the fan clutch side below the radiator. Thats where I have mine, its a stock zj cooler, my taurus fan hangs down low enough to suck air thru it
If theres going to be a storm ill cover then up with my floor mat and a couple bricks
As for the trans cooler, theres some openings behind the bumper in the fan clutch side below the radiator. Thats where I have mine, its a stock zj cooler, my taurus fan hangs down low enough to suck air thru it
Trending Topics
#9
Member
Join Date: Jun 2011
Location: Lubbock, TX
Posts: 165
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
I've got some that are riveted to the hood. I've never really worried about the engine bay getting wet. Run through enough stuff I generally force water out of the louvers and back at the windshield. Works fine in snow and generally will ice over until the engine is turned on and the fan behind blowing air through them.
#10
CF Veteran
Join Date: Jul 2012
Location: San Antonio, TX
Posts: 4,104
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
I almost got some house vents and rigged up a cable to close them but that seemed like to much effort for the no rain we get
#11
Seasoned Member
Join Date: Sep 2011
Location: Oregon
Posts: 278
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: Inline Six
I grabbed some Lebaron Hood Vents from my local junk yard. They were around $10. For spacing, I placed them just far enough from the back so when I cut through the hood I didnt hit the rear cross member. I secured them on with screws through the vents and into aluminum 1/2" x 1 1/2" angle brackets. Here is a pic of the final product. when I get home later tonight Ill see if I can snap a photo of the bracket for you. Its been a nice upgrade for me and the water has not played an effect on my engine. I have gone through all my connections though and put dielectric grease on all of them.
As a side note, it has been fun to see the hot air rise from the engine when stopped.
As a side note, it has been fun to see the hot air rise from the engine when stopped.
#12
CF Veteran
Join Date: Feb 2010
Location: Missoula, MT
Posts: 3,353
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: Golen 4.6 Stroker, AFE Headers, 62mm TB, 24 LB Injectors, Brown Dog kit, HF Cat, 3" Exhaust
I have a set of Gen-Right ones. (rivet on). They work great when your going really slow or stopped- you can see the heat pour out of them. Keeps it a few degrees cooler. I have had it buried under snow and driven it through huge rain storms. Car washes as well. I just used a little dielectric grease and have not had a problem. Think they have been on there for around 3 years.
#13
CF Veteran
Join Date: Feb 2010
Location: Missoula, MT
Posts: 3,353
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: Golen 4.6 Stroker, AFE Headers, 62mm TB, 24 LB Injectors, Brown Dog kit, HF Cat, 3" Exhaust
Sorry don't have a closeup- I took that a few years ago when I painted the grill.
#14
Member
Join Date: Jun 2011
Location: Lubbock, TX
Posts: 165
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
I have something similar to Ianf406's Gen-Rights. Previous owner installed them and I never have messed with them.
Please excuse the fact my hood's clear coat is almost gone (seems like a common problem amongst hunter green XJs) and the fact that RF wise the Jeep is naked (I was about to pull it into the garage for a few months so had all of the antennas either off or folded down).
Here you can just see them poking out after a decent snow storm.
I don't have anything dielectrically greased…from Texas to Colorado, water has never been a problem.
Please excuse the fact my hood's clear coat is almost gone (seems like a common problem amongst hunter green XJs) and the fact that RF wise the Jeep is naked (I was about to pull it into the garage for a few months so had all of the antennas either off or folded down).
Here you can just see them poking out after a decent snow storm.
I don't have anything dielectrically greased…from Texas to Colorado, water has never been a problem.
#15
Senior Member
Join Date: Oct 2011
Location: Longview, TX
Posts: 689
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
