Hood Spacers
#16
Seasoned Member
Join Date: Oct 2011
Location: Cumberland, Ohio
Posts: 490
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
I did mine, used 8 washers and 2 2inch long bolts, although im going to be taking a few washers back out. I noticed a small difference in running temp too. HAVE SOME HELP when doin this lol its a pain by urself.
#17
This is big for guys in the drifting community. I've never had issues with heat in my car so I've never needed to do it but this company sells fancy billet kits for Nissans. Surely they'll work for the XJ's hood. Anyone know the threading on the XJ?
http://www.gtfactory.jp/cms/page.php?11 (scroll to the bottom)
http://www.gtfactory.jp/cms/page.php?11 (scroll to the bottom)
#18
Seasoned Member
Join Date: Oct 2011
Location: Cumberland, Ohio
Posts: 490
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
lol $30.00 for hood spacers? Yes they will work but id much rather spend 50 cents on washers and bolts and call it a day
#19
#20
Seasoned Member
Join Date: Jun 2009
Location: Mid-Ohio Valley, Ohio
Posts: 302
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
does this effect the hood latch any? i want to try this, may just go with some washers for the time being. do you put the same amount of them on both bolts per side, or do you put more on the furthest back bolt than the front one?
#21
CF Veteran
Join Date: Dec 2011
Location: PA KOTUFU!
Posts: 1,777
Likes: 0
Received 16 Likes
on
15 Posts
Year: 1998
Engine: 4.0L 162,000
1" will get the hood up off the rubber seal by about 1/2".
I did temp measurements with several digital thermometers before and afterwards and it definately made a difference, like 20-30 degrees underhood temps both driving and sitting.
Pull a bolt and go to Lowe's and get one 1" longer, it's METRIC, and a stack of washers, SS if you have the $.
I did temp measurements with several digital thermometers before and afterwards and it definately made a difference, like 20-30 degrees underhood temps both driving and sitting.
Pull a bolt and go to Lowe's and get one 1" longer, it's METRIC, and a stack of washers, SS if you have the $.
#22
CF Veteran
Join Date: Oct 2011
Location: Seal Beach, CA
Posts: 4,440
Likes: 0
Received 2 Likes
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0 HO Straight Six
When I had hood spacers (which don't do much and look super funny), for some reason, it was a lot harder to pull the hood latch cable. Now I've taken out those silly spacers and put in some hood vents. Hood latch is now back to normal. Never lookin back
#23
CF Veteran
I just put my original spacers back in after making a set of 3/4"x3" ones. Made the hood too high for my tastes. Got mine at 1/2". Removed the rubber seal and bumped that shelf down a bit full length for even gap all along the opening(I can still seal it if needed). Adjusted the hood all the way forward and all is good. Hood latch works as normal.
I don't know what the max temp gets to under the hood but I can tell you it cooked the clearcoat in the same spots on both sides after taking the pad out that's under the hood about a yr ago.
I may go to louvers at some point.
I don't know what the max temp gets to under the hood but I can tell you it cooked the clearcoat in the same spots on both sides after taking the pad out that's under the hood about a yr ago.
I may go to louvers at some point.
#24
Seasoned Member
Join Date: Jun 2011
Location: San Antonio
Posts: 489
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 6 Cyl
What hood vents are those?
#26
Newbie
Join Date: Nov 2013
Location: antlers, ok
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 ho
http://www.ebay.com/itm/Jeep-XJ-Cherokee-Louvered-Hood-Panel-XJ-Hood-Vents-/251616628382?pt=Motors_Car_Truck_Parts_Accessories&hash=item3a95850e9e&vxp=mtr
I know its almost a year old but...
I know its almost a year old but...
#28
Newbie
Join Date: Feb 2019
Location: CA
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee (XJ)
Engine: 4.0
done
I know people on here have done this before (raise the back of the hood to let heat escape, kinda like a cowl hood), and have seen some Jeeps at shows with this done, just kinda looking for some info on it though, so I dont have to do trial and error.
How long and what size bolts do you get?
And
How many washers do you get?
How long and what size bolts do you get?
And
How many washers do you get?
*
#29
Junior Member
Join Date: Mar 2019
Location: Florence
Posts: 35
Likes: 0
Received 1 Like
on
1 Post
Year: 1989
Model: Cherokee (XJ)
Engine: 4.7

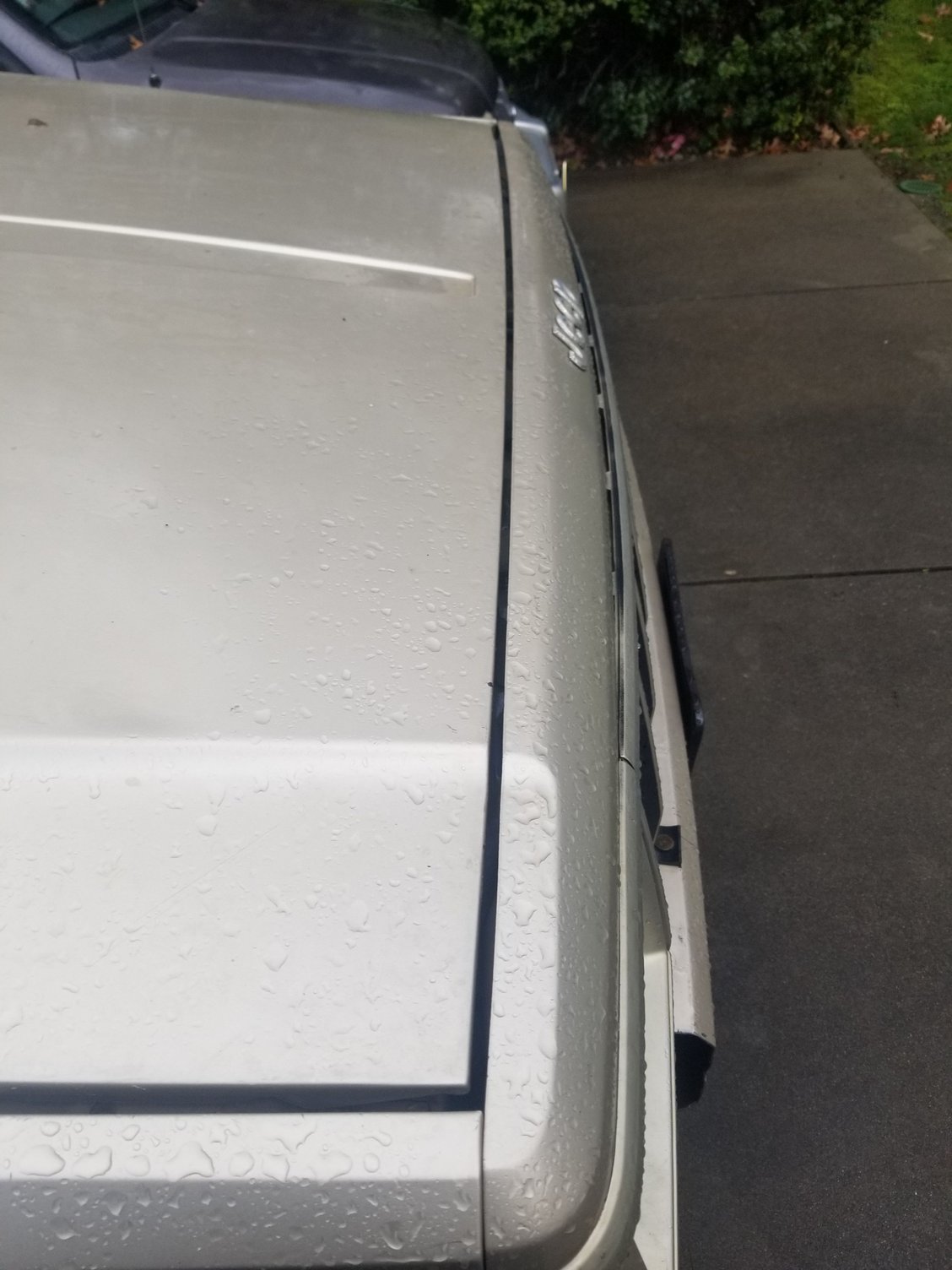

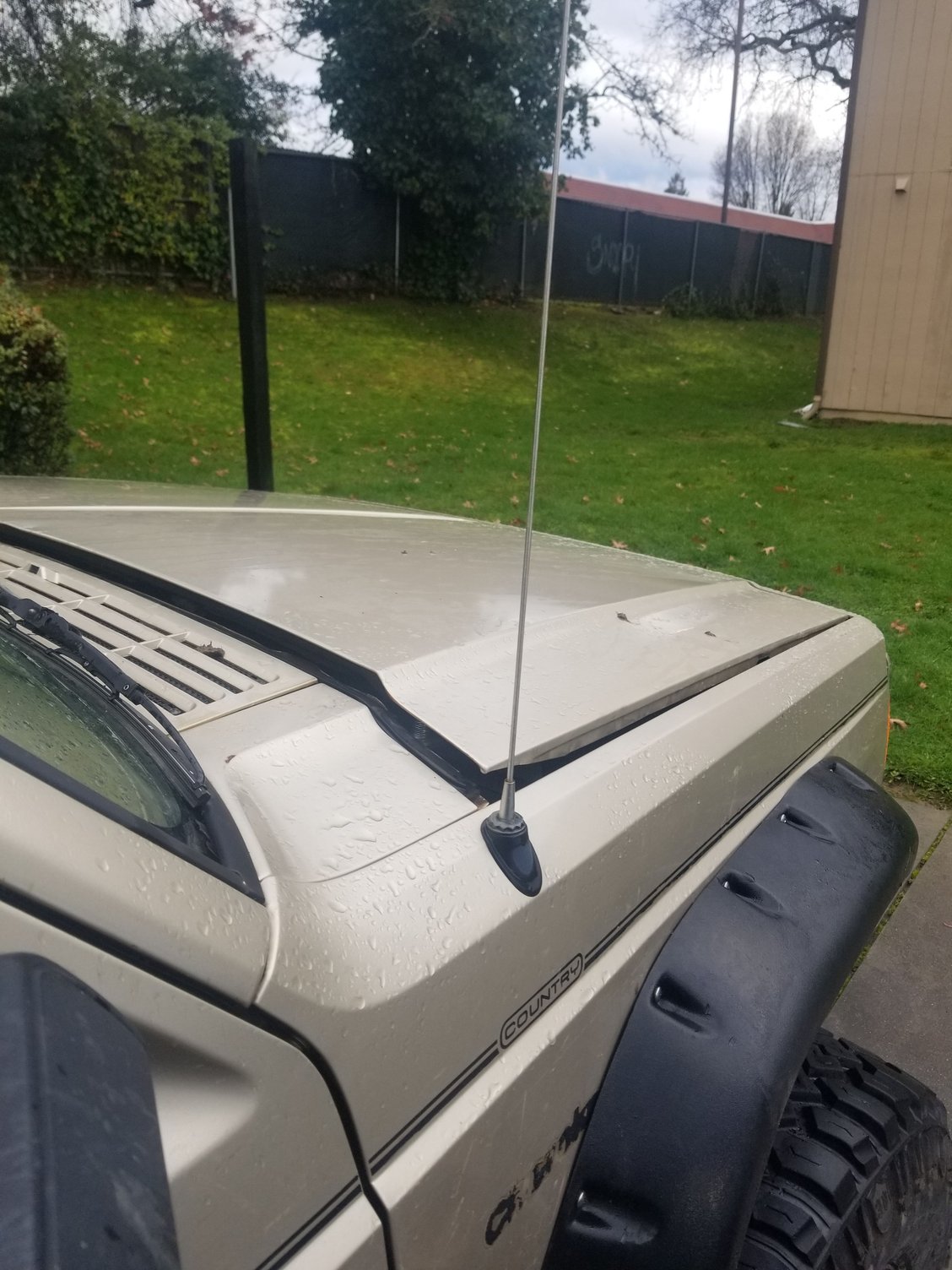

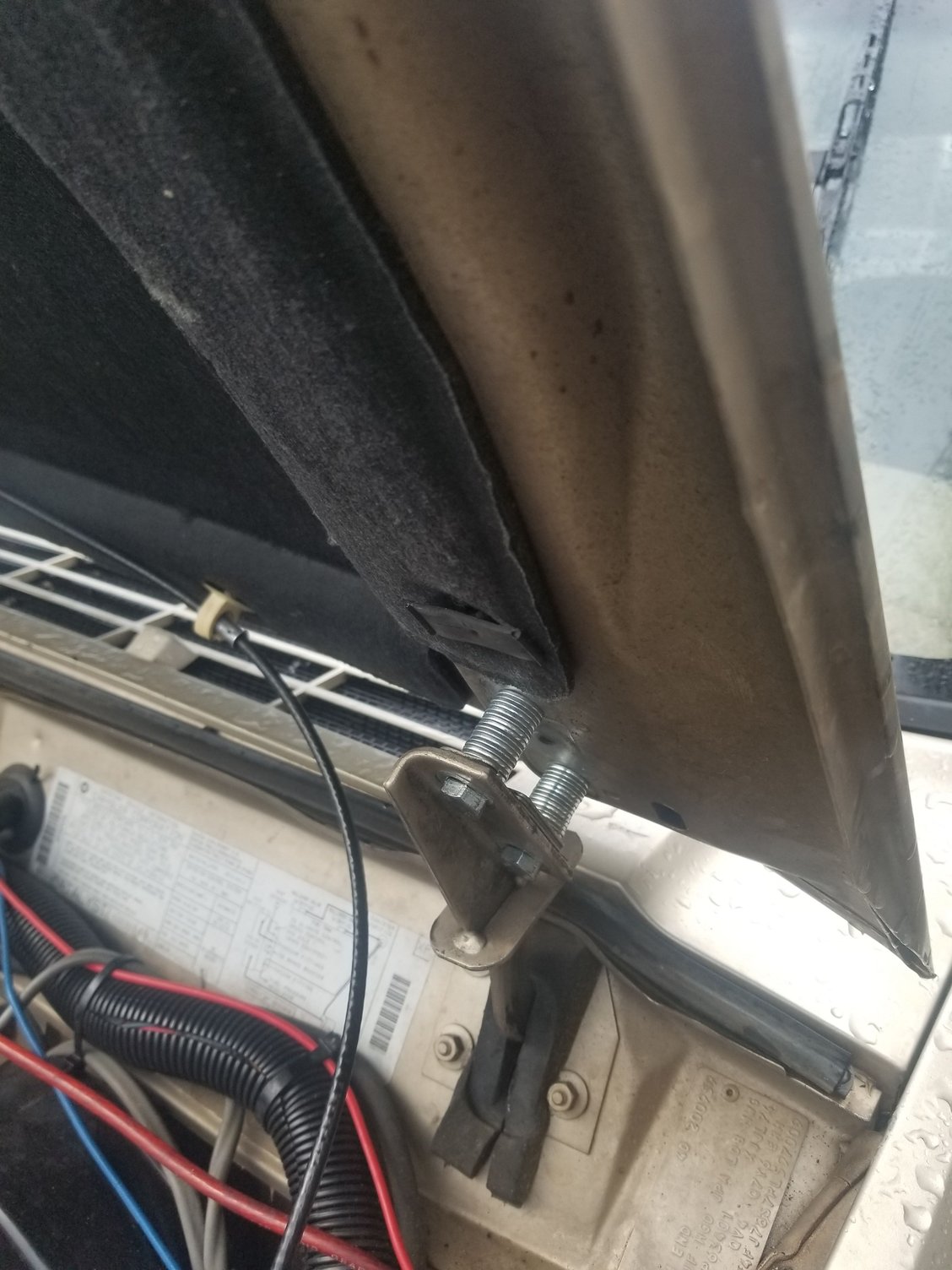

This is what i bought something like 23 dollars on ebay i think it works well ive noticed about 10 to 15 degrees difference when cruising at 45 and above and about 5 to 10 on the trail plus i think it looks kinda cool i will get pictures of the jeep later this took me all of about 45 min to do by myself and the hood looks like it was meant to be super easy in my opinion
