Help! Steering setup issues

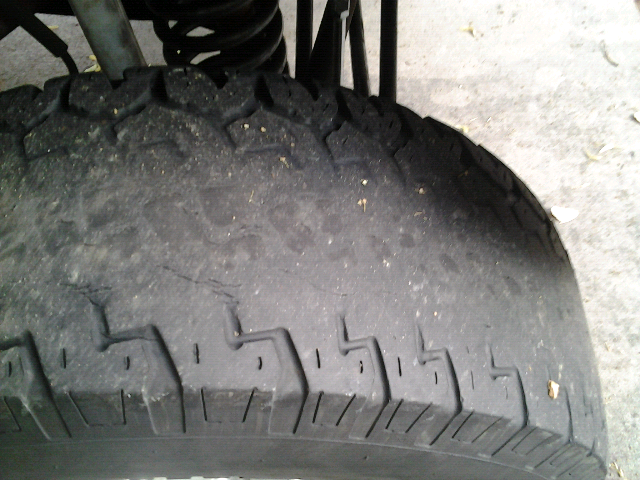

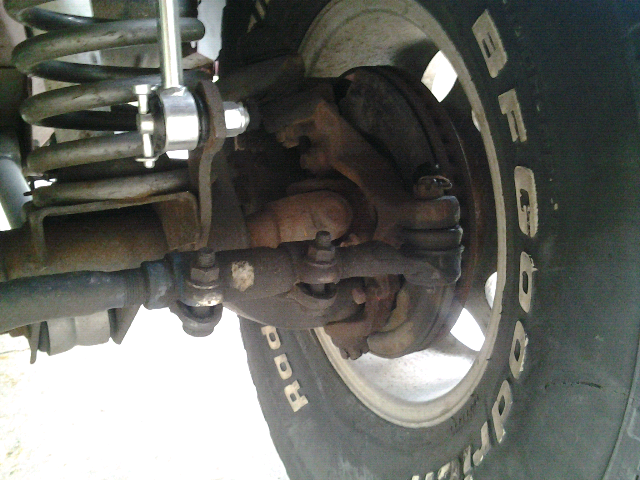

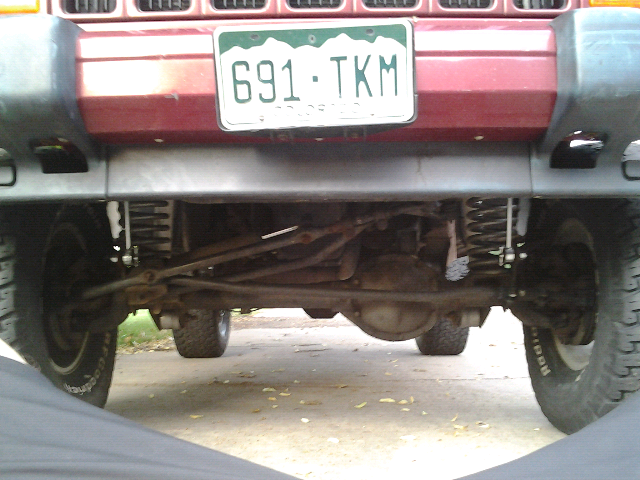

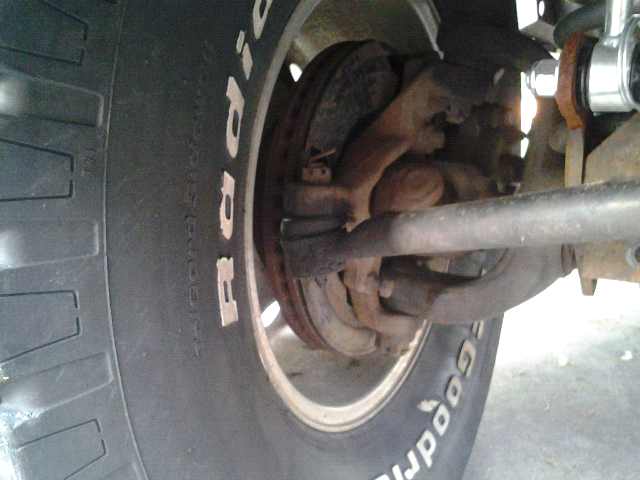

If anyone has any suggestions to my steering setup would be appreciated. I have essentially ruined my front tires in about a month and am assuming this to be the root. I upgraded with a ZJ tie rod other than that steering linkage is stock.
07-12-2012, 09:13 PM
#2
Junior Member
Thread Starter
Join Date: Feb 2012
Location: Denver, CO
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 6cyl

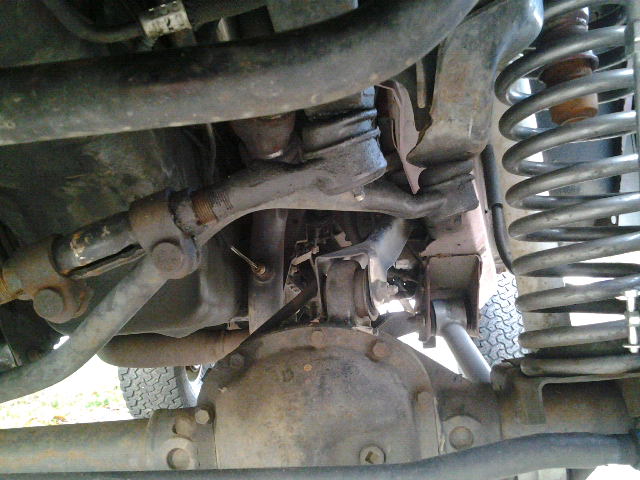

Here is the drag link attached to the pitman as well.
Also had believed that over inflation in my tires caused the wear, approx 35 psi at the time and have been aired down since to about 25 psi.
Also had believed that over inflation in my tires caused the wear, approx 35 psi at the time and have been aired down since to about 25 psi.
07-12-2012, 10:29 PM
#4
CF Veteran
Join Date: Jul 2011
Location: Oceanside So Cal
Posts: 1,045
Likes: 0
Received 1 Like
on
1 Post
Year: 88
Model: Cherokee (XJ)
Engine: 4.0 renix
check your toe settings..also the outsidde tire wear would indicate some possibly bad ball joints, our unit bearings going south.
07-12-2012, 10:46 PM
#6
Junior Member
Thread Starter
Join Date: Feb 2012
Location: Denver, CO
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 6cyl
Obviously been too long so I'll star there. Still concerned about the awkward positioning of drag link to pitman, as well as to the axle side. Would proper ligament alleviate the "stress" on those joints.
Trending Topics
07-12-2012, 10:53 PM
#8
CF Veteran
Join Date: Nov 2011
Location: State College, PA
Posts: 1,469
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 I6
it would help to know your lift setup, looks like I see aftermarket LCAs and stock uppers....how much lift? you may need a dropped pitman arm
07-12-2012, 11:03 PM
#9
Senior Member
Join Date: May 2008
Location: Michigan
Posts: 814
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Yes, If your toe setting is is too much negative or too much positive the front end more or less fights it self going down the road. This also puts a lot of extra stress on the entire steering system and front axle. You also need to have the tires set to the proper pressure, on the street I would not run a tire any lower than 30psi, any lower and the tire tends get hot and could blow out.
07-12-2012, 11:05 PM
#10
Junior Member
Thread Starter
Join Date: Feb 2012
Location: Denver, CO
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 6cyl
07-12-2012, 11:15 PM
#11
Junior Member
Join Date: Dec 2011
Location: Greeley, Colorado
Posts: 39
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L HO I6
I'm having similar issues with my tires...odd cupping wear and feathering... I checked the air pressure and it was at 35 psi so that's not the issue. Also the passenger side is wearing worse than the driver side. I think I have some alignment/ball joint/toe/camber issues lol.... The whole 9 yards of crap! Uh it never ends....
