Default Header wrap

Ok I found a nice how to for header wrap. But I lost the link, does anyone know a link to one that has the length I need to cut the pieces?
Old 05-11-2012, 10:01 PM
  #2
CF Veteran

ZINGGG's Avatar

Join Date: Oct 2011
Location: Seal Beach, CA
Posts: 4,440
Likes: 0
Received 2 Likes on 1 Post
Year: 1996
Model: Cherokee
Engine: 4.0 HO Straight Six
Default

Why are you considering wrapping them? I've read many times that it is not necessary for our Jeeps
Old 05-12-2012, 03:46 AM
  #3
Member

xjtimbo's Avatar

Join Date: Apr 2012
Location: Jacksonville, Fl
Posts: 125
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
Default

It seems like it would be a good idea because the intake manifold and exhaust manifold are on top of each other. I would think it would lower the intake temps some and cause less heat soak.
Old 05-12-2012, 07:10 AM
  #4
CF Veteran

Zack92MJ's Avatar

Join Date: Jun 2011
Location: Dayton, Ohio
Posts: 2,460
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Comanche
Engine: 4.0
Default

Originally Posted by 1996sportXJ
Why are you considering wrapping them? I've read many times that it is not necessary for our Jeeps
Agreed. The issue with heatsoak is when you turn the truck off and it sits for a bit. And even then it only takes a few seconds for the heatsoaked gas to combust upon start up.
Old 05-12-2012, 07:23 AM
  #5
CF Veteran

peep's Avatar

Join Date: Oct 2010
Location: Ontario, Canada
Posts: 2,150
Likes: 0
Received 12 Likes on 9 Posts
Year: 1989 Laredo
Model: Cherokee
Engine: 4.0 L 6 Renix
Default

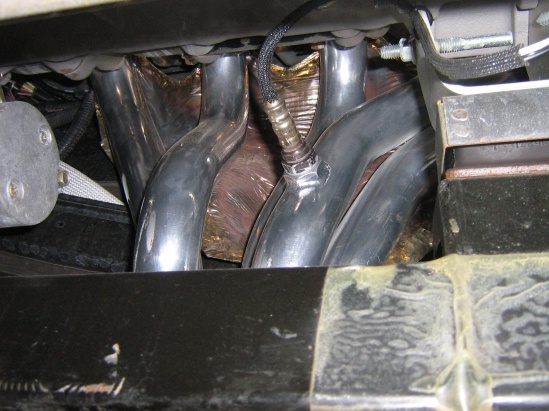

The wrap will certainly help you evacuate the heat out the pipe and keep under hood temps lower. The heat retention will also help scavenging of the headers and the exhaust flow, minimal but on the plus side. I apply hose clamps to secure the ends of the wrap. Note: Header wrap can cause damage and deterioration to some header coatings. If you have a factory applied coating, ask the manufacturer if the wrap will affect it. (ex, borla cautions against header wrap on their flash ceramic.) I have used often on steel painted systems. heat shield is also a viable application. See OEM shield above this header.
Attached Thumbnails Header wrap-img_2450.jpg
Old 05-12-2012, 07:24 AM
  #6
CF Veteran

TheJerm's Avatar

Join Date: Jun 2010
Location: Flint/Asheville
Posts: 2,501
Likes: 0
Received 4 Likes on 4 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
Default

I was dumb and wrapped my header on install, the wrap collected a bunch of mud and in not much time it started to deteriorate and fall off. I personally will never use header wrap again.
Old 05-12-2012, 10:15 AM
  #7
CF Veteran

hankthetank's Avatar

Join Date: Nov 2011
Location: Edmonton
Posts: 2,322
Likes: 0
Received 1 Like on 1 Post
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Mcwille117
Ok I found a nice how to for header wrap. But I lost the link, does anyone know a link to one that has the length I need to cut the pieces?
Don't pre cut...
Old 05-12-2012, 11:30 AM
  #8
CF Veteran

Gee oh Dee's Avatar

Join Date: Sep 2010
Location: Milwaukee, WI
Posts: 21,168
Likes: 0
Received 5 Likes on 5 Posts
Year: 1987
Engine: Check
Default

Originally Posted by TheJerm
I was dumb and wrapped my header on install, the wrap collected a bunch of mud and in not much time it started to deteriorate and fall off. I personally will never use header wrap again.
This.
Old 05-12-2012, 11:36 AM
  #9
Seasoned Member

XJJeff's Avatar

Join Date: Jan 2011
Location: NJ
Posts: 434
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 I6 Powertech
Default

What about these guys they use ceramic coating. I don't know how much they charge but they have a very good reputation online.
http://www.jet-hot.com/
Old 05-12-2012, 11:37 AM
  #10
CF Veteran

hankthetank's Avatar

Join Date: Nov 2011
Location: Edmonton
Posts: 2,322
Likes: 0
Received 1 Like on 1 Post
Year: 1990
Model: Cherokee
Engine: 4.0
Default

I wrapped the pacesetter on my old na supra...never had a problem. Never took it mudding tho...lol
