Grinding noise when turning
#1
Junior Member
Thread Starter
Join Date: Mar 2016
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Grinding noise when turning
Ok, so this is on my 96 XJ. Have an NP231 T case with a HP D30 up front and Ford 8.8 rear. Cross over steering, lifted 7.5 inches up front, with TJ 3.5 inch springs in the rear. 4.0 Inline six with an AW4 auto Transmission.
So I was having problems with my front drive shaft. I took it off, replaced the u joints on it and slapped it back on. I went to go drive it around town to see if the noise was still there (coming from the drive shaft). The drive shaft is not my concern. The problem now is, I put it in 4 High, (Yes im aware you're not supposed to engage 4X4 on the pavement, I drove straight the whole time). Well when I was going to disengage the 4X4 I was slowly coming to a stop, well at about 15 mph, I decided to slip it in neutral (Yes I know, stupid...). Well it slipped from neutral up to reverse... You know what comes next. Grinding and the jeep turns off.
Well I slip it in neutral, turn it on, disengage the 4X4, and drive it back home. The problem now is, im getting a clicking/grinding noise when I turn my wheels left while moving. It doesn't do it all the time, but every now and then. Any ideas on what it could be? Took my front diff cover off (mainly to check if I was missing any teeth, checking for the noise from the drive shaft) and everything looks good. Im hoping I didn't damage my tranny... It engages in every gear fine. I haven't noticed any slipping while driving either.
So I was having problems with my front drive shaft. I took it off, replaced the u joints on it and slapped it back on. I went to go drive it around town to see if the noise was still there (coming from the drive shaft). The drive shaft is not my concern. The problem now is, I put it in 4 High, (Yes im aware you're not supposed to engage 4X4 on the pavement, I drove straight the whole time). Well when I was going to disengage the 4X4 I was slowly coming to a stop, well at about 15 mph, I decided to slip it in neutral (Yes I know, stupid...). Well it slipped from neutral up to reverse... You know what comes next. Grinding and the jeep turns off.
Well I slip it in neutral, turn it on, disengage the 4X4, and drive it back home. The problem now is, im getting a clicking/grinding noise when I turn my wheels left while moving. It doesn't do it all the time, but every now and then. Any ideas on what it could be? Took my front diff cover off (mainly to check if I was missing any teeth, checking for the noise from the drive shaft) and everything looks good. Im hoping I didn't damage my tranny... It engages in every gear fine. I haven't noticed any slipping while driving either.
Last edited by JSaenz; 04-26-2016 at 03:18 PM.
#3
Junior Member
Thread Starter
Join Date: Mar 2016
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
#4
CF Veteran
Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Originally Posted by JSaenz

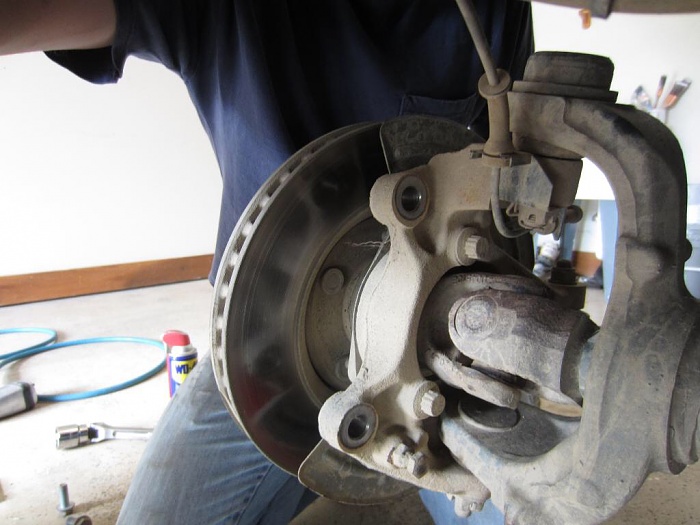

They look fine, I should probably lift up the front end and wiggle the tires to see how they feel.
#5
Junior Member
Thread Starter
Join Date: Mar 2016
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
#6
CF Veteran
Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Originally Posted by JSaenz
That's how you check wheel bearings... And last time I checked the u joints they looked fine.
Last edited by JPXJMOAB; 04-26-2016 at 08:37 PM.
#7
Junior Member
Thread Starter
Join Date: Mar 2016
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Yes. Therefore you lift the front and move the tire...
Trending Topics
#8
CF Veteran
Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Originally Posted by JSaenz
Yes. Therefore you lift the front and move the tire...
#9
CF Veteran
Join Date: Jan 2016
Location: Newport News, VA
Posts: 1,242
Likes: 0
Received 38 Likes
on
37 Posts
Year: 96 & 88 4 dr Cherokees
You should be hearing the noise when turning period, unless it is the brakes or something on the left front corner only. (unless it is not on the axle at all)
You may have damaged the tcase/chain/shifting mechanism when you hit reverse. Also check trans mounts & engine mounts. Make sure the tcase linkage is completely disengaging also.
When you do what you did, it is quite a shock to the driveline, especially in 4wd, so you have to check everything to be sure what is wrong.
Usually, damage for this type thing is in the tcase or trans because that is where the sudden direction change occurs 1st & with the most force.....maybe u-joints on the driveshaft, but not so much the axles.
You may have damaged the tcase/chain/shifting mechanism when you hit reverse. Also check trans mounts & engine mounts. Make sure the tcase linkage is completely disengaging also.
When you do what you did, it is quite a shock to the driveline, especially in 4wd, so you have to check everything to be sure what is wrong.
Usually, damage for this type thing is in the tcase or trans because that is where the sudden direction change occurs 1st & with the most force.....maybe u-joints on the driveshaft, but not so much the axles.
Last edited by TRCM; 04-27-2016 at 09:53 AM.
#10
Junior Member
Thread Starter
Join Date: Mar 2016
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
You should be hearing the noise when turning period, unless it is the brakes or something on the left front corner only. (unless it is not on the axle at all)
You may have damaged the tcase/chain/shifting mechanism when you hit reverse. Also check trans mounts & engine mounts. Make sure the tcase linkage is completely disengaging also.
When you do what you did, it is quite a shock to the driveline, especially in 4wd, so you have to check everything to be sure what is wrong.
Usually, damage for this type thing is in the tcase or trans because that is where the sudden direction change occurs 1st & with the most force.....maybe u-joints on the driveshaft, but not so much the axles.
You may have damaged the tcase/chain/shifting mechanism when you hit reverse. Also check trans mounts & engine mounts. Make sure the tcase linkage is completely disengaging also.
When you do what you did, it is quite a shock to the driveline, especially in 4wd, so you have to check everything to be sure what is wrong.
Usually, damage for this type thing is in the tcase or trans because that is where the sudden direction change occurs 1st & with the most force.....maybe u-joints on the driveshaft, but not so much the axles.
#11
CF Veteran
Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Originally Posted by JSaenz
Yea I agree. I was thinking I might have done something to the T case chain as well. But why would it only make noise when I turn? If it was the Tcase it would most likely make noise whenever I'm driving. Not just when I turn.
#12
CF Veteran
Join Date: Jan 2016
Location: Newport News, VA
Posts: 1,242
Likes: 0
Received 38 Likes
on
37 Posts
Year: 96 & 88 4 dr Cherokees
What's easier for you to push....a truck with tires pointing straight ahead, or a truck with the tires turned ??
bold letters - not true.....when driving, the front driveline is disengaged from the engine, and spinning the same speed being driven by the tires/ground if going straight. When you turn, a speed differences shows up between the front & rear driveshafts, especially when the front is being driven by the ground, NOT the engine (as when in 2wd), so when you turn, you see the rpm diff, and that is when things show up....especially is the tcase is only partially disengaged....same speed ok, diff speeds, noisey
Last edited by TRCM; 04-27-2016 at 01:18 PM.
#13
Junior Member
Thread Starter
Join Date: Mar 2016
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
#14
Junior Member
Thread Starter
Join Date: Mar 2016
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Because when turning, there is a bigger load on the trans/tcase, and that is when problems show up.
What's easier for you to push....a truck with tires pointing straight ahead, or a truck with the tires turned ??
bold letters - not true.....when driving, the front driveline is disengaged from the engine, and spinning the same speed being driven by the tires/ground if going straight. When you turn, a speed differences shows up between the front & rear driveshafts, especially when the front is being driven by the ground, NOT the engine (as when in 2wd), so when you turn, you see the rpm diff, and that is when things show up....especially is the tcase is only partially disengaged....same speed ok, diff speeds, noisey
What's easier for you to push....a truck with tires pointing straight ahead, or a truck with the tires turned ??
bold letters - not true.....when driving, the front driveline is disengaged from the engine, and spinning the same speed being driven by the tires/ground if going straight. When you turn, a speed differences shows up between the front & rear driveshafts, especially when the front is being driven by the ground, NOT the engine (as when in 2wd), so when you turn, you see the rpm diff, and that is when things show up....especially is the tcase is only partially disengaged....same speed ok, diff speeds, noisey
#15
CF Veteran
Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Originally Posted by JSaenz
Ok gotcha. So with that said, if I take off the front drive shaft and IT IS the Tcase it shouldn't make noise when I turn right?
