front and rear questions
I got alot of help in my other thread about my lift issues, figured ill take a shot with more noob stuff.
So I have a 95 xj, so far I did the 6.5 lift, chopped the fenders and installed my fender flares so Im clearing 35s no problem. And not its time to get my front and rear up to speed also. My jeep was all stock before so Im sure I have the Dana 30 up front, and im not sure about the back, I think its the Chrysler 8.25 but its hard for me to tell.
looks like im running 3.07 gears from what the tag says so its pretty gutless right now, Id like to be able to pull my bike trailer one day again...it also has a tag that reads 0485 not sure what that means...
If I have the 8.25 then I might be good to just re gear it, but if its the 35 then I should swap it right ? what about the front, what are the usual options on that after a lift and tires ?
thanks for any input!
So I have a 95 xj, so far I did the 6.5 lift, chopped the fenders and installed my fender flares so Im clearing 35s no problem. And not its time to get my front and rear up to speed also. My jeep was all stock before so Im sure I have the Dana 30 up front, and im not sure about the back, I think its the Chrysler 8.25 but its hard for me to tell.
looks like im running 3.07 gears from what the tag says so its pretty gutless right now, Id like to be able to pull my bike trailer one day again...it also has a tag that reads 0485 not sure what that means...
If I have the 8.25 then I might be good to just re gear it, but if its the 35 then I should swap it right ? what about the front, what are the usual options on that after a lift and tires ?
thanks for any input!
#4
Senior Member
Join Date: Dec 2012
Location: Midwest
Posts: 638
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0L

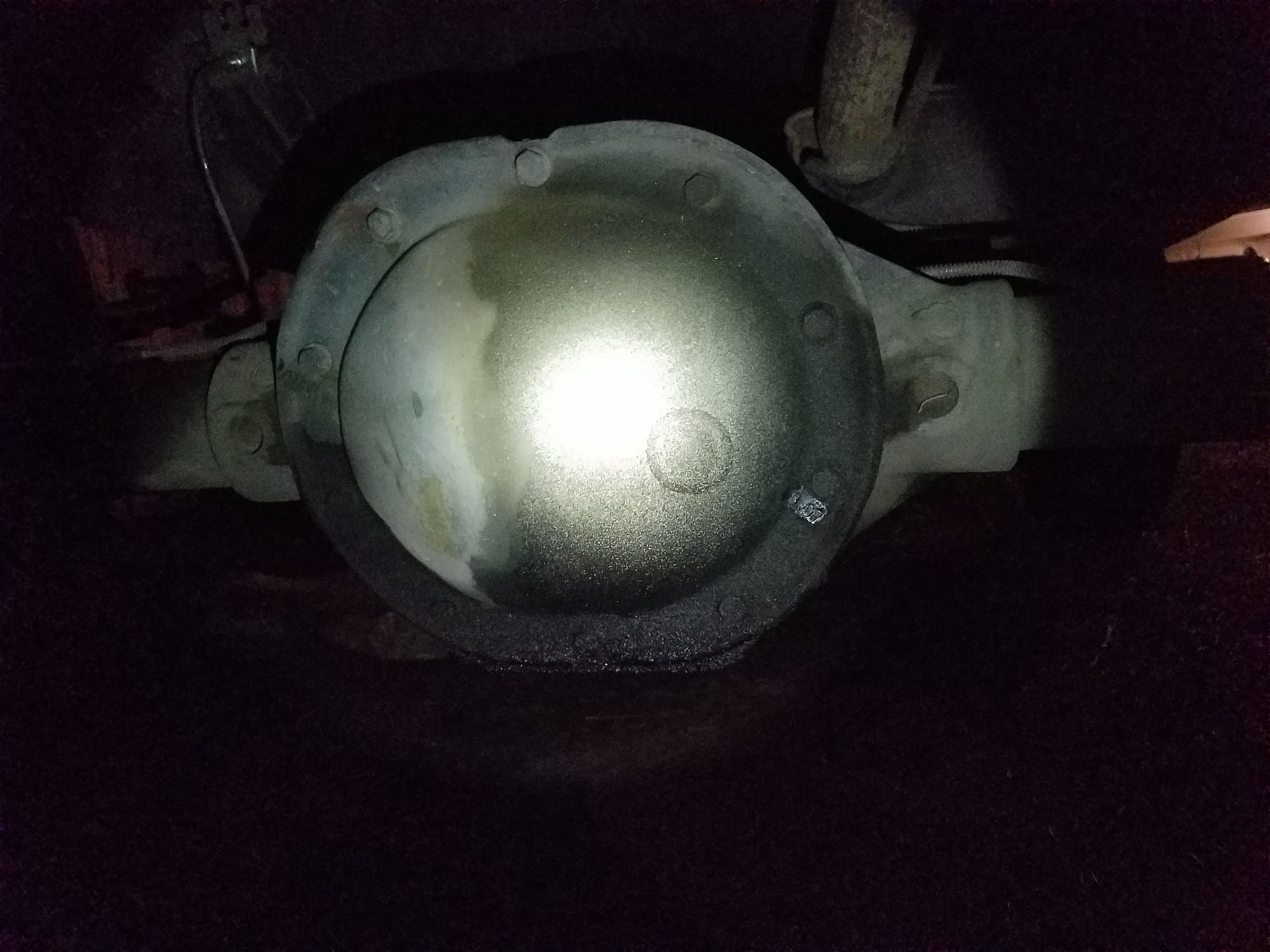

Thats 8.25, note the flat bottom.
Whatever gearing you do to the rear you MUST do to the front. otherwise you wont be able to use 4x4. You are probably going to be looking in the area of 3.75:1 maybe higher or lower but that is going to be based on what your end goal is. if you intend on driving this on the HWY regularly then for MPG purposes I would not suggest going much higher than that.
You may also want to add a locker to the rear while you are in there. I would avoid adding a locker to the front (unless it's a selectable locker) because a lot of people have complained about the drive-ability on a daily basis with a locker in the front.
Whatever gearing you do to the rear you MUST do to the front. otherwise you wont be able to use 4x4. You are probably going to be looking in the area of 3.75:1 maybe higher or lower but that is going to be based on what your end goal is. if you intend on driving this on the HWY regularly then for MPG purposes I would not suggest going much higher than that.
You may also want to add a locker to the rear while you are in there. I would avoid adding a locker to the front (unless it's a selectable locker) because a lot of people have complained about the drive-ability on a daily basis with a locker in the front.
#5
CF Veteran
Join Date: Jul 2012
Location: Andover, VT
Posts: 2,971
Received 226 Likes
on
176 Posts
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0 L
Not much to do in the front. Early model d30s had vacuum disconnect 4wd and smaller u joints. I can't remember what year the break is, somebody else can chime in on that.
Last edited by XJlimitedx99; 07-26-2016 at 07:26 AM.
#6
aka Wade-O
Join Date: Dec 2008
Location: IN
Posts: 3,703
Likes: 0
Received 10 Likes
on
9 Posts
Year: 1989 Comanche
Model: Cherokee
Engine: 4.0
You are probably going to be looking in the area of 3.75:1 maybe higher or lower but that is going to be based on what your end goal is. if you intend on driving this on the HWY regularly then for MPG purposes I would not suggest going much higher than that.
You may also want to add a locker to the rear while you are in there. I would avoid adding a locker to the front (unless it's a selectable locker) because a lot of people have complained about the drive-ability on a daily basis with a locker in the front.
You may also want to add a locker to the rear while you are in there. I would avoid adding a locker to the front (unless it's a selectable locker) because a lot of people have complained about the drive-ability on a daily basis with a locker in the front.
i drove for years with a front auto locker. it is not noticeable. get front shafts from a dana 30 with abs because it will have the larger ujoints.
#7
Newbie
Thread Starter
Join Date: Mar 2015
Posts: 28
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
So if I were to just swap the rear with a Dana 44 would that be a good option, anything I should look for in one besides having the same bolt pattern for the wheels ? I see those all over craigslist in my area and not much to be found in the 8.25.
I was thinking 456, maybe I'll get lucky and find one with the same gear I want too.
I was thinking 456, maybe I'll get lucky and find one with the same gear I want too.
Trending Topics
#8
CF Veteran
Join Date: Jan 2012
Location: Ocean County, NJ
Posts: 2,208
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
So if I were to just swap the rear with a Dana 44 would that be a good option, anything I should look for in one besides having the same bolt pattern for the wheels ? I see those all over craigslist in my area and not much to be found in the 8.25.
I was thinking 456, maybe I'll get lucky and find one with the same gear I want too.
I was thinking 456, maybe I'll get lucky and find one with the same gear I want too.
#9
CF Veteran
Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Being you have to change gears and install lockers (I also run Detroit Lockers front and read in mine) just swap in a pair of 29 spline axles from a 97 up XJ 8.25 they are about as strong as a D44.
I run the same combo in my 99, stock rear 8.25 29 spline and the D30 with 4.56 gears run both 33's with a set of 35's on bead locks I run sometimes for off road only.
I run the same combo in my 99, stock rear 8.25 29 spline and the D30 with 4.56 gears run both 33's with a set of 35's on bead locks I run sometimes for off road only.
#10
Seasoned Member
Join Date: Jan 2014
Location: Springfield, MO
Posts: 302
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Being you have to change gears and install lockers (I also run Detroit Lockers front and read in mine) just swap in a pair of 29 spline axles from a 97 up XJ 8.25 they are about as strong as a D44.
I run the same combo in my 99, stock rear 8.25 29 spline and the D30 with 4.56 gears run both 33's with a set of 35's on bead locks I run sometimes for off road only.
I run the same combo in my 99, stock rear 8.25 29 spline and the D30 with 4.56 gears run both 33's with a set of 35's on bead locks I run sometimes for off road only.
#11
Newbie
Thread Starter
Join Date: Mar 2015
Posts: 28
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Being you have to change gears and install lockers (I also run Detroit Lockers front and read in mine) just swap in a pair of 29 spline axles from a 97 up XJ 8.25 they are about as strong as a D44.
I run the same combo in my 99, stock rear 8.25 29 spline and the D30 with 4.56 gears run both 33's with a set of 35's on bead locks I run sometimes for off road only.
I run the same combo in my 99, stock rear 8.25 29 spline and the D30 with 4.56 gears run both 33's with a set of 35's on bead locks I run sometimes for off road only.
#14
CF Veteran
Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
The c-clips are fine and you can swap axles on the trail if needed I carry spares but to date have never had had to use one.
#15
Newbie
Thread Starter
Join Date: Mar 2015
Posts: 28
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
okay so I think Ill just do the gear swap in the front, and from what i gather Ill need a different carrier since ill be going to 4.56, so ill order the ring and pinion, carrier and im guessing a seal kit ?
on the rear, im not sure yet, I can swap the axles to a 29 spline, upgrade the carrier to 29 spline, add a locker which replaces the spider gears ? or the carrier too? not sure about that part yet. I have a friend who did my old dodge re gear who is going to do the install after i get everything, just need to narrow it down and order it all.
I found a rear end off a 97 for $200 that i can get tomorrow so that should have the 29 spline axles and carrier right ?
If i decided to just do the gear swap and add the locker later can i do that without pulling the gear again ?
I guess i need help figuring which locker to get.
on the rear, im not sure yet, I can swap the axles to a 29 spline, upgrade the carrier to 29 spline, add a locker which replaces the spider gears ? or the carrier too? not sure about that part yet. I have a friend who did my old dodge re gear who is going to do the install after i get everything, just need to narrow it down and order it all.
I found a rear end off a 97 for $200 that i can get tomorrow so that should have the 29 spline axles and carrier right ?
If i decided to just do the gear swap and add the locker later can i do that without pulling the gear again ?
I guess i need help figuring which locker to get.
