Front bump stops
02-10-2015, 05:58 PM
#1
Member
Thread Starter
Join Date: May 2014
Location: Kentucky
Posts: 111
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: I6
Front bump stops
Recently I installed a 4.5 lift on my cherokee. Now looking to install the proper length bump stops on the front. I measured the distance between the factory bump stop mounting location and the and the axle at full flex and it was about 6". I'm looking for the best way to get to the 6" mark with bump stops. Keep in mind I want quality parts
02-10-2015, 06:42 PM
#2
Senior Member
Join Date: Oct 2011
Location: Longview, TX
Posts: 689
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
Recently I installed a 4.5 lift on my cherokee. Now looking to install the proper length bump stops on the front. I measured the distance between the factory bump stop mounting location and the and the axle at full flex and it was about 6". I'm looking for the best way to get to the 6" mark with bump stops. Keep in mind I want quality parts
02-10-2015, 06:50 PM
#3
CF Veteran
Join Date: Jul 2012
Location: Andover, VT
Posts: 2,970
Received 224 Likes
on
174 Posts
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0 L
Oem bump stops on the top and hockey pucks bolted to the bottom. Sounds half assed but it really isn't.
You can buy extended bump stops that go in the top but the issue with those is that when the axle is at full droop the coil is pulled back and can contact the longer bump stop.
You can buy extended bump stops that go in the top but the issue with those is that when the axle is at full droop the coil is pulled back and can contact the longer bump stop.
02-10-2015, 06:54 PM
#4
CF Veteran
Oem bump stops on the top and hockey pucks bolted to the bottom. Sounds half assed but it really isn't.
You can buy extended bump stops that go in the top but the issue with those is that when the axle is at full droop the coil is pulled back and can contact the longer bump stop.
You can buy extended bump stops that go in the top but the issue with those is that when the axle is at full droop the coil is pulled back and can contact the longer bump stop.
Trending Topics
02-10-2015, 08:39 PM
#10
Darn...missed that.
Two things that ya might be interested in.
http://www.seriousoffroadproducts.co...TJ-XJ-ZJ-MJ-LJ
Along with this...
http://www.seriousoffroadproducts.co...T-UPPER-RE1396
That should get ya dialed in.
Two things that ya might be interested in.
http://www.seriousoffroadproducts.co...TJ-XJ-ZJ-MJ-LJ
Along with this...
http://www.seriousoffroadproducts.co...T-UPPER-RE1396
That should get ya dialed in.
02-10-2015, 08:48 PM
#11
Member
Thread Starter
Join Date: May 2014
Location: Kentucky
Posts: 111
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: I6
Do you have any issues with the puck ridding on the spring at full flex. And does anyone make them in any color than red? How do they mount?
02-10-2015, 09:10 PM
#12
CF Veteran
Join Date: Jul 2012
Location: Andover, VT
Posts: 2,970
Received 224 Likes
on
174 Posts
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0 L

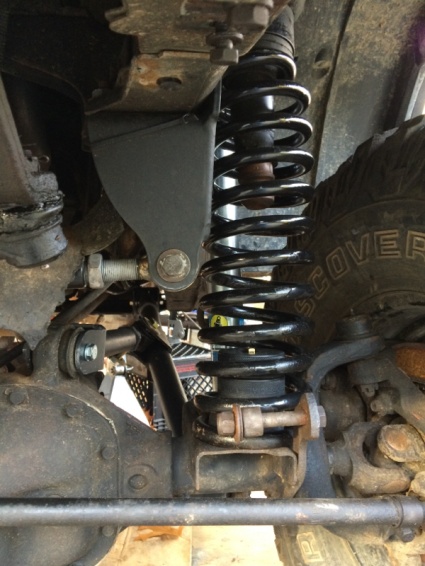

Sorry these are the best pictures but they're the only ones I have. You can get a general idea. That's two hockey pucks with holes drilled through them bolted to the cool buckets.
02-10-2015, 10:19 PM
#13
Senior Member
Join Date: Oct 2011
Location: Longview, TX
Posts: 689
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
I have only seen them in red, but they aren't extremely visable.
They literally just sit inside the coil. Jack up the front end, pull the bottom of the spring out, slide em in, and you're done.
