Frame Stiffeners
Hey, guys. so my 94 cherokee, like many others, has some serious rust issues. most notably the hole in my frame. the rust goes through the bottom of the bar, a good fist sized. I've looked at other cars and really can't afford them so i've been looking at cheaper solutions(my first attempt was just to find another frame, it failed). so i was looking for some opinions on whether or not these would work http://www.tntcustoms.com/Jeepcherok...ffeners-2.aspx
it looks like it should sure up my frame enough, i would grind out all the surface rust, then clean up the hole, and finally have my friend(he welds) attach the stiffener.
so, would this work?
it looks like it should sure up my frame enough, i would grind out all the surface rust, then clean up the hole, and finally have my friend(he welds) attach the stiffener.
so, would this work?
05-23-2012, 08:42 PM
#3
CF Veteran
Join Date: Feb 2010
Location: Soddy Daisy TN
Posts: 5,420
Likes: 0
Received 0 Likes
on
0 Posts
Year: 97
Model: Cherokee
Engine: 4.0L
Really depends on how much rust you have because you can't weld to rust. If it's just a few holes and some surface rust you may be able to clean it up enough to weld those on.
05-24-2012, 07:10 AM
#5
CF Veteran
Join Date: Dec 2010
Location: Frankfort IL
Posts: 1,385
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.0
Hey, guys. so my 94 cherokee, like many others, has some serious rust issues. most notably the hole in my frame. the rust goes through the bottom of the bar, a good fist sized. I've looked at other cars and really can't afford them so i've been looking at cheaper solutions(my first attempt was just to find another frame, it failed). so i was looking for some opinions on whether or not these would work http://www.tntcustoms.com/Jeepcherok...ffeners-2.aspx
it looks like it should sure up my frame enough, i would grind out all the surface rust, then clean up the hole, and finally have my friend(he welds) attach the stiffener.
so, would this work?
it looks like it should sure up my frame enough, i would grind out all the surface rust, then clean up the hole, and finally have my friend(he welds) attach the stiffener.
so, would this work?
What do you mean by attempt to find another frame failed ?
05-24-2012, 09:14 AM
#6
Former Sponsor
Join Date: May 2010
Location: meriden Ct
Posts: 2,181
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
How much rust is there? Any rust that is through should be cut out and replaced before covering it up, or it will just start to rust from the inside out.
Also like stated above, if there is too much, what are you going to attach them to?
Also like stated above, if there is too much, what are you going to attach them to?
05-24-2012, 09:53 AM
#7
CF Veteran
Join Date: Oct 2008
Location: Hell, CA
Posts: 2,127
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L I6
If your "framerail" is rusted that bad.. consider finding another xj donor and swap what you got, or start over. DO the frame stiffeners on something that is still intact.
Trending Topics
05-25-2012, 11:31 PM
#8
Newbie
Thread Starter
Join Date: Jan 2012
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
what i meant that my attempt to find another frame failed is that i was unable to find another donor xj without rust or in my price range. there's only one really bad hole. the rest appears to be surface rust. what would i patch the hole with?
05-26-2012, 05:43 AM
#10
CF Veteran
Join Date: Jul 2010
Location: 802
Posts: 4,930
Likes: 0
Received 3 Likes
on
3 Posts
Year: 99
Model: Cherokee
Engine: 4.0
XJ's don't have frames.. That could be part of why you had such little success.. Haha.. I'm assuming you mean a frame rail you could chop off the doner?
05-26-2012, 08:16 AM
#11
Junior Member
Join Date: May 2012
Location: Aurora, Colorado
Posts: 52
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0 HO
as long as the rust hole isnt super bad you could clean it up and put a rust preventative paint on the bare metal that was cleaned up. But like others said you should post up a pic to really be able to tell wether or not it is worth the time. As far as the frame stiffners my buddy has them on his xj and he loves them. He said they are worth the money.
05-26-2012, 08:33 AM
#12
MJ>XJ
Join Date: Mar 2009
Location: Griffin, G.A.
Posts: 17,836
Likes: 0
Received 4 Likes
on
3 Posts
Year: 1990
Model: Comanche
Engine: 4.0 I6
how can you say it doesnt have a frame... then turn right around and call it a frame rail? lol
its a unibody however im sure he knows this... i call it a frame time to time for quick reference... yall know whats being talked about lol... just dont talk about a body lift and i wont hate...
05-26-2012, 09:17 AM
#15
Newbie
Thread Starter
Join Date: Jan 2012
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
yes i know it's a uni-body

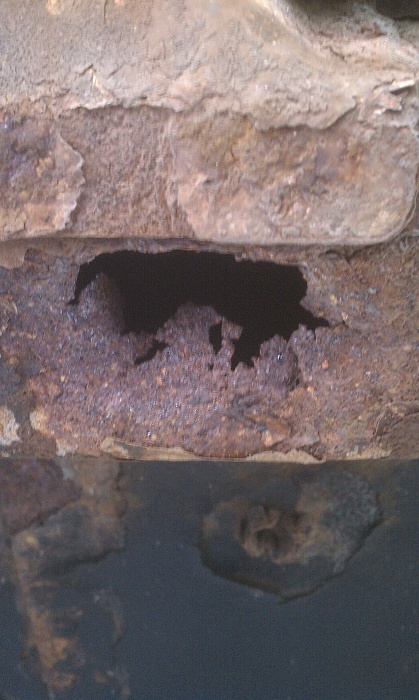

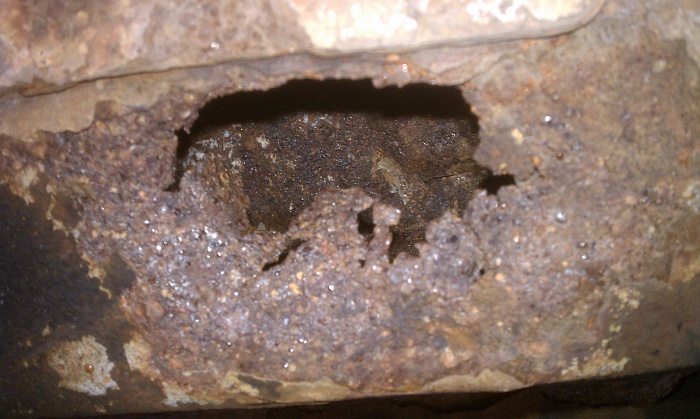

however i tend to refer to it as a frame because most of my friends get confused by what that means. anyways here are the pics. this is the only spot thats eaten through, everything else is on the surface. there's a lot more rust on the rockers, but i'll worry about that once i have a firm "base"(by base i mean uni-body frame rail
) to work on. now let's see if i get these pics in right...
however i tend to refer to it as a frame because most of my friends get confused by what that means. anyways here are the pics. this is the only spot thats eaten through, everything else is on the surface. there's a lot more rust on the rockers, but i'll worry about that once i have a firm "base"(by base i mean uni-body frame rail ) to work on. now let's see if i get these pics in right...
