Fog lights on factory wiring
#1
CF Veteran
Thread Starter
Join Date: Jun 2016
Location: CO
Posts: 1,011
Likes: 0
Received 20 Likes
on
18 Posts
Year: 99
Model: Cherokee (XJ)
Engine: 4.0
Fog lights on factory wiring
Hey all,
My jeep had fog lights from the factory which i would like to replace/upgrade with either fogs or driving lights.
Can i simply add some driving lights and splice the into the factory wiring?
Also how do i test the factory wiring to see if its still good, i dont have any fog lights currently on the vehicle. i have a multi meter but i dont really know what im looking for.
thank you for any assistance
My jeep had fog lights from the factory which i would like to replace/upgrade with either fogs or driving lights.
Can i simply add some driving lights and splice the into the factory wiring?
Also how do i test the factory wiring to see if its still good, i dont have any fog lights currently on the vehicle. i have a multi meter but i dont really know what im looking for.
thank you for any assistance
#2
Senior Member
Join Date: Mar 2011
Location: VA
Posts: 770
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee (XJ)
Engine: 4L, 6 cylinder, 190 hp, 225 ft lp torque
If you go with LED lights, NP low amperage draw. Otherwise you will need to know the amp draw of the new lights, you will want the same amp draw as the stock lights or less. I don't know what amperage the fog light circuit is, sorry.
Testing. Your fog lights were plugged into wires with plugs on the ends which terminate right behind your bumper down by the fog light mounting areas. You need to locate these plugs, turn on the fog light switch and your volt meter (DC). Now, while holding the black volt meter lead to any bare bolt (ground) touch the red lead to one and then the other hole in the plug, you need to make contact with the metal in the plug holes. You should get a reading of about 12 volts from one of them, if not, check the fuse for the fog light circuit and repeat the voltage reading steps. Good luck.
Testing. Your fog lights were plugged into wires with plugs on the ends which terminate right behind your bumper down by the fog light mounting areas. You need to locate these plugs, turn on the fog light switch and your volt meter (DC). Now, while holding the black volt meter lead to any bare bolt (ground) touch the red lead to one and then the other hole in the plug, you need to make contact with the metal in the plug holes. You should get a reading of about 12 volts from one of them, if not, check the fuse for the fog light circuit and repeat the voltage reading steps. Good luck.
#6
CF Veteran
Join Date: Apr 2016
Location: Pasquotank, NC
Posts: 1,679
Likes: 0
Received 15 Likes
on
13 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
If the lights you choose are a high amp draw, then I would suggest you use the existing wiring as a control circuit. Wire a relay to the end of the existing wire (behind the bumper), then run a new harness to the lights from the relay. Much easier than running new wire into the cab to a new switch.
Trending Topics
#8
Junior Member
Join Date: Feb 2016
Posts: 67
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
I have the fog light wiring harness from a 1989 xj on my 1995 xj there is a relay where the fog light wiring joins main wiring harness iam running 2 55 watt fog lights without a problem. If you want higher wattage fog lights you may need to put heaver gauge wire from the battery to the relay and then from the relay to the fog lights.
#10
Junior Member
Join Date: Feb 2012
Location: east texas
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Year: 98
Model: Cherokee
Engine: 4.0
Should be around 10 amps for both 55w lights at 12v. Used several sets of cheapo leds from amazon and so far ive only had one bad pair. Ive got 4 of the rectangle floods for rocklights and they've survived for about a year now.
#11
Senior Member
Join Date: Sep 2007
Location: puyallup
Posts: 604
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: 4.0
i have been running LED fog lights for 2 years on my cherokee with no issues. i took the stock fog lights cut the ends off and wired the ends on my lights so i didnt need to cut the factory wiring. i havent seen any issues.. only thing is my light inside the cab doesnt fully light up i believe due to not drawing enough from the lights.
#12
CF Veteran
Thread Starter
Join Date: Jun 2016
Location: CO
Posts: 1,011
Likes: 0
Received 20 Likes
on
18 Posts
Year: 99
Model: Cherokee (XJ)
Engine: 4.0
snow/fogs
Ive been researching lights more now and led are great but i dont know how much we loose out on beam pattern vs hid or halogen.
i would like your help for those that run fogs or such in snow. Do hid vs halogen melt snow well vs led which are cooler.
yellow light is optimal for me, what have others here found for their driving needs?
i would like your help for those that run fogs or such in snow. Do hid vs halogen melt snow well vs led which are cooler.
yellow light is optimal for me, what have others here found for their driving needs?
#13
CF Veteran
Join Date: Jun 2011
Location: Louisville,KY
Posts: 8,014
Likes: 0
Received 14 Likes
on
14 Posts
Model: Cherokee
Honestly unless you got 300 bucks to spend on hids i would pass on them.A fog light goes under the bumper and does help in fog/dusty and light snow.Yellow light does help in snow.More light then that driving lights on top the bumper can help and depending the brand you can get yellow light covers for them.
#14
Senior Member
Power goes from the battery to the fog lamp switch through that relay, then from the switch straight to the fog lamps. In other words, all the current for the fog lamps goes through the fog lamp switch.
Just like that infernal headlight switch.
#15
Senior Member
Join Date: Mar 2011
Location: VA
Posts: 770
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee (XJ)
Engine: 4L, 6 cylinder, 190 hp, 225 ft lp torque

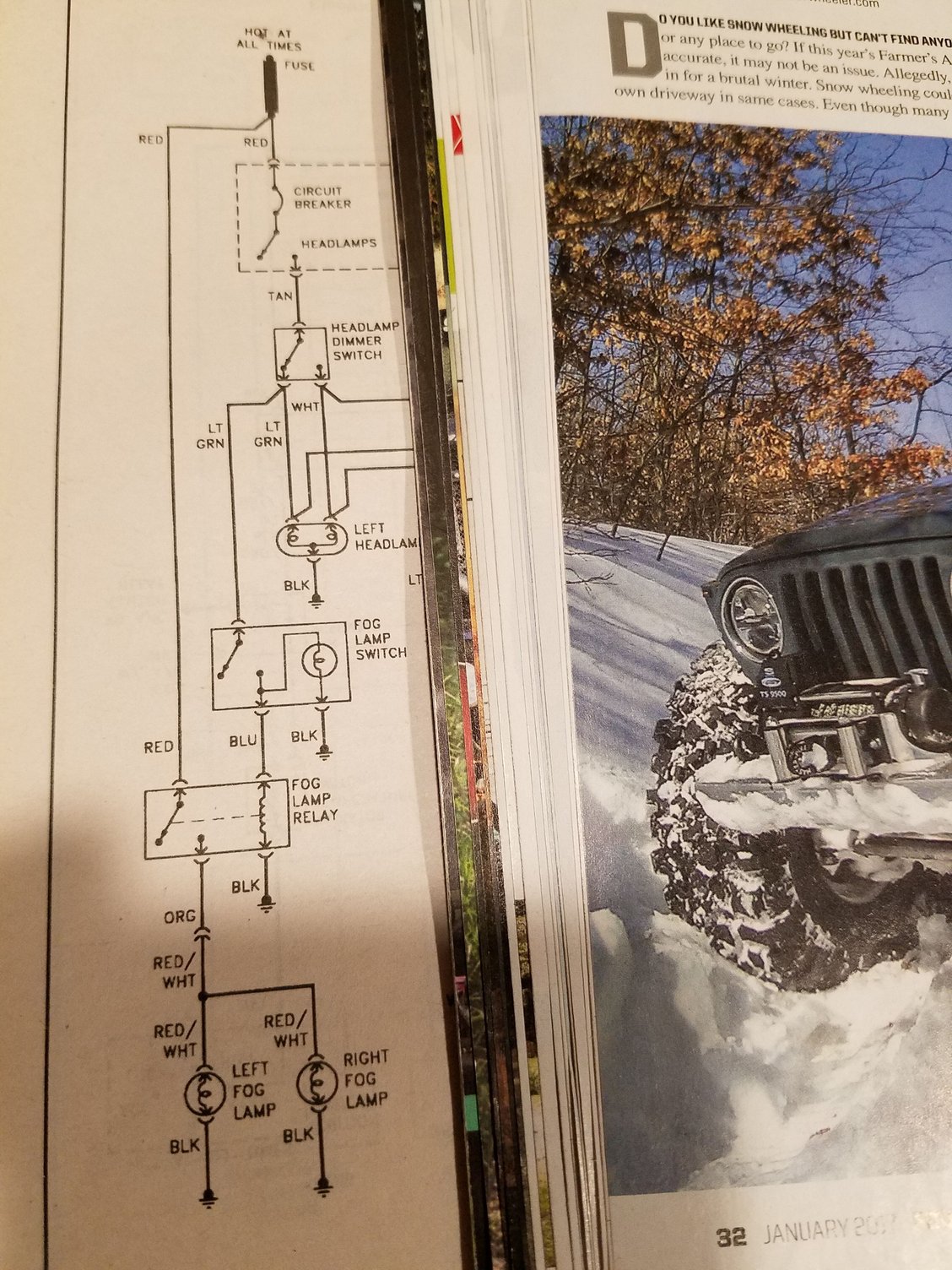

Hey Wizard. The pic is of the wiring diagram in my service manual. It clearly shows the fog lamps being powered through the fog lamp relay. The fog lamp relay is energized by the fog light switch which receives its power through the headlamp dimmer switch. So, the fog lamps are powered from the battery through the high amp fog lamp relay.
