Fixed LCA + drop bracket

Thread Tools

Search this Thread

Old 02-01-2015, 08:08 PM
  #1
CF Veteran
Thread Starter

JPXJMOAB's Avatar

Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Likes: 0
Received 7 Likes on 7 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Default Fixed LCA + drop bracket
I have 4.5" RE coils and I'm curious if these together would work okay? How would this effect the angles? Anyone running this set up?
JPXJMOAB is offline
Reply Like
Old 02-01-2015, 08:56 PM
  #2
Senior Member

yarom's Avatar

Join Date: Mar 2012
Location: Bellevue, WA
Posts: 512
Likes: 0
Received 1 Like on 1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L
Default
Originally Posted by JPXJMOAB
I have 4.5" RE coils and I'm curious if these together would work okay? How would this effect the angles? Anyone running this set up?
Yes. I have the same coils, RC drop brackets and IRO uppers and lowers..
yarom is offline
Reply Like
Old 02-01-2015, 08:57 PM
  #3
Senior Member

yarom's Avatar

Join Date: Mar 2012
Location: Bellevue, WA
Posts: 512
Likes: 0
Received 1 Like on 1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L
Default
Originally Posted by JPXJMOAB
I have 4.5" RE coils and I'm curious if these together would work okay? How would this effect the angles? Anyone running this set up?
I mean, you need adjustable arms..
yarom is offline
Reply Like
Old 02-01-2015, 09:13 PM
  #4
CF Veteran
Thread Starter

JPXJMOAB's Avatar

Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Likes: 0
Received 7 Likes on 7 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Default
Originally Posted by yarom
I mean, you need adjustable arms..
can I just use drop brackets and RC fixed arms with the bend?
JPXJMOAB is offline
Reply Like
Old 02-01-2015, 09:31 PM
  #5
Senior Member

yarom's Avatar

Join Date: Mar 2012
Location: Bellevue, WA
Posts: 512
Likes: 0
Received 1 Like on 1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L
Default
Originally Posted by JPXJMOAB
can I just use drop brackets and RC fixed arms with the bend?
Not if you want the wheels properly centered in the well and the right pumpkin angle..
yarom is offline
Reply Like
Old 02-01-2015, 09:37 PM
  #6
CF Veteran
Thread Starter

JPXJMOAB's Avatar

Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Likes: 0
Received 7 Likes on 7 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Default
Originally Posted by yarom
Not if you want the wheels properly centered in the well and the right pumpkin angle..
how not? Fixed arms alone can be used for up to 4.5" of lift. The CAD brings the arms forward 1" and down 3".
JPXJMOAB is offline
Reply Like
Old 02-02-2015, 07:35 AM
  #7
Member

XJmember's Avatar

Join Date: Nov 2014
Location: Manitoba, Canada
Posts: 197
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0
Default
Originally Posted by JPXJMOAB
how not? Fixed arms alone can be used for up to 4.5" of lift. The CAD brings the arms forward 1" and down 3".
If you get the correct fixed length arms you will be fine, just got to figure that out before you order them!
XJmember is offline
Reply Like

Trending Topics

Old 02-02-2015, 07:48 AM
  #8
Seasoned Member

2000chersport's Avatar

Join Date: Nov 2012
Location: Florida
Posts: 266
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L
Default
I have 4.5" zone fixed lower arms on RE drop brackets. My castor is perfect according to the laser alignment
2000chersport is offline
Reply Like
Old 02-02-2015, 02:20 PM
  #9
CF Veteran
Thread Starter

JPXJMOAB's Avatar

Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Likes: 0
Received 7 Likes on 7 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Default
Originally Posted by XJmember
If you get the correct fixed length arms you will be fine, just got to figure that out before you order them!
how do I "figure that out"?
JPXJMOAB is offline
Reply Like
Old 02-02-2015, 02:26 PM
  #10
Member

XJmember's Avatar

Join Date: Nov 2014
Location: Manitoba, Canada
Posts: 197
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0
Default

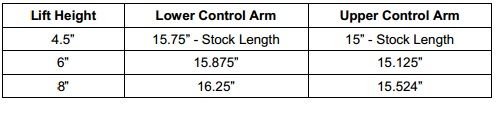

You can go off this chart, there is a few others Ive found but there all pretty much the same.

XJmember is offline
Reply Like
Old 02-02-2015, 02:35 PM
  #11
Beach Bum

SteveMongr's Avatar

Join Date: Jul 2011
Location: Cape Hatteras, North Carolina
Posts: 6,123
Received 20 Likes on 19 Posts
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Default
I have RC drop brackets. 4.5" lift
Upper arms are 15.25"
Lowers are 16.25"
SteveMongr is offline
Reply Like
Old 02-02-2015, 02:43 PM
  #12
Member

XJmember's Avatar

Join Date: Nov 2014
Location: Manitoba, Canada
Posts: 197
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0
Default
This is right off the Rough Country drop bracket installation guide.


XJmember is offline
Reply Like
Old 02-02-2015, 02:56 PM
  #13
CF Veteran
Thread Starter

JPXJMOAB's Avatar

Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Likes: 0
Received 7 Likes on 7 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Default
So I either need to run stock arms or adjustable arms with drop brackets? Can't use fixed arms at all?
JPXJMOAB is offline
Reply Like
Old 02-02-2015, 04:02 PM
  #14
Member

XJmember's Avatar

Join Date: Nov 2014
Location: Manitoba, Canada
Posts: 197
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0
Default
Originally Posted by JPXJMOAB
So I either need to run stock arms or adjustable arms with drop brackets? Can't use fixed arms at all?
All fixed means its fixed to a length, so if its the right length itll work.
XJmember is offline
Reply Like
Old 02-02-2015, 04:38 PM
  #15
CF Veteran

XJlimitedx99's Avatar

Join Date: Jul 2012
Location: Andover, VT
Posts: 2,971
Received 226 Likes on 176 Posts
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0 L
Default
If they're fixed arms that are intended for a lifted rig they will be too long.
XJlimitedx99 is offline
Reply Like
