Disc brake conversion...with ABS
#1
Senior Member
Thread Starter
Join Date: Jun 2010
Location: ............
Posts: 890
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Swapped my rear drums for discs. Also managed to splice the abs sensors from the ZJ onto mine so I still have a functioning abs system without the idiot light on all the time (which was more work than expected)! But it's all together, and I'll drive it around tomorrow after I bleed the brakes! I'll attach some "finished" photos tomorrow.
Parts used from a '97 ZJ:
- backing plates
- calipers
- left e-brake cable
- ABS gears from both axle shafts
- ABS sensors (cut at body)
- proportioning valve
New parts:
- rotors and pads - to match the front
- caliper bushings, boots, and bolts
- Right hand e-brake cable (for a '98 explorer)
- axle seals
Parts used from a '97 ZJ:
- backing plates
- calipers
- left e-brake cable
- ABS gears from both axle shafts
- ABS sensors (cut at body)
- proportioning valve
New parts:
- rotors and pads - to match the front
- caliper bushings, boots, and bolts
- Right hand e-brake cable (for a '98 explorer)
- axle seals
Last edited by JCKustoms; 01-25-2012 at 11:18 PM.
#2
Senior Member
Thread Starter
Join Date: Jun 2010
Location: ............
Posts: 890
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Yes, I did this to my Dana 35! If any of you feel this was a bad idea...just keep your comments to yourself please! Thank you
#3
Senior Member
Thread Starter
Join Date: Jun 2010
Location: ............
Posts: 890
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Very nice upgrade...glad I did it. It is a great improvement over the drum brakes. In a hard braking situation, I bet the overall stopping distance is significantly shorter!
I added up my expenses and it cost me right about $150.
I added up my expenses and it cost me right about $150.
#4
sorry for the off topic question but do you know the travel in your shocks? looks like you have shorter shock mounts. also what size tire and lift are you running. im putting on shorter mounts and trying to figure out what to use as far as shock travel.
#5
Senior Member
Thread Starter
Join Date: Jun 2010
Location: ............
Posts: 890
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Originally Posted by spdyracer
sorry for the off topic question but do you know the travel in your shocks? looks like you have shorter shock mounts. also what size tire and lift are you running. im putting on shorter mounts and trying to figure out what to use as far as shock travel.
#7
Senior Member
Join Date: Dec 2011
Location: Riverside county
Posts: 851
Likes: 0
Received 0 Likes
on
0 Posts
Year: 89' soon to be
Model: Cherokee
Engine: 4.0 HO 167k miles
Looks like you know exactly what you are doing! Would you happen to know if this conversion works for a D44? How much would you charge me! Lol
Trending Topics
#8
Junior Member
Join Date: Apr 2012
Location: Boise
Posts: 42
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Curious where you got your rotors and pads? If you only paid $150 for the entire setup, you must have gotten those for a steal! My drilled and slotted rotors and pads were $150 just by themselves
#10
Senior Member
Thread Starter
Join Date: Jun 2010
Location: ............
Posts: 890
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Originally Posted by chpalmer
Nice job!
Did you use the original tone rings or secure new ones?
Did you use the original tone rings or secure new ones?
#11
Senior Member
Thread Starter
Join Date: Jun 2010
Location: ............
Posts: 890
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Originally Posted by BotakBeng
Any chance we can have more pics on the ebrake setup?
What's the part #?
Thx.
#12
CF Veteran
Join Date: Jan 2011
Location: Las Vegas
Posts: 1,894
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Here is my ghetto mod
Appreciate it!
#13
Senior Member
Thread Starter
Join Date: Jun 2010
Location: ............
Posts: 890
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Originally Posted by BotakBeng
I did the disc brake conversion as well but not liking my ebrake setup. Hoping to get an idea which Ford Explorer cable you used and how was it connected to the ebrake lever.

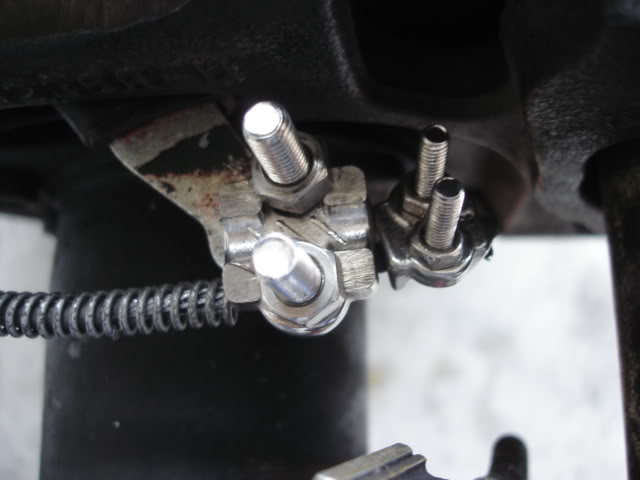

Here is my ghetto mod
Appreciate it!
#14
Do you have any pictures of the ABS sensor where it attaches? Was it a simple splice, strip, solder affair with the original ABS sensor wire?
Also what was involved in getting the GC tone ring off and onto the XJ shaft? Was there any machining involved on the XJ shaft?
Also what was involved in getting the GC tone ring off and onto the XJ shaft? Was there any machining involved on the XJ shaft?
#15
Senior Member
Thread Starter
Join Date: Jun 2010
Location: ............
Posts: 890
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Originally Posted by ctnsupra1
Do you have any pictures of the ABS sensor where it attaches? Was it a simple splice, strip, solder affair with the original ABS sensor wire?
Also what was involved in getting the GC tone ring off and onto the XJ shaft? Was there any machining involved on the XJ shaft?
Also what was involved in getting the GC tone ring off and onto the XJ shaft? Was there any machining involved on the XJ shaft?
