Dash LEDs

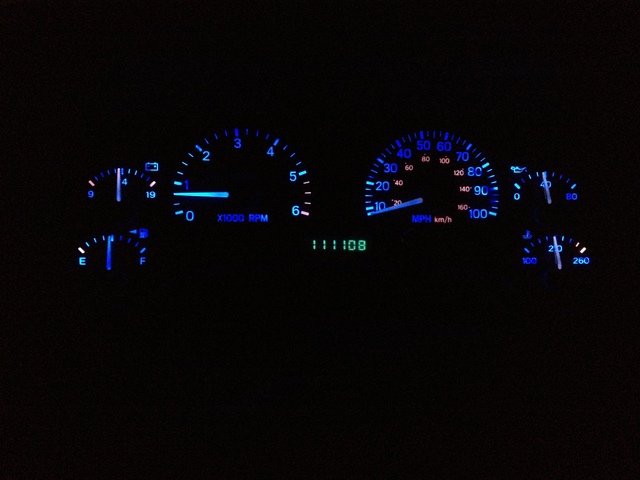

Hey everyone im looking to do something like this in my xj...
what is your opinion? if you have done this do you have to remove the dash? ive heard LEDs do not like dimmer circuits and such....is it just a waste of money? or worth while for the sweet look?
what is your opinion? if you have done this do you have to remove the dash? ive heard LEDs do not like dimmer circuits and such....is it just a waste of money? or worth while for the sweet look?
11-21-2013, 06:12 AM
#2
CF Veteran
Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 39 Likes
on
35 Posts
Year: 1999
Engine: 4.0
U forgot this picture....
Yes u have to remove the dash to access four screws that hold the gauge cluster on. Not that hard to do. The LEDs that I have works well with the dimmer
Yes u have to remove the dash to access four screws that hold the gauge cluster on. Not that hard to do. The LEDs that I have works well with the dimmer
11-21-2013, 10:46 AM
#4
Seasoned Member
Join Date: Aug 2013
Location: Duluth, MN
Posts: 452
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 I6
Also read every single page on this before you buy anything.
https://www.cherokeeforum.com/f2/xj-...ts-mod-126507/
https://www.cherokeeforum.com/f2/xj-...ts-mod-126507/
11-21-2013, 02:35 PM
#7
Member
Thread Starter
Join Date: Mar 2012
Location: Severance, Colorado
Posts: 205
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0 litre, line 6

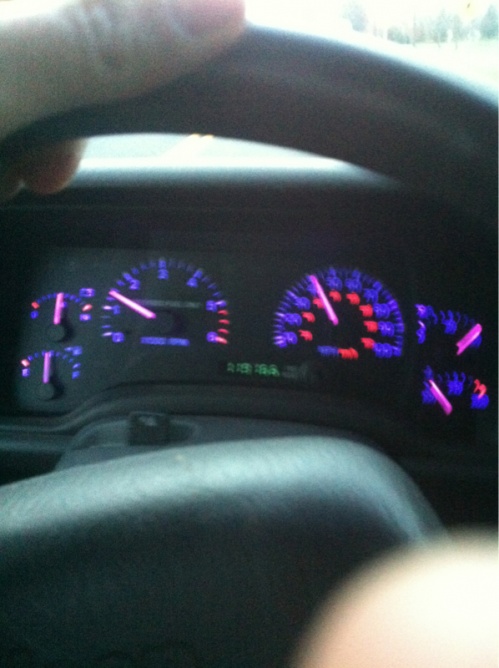

U forgot this picture....
Attachment 220859
Yes u have to remove the dash to access four screws that hold the gauge cluster on. Not that hard to do. The LEDs that I have works well with the dimmer
Attachment 220859
Yes u have to remove the dash to access four screws that hold the gauge cluster on. Not that hard to do. The LEDs that I have works well with the dimmer
Trending Topics
11-21-2013, 02:40 PM
#8
Member
Thread Starter
Join Date: Mar 2012
Location: Severance, Colorado
Posts: 205
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0 litre, line 6
If you have a 97-01, removing the dash is extremely easy. Just 4 screws and you can pop it off.
how to change 1997- 2001 jeep cherokee dash cluster - YouTube
how to change 1997- 2001 jeep cherokee dash cluster - YouTube
11-21-2013, 06:57 PM
#9
Member
Join Date: May 2012
Location: Oklahoma City
Posts: 238
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: I6 4.0L 242

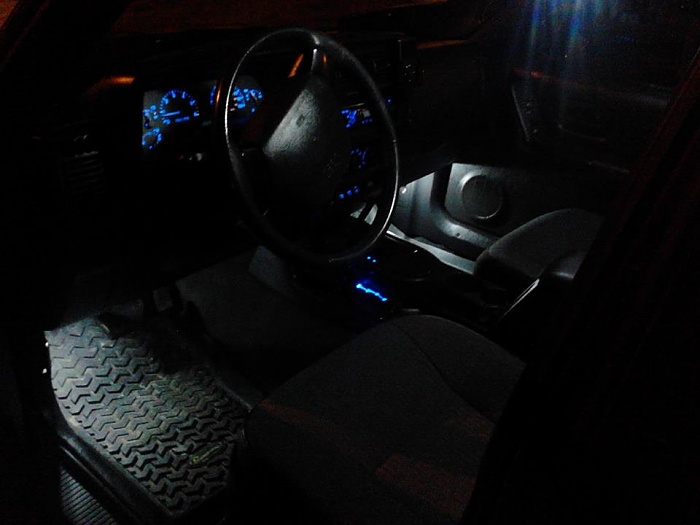

Here's mine, 2001 Sport:
Cool White. Just ignore the one that's out behind the temp sensor and the load problem from my indicator LED swap. They'll get fixed eventually.
Cool White. Just ignore the one that's out behind the temp sensor and the load problem from my indicator LED swap. They'll get fixed eventually.
11-22-2013, 02:38 AM
#10
CF Veteran
Join Date: Feb 2010
Location: Missoula, MT
Posts: 3,353
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: Golen 4.6 Stroker, AFE Headers, 62mm TB, 24 LB Injectors, Brown Dog kit, HF Cat, 3" Exhaust
What LEDs do you guys use? (brand/part number if you can) I have wanted to do this a few times then forget about it and loose all the info haha.
11-22-2013, 04:20 AM
#11
CF Veteran
Join Date: Oct 2013
Location: Tarpon Springs, FL / Denver, CO
Posts: 2,097
Likes: 0
Received 8 Likes
on
7 Posts
Year: '98
Engine: 4.0 I6
Originally Posted by As Per The Huge Thread
These are all the lights most will do for 97-01
5-neowedge t5 for the gauge cluster
2-194s for the 4wd/tranny (must have a diameter less then 10mm
2-3 neowedge t4 for the defroster, rear wiper and fog light if applicable
2-neowedge t4 for hvac
5-(or however many overhead lights you have) 44mm festoons
2-1156 for the footwells
5-neowedge t5 for the gauge cluster
2-194s for the 4wd/tranny (must have a diameter less then 10mm
2-3 neowedge t4 for the defroster, rear wiper and fog light if applicable
2-neowedge t4 for hvac
5-(or however many overhead lights you have) 44mm festoons
2-1156 for the footwells
11-22-2013, 04:30 AM
#12
Seasoned Member
Join Date: May 2013
Location: Sucka Free East Bay Cali
Posts: 448
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
97-01 wedge base 74's fit the oem twist lock bases for the cluster. You can use 74's for the hvac and the switches as well, just need to swap bases. 74's cheaper than neo wedges.
11-22-2013, 04:33 AM
#13
CF Veteran
Join Date: Oct 2013
Location: Tarpon Springs, FL / Denver, CO
Posts: 2,097
Likes: 0
Received 8 Likes
on
7 Posts
Year: '98
Engine: 4.0 I6
I too am a cheapie and would prefer to just buy a bunch of 74 LED's from china.
EDIT:
Wedge base, like these?
http://www.ebay.com/itm/20-pcs-T5-74-3-3528-SMD-DASHBOARD-LED-CAR-LIGHT-BULB-LAMP-White-1210-1-chip/300825353360?rt=nc&_trksid=p2047675.m1851&_trkparms=aid%3D222002%26algo%3DSIC.FIT%26ao%3D1%26asc%3D163%26meid%3D2880005217533792417%26pid%3D100005%26prg%3D1088%26rk%3D4%26rkt%3D4%26sd%3D271188118689%26
