cps and fuel related problem
#1
Seasoned Member
Thread Starter
Join Date: Jan 2011
Posts: 344
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
cps and fuel related problem
Ok so I think I narrowed down my no start issue to the cps but when I pressed the valve on the fuel rail no fuel sprayed out. Could a faulty cps cause low/no fuel pressure or cause the fuel pump to not work??? Any help is appreciated its a dd and its stuck at work...
#4
Seasoned Member
Join Date: Jun 2009
Location: Lancaster PA
Posts: 298
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
to answer your question no a cps wont affect your pump delivering fuel to the fuel rail. You need to check to see if you have power at the fuel pump if you dont then you need to check the fuel pump relay and if I remember correctly the 94 should have an auto shutdown relay too you need to check that if you have power at the pump then I would suspect a bad pump hope this helps
#5
Seasoned Member
Thread Starter
Join Date: Jan 2011
Posts: 344
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Ok so I can hear the pump working.....somehow I was able to drive it home then I turned it off and on a few times and it started right up. Now it won't start again..ughhh
#6
Seasoned Member
Join Date: Jun 2009
Location: Lancaster PA
Posts: 298
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
if it wont start now check to see if you have spark if you dont have spark then I would check the crank sensor chrysler crank sensors have a tendacy to not want to work when hot sometimes or you could have a loose connection somewhere too
#7
Seasoned Member
Thread Starter
Join Date: Jan 2011
Posts: 344
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I bought the cps today the only one in stock was at autozone but it'll work for now. I just don't want to spend all that time putting it on if its not the problem...I will be changing the fuel filter tomorrow also
Trending Topics
#8
Seasoned Member
Join Date: Jun 2009
Location: Lancaster PA
Posts: 298
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
be carefull with the autozone crank sensor I bought one from them and the bolt holes werent drilled right so when I put it on it started but it wouldnt rev and it had a real bad miss I had to slot the bolt holes to get the air gap correct
The following users liked this post:
BloNdeChiNeEz (03-09-2020)
#10
Seasoned Member
Join Date: Jun 2009
Location: Lancaster PA
Posts: 298
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
im not sure when I did mine it looked the same but it was off. I would check to see if you have spark the crank sensor tells the computer that the engine is turning and to tell the coil to send spark to the dizzy so check that first.
#11
Seasoned Member
Join Date: Jun 2009
Location: Lancaster PA
Posts: 298
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
if you can scan the comuter for codes it should give a code if the crank sensor is bad or some other problem too

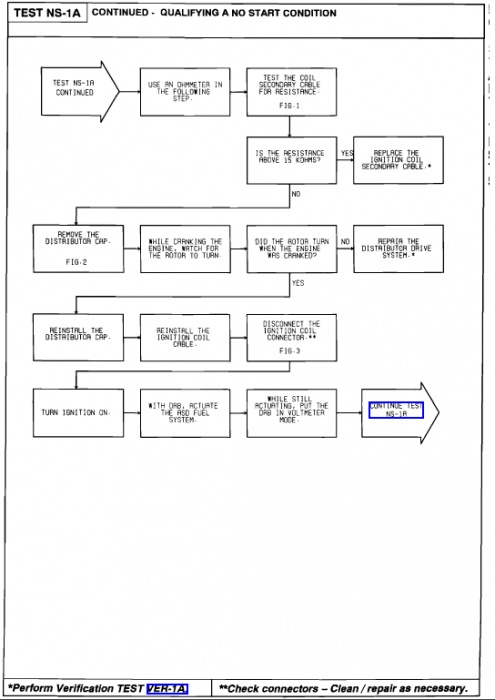

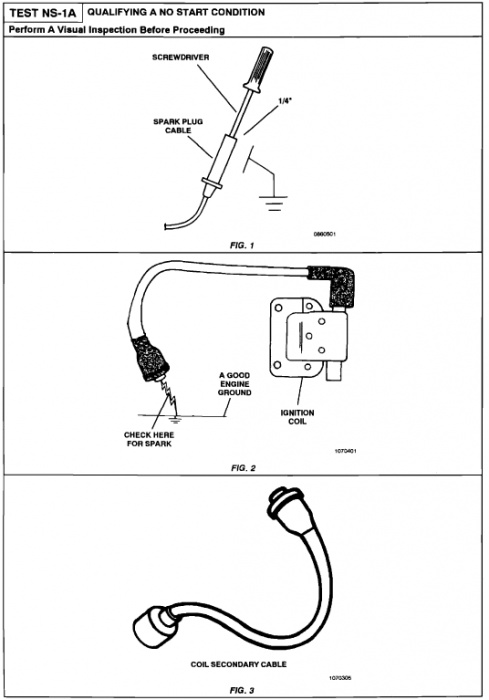

But here is something for you hope it helps
But here is something for you hope it helps
The following users liked this post:
BloNdeChiNeEz (03-09-2020)
#13
Seasoned Member
Thread Starter
Join Date: Jan 2011
Posts: 344
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Please excuse if this is a dumb question but to test for spark just pull the wire and hold it close to a metal surface correct?
Thanks for the help too man I appreciate it
Thanks for the help too man I appreciate it
#15
Seasoned Member
Thread Starter
Join Date: Jan 2011
Posts: 344
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Ok thanks and if there's no spark then it'd be a problem with the distributor right? Assuming all the fuses are good. What if they all have a spark where else should I look?
