control arm drop
I'm soon going to be getting a control arm drop kit, I'm looking for some feedback from guys running them. What brand ease of installation, ride quality etc.
At this point I'm not looking to run long arms, so let's not make this a long arm vs CAD argument.
At this point I'm not looking to run long arms, so let's not make this a long arm vs CAD argument.
#2
Senior Member
Join Date: Oct 2011
Location: St. Albert
Posts: 731
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L I6
Also, if you are getting the RC kit, the brace that comes with it is mediocre at best. The self-tapping bolt system isn't very good. I used the recommended hole size (11/32"), and I stripped one bolt with a 1/4" drive ratchet. I am planning on fishing some bolts through the hole in the frame, and securing the brackets that way.
Overall, I'd say it was worth it, but you still may need longer arms.
If you aren't getting the rough country bracket, then only some of this will still apply to you
#3
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
What kit are you going with? I put my RC kit on a couple weeks ago with a 4.5" lift. The drop brackets were pretty easy to install, and seemed to be pretty solid construction. The ride improved drastically. Your caster will be way off, and my shim bolts weren't long enough to get it back into spec. There was room left on the bracket, but the bolts only allowed me about 2.5* caster.
Also, if you are getting the RC kit, the brace that comes with it is mediocre at best. The self-tapping bolt system isn't very good. I used the recommended hole size (11/32"), and I stripped one bolt with a 1/4" drive ratchet. I am planning on fishing some bolts through the hole in the frame, and securing the brackets that way.
Overall, I'd say it was worth it, but you still may need longer arms.
If you aren't getting the rough country bracket, then only some of this will still apply to you
Also, if you are getting the RC kit, the brace that comes with it is mediocre at best. The self-tapping bolt system isn't very good. I used the recommended hole size (11/32"), and I stripped one bolt with a 1/4" drive ratchet. I am planning on fishing some bolts through the hole in the frame, and securing the brackets that way.
Overall, I'd say it was worth it, but you still may need longer arms.
If you aren't getting the rough country bracket, then only some of this will still apply to you
#6
Senior Member
Join Date: May 2013
Location: Maryland
Posts: 681
Likes: 0
Received 28 Likes
on
23 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Ive had Rocky Roads CAD brackets with oem arms for 6 months. Very nice design and easy to install. I had no alignment issues and they work well. I would give them a look. I dont know how RC brackets are but these are braced all the way back to the crossmember and attach using those bolts.
#7
Senior Member
Join Date: Oct 2011
Location: St. Albert
Posts: 731
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L I6
Ive had Rocky Roads CAD brackets with oem arms for 6 months. Very nice design and easy to install. I had no alignment issues and they work well. I would give them a look. I dont know how RC brackets are but these are braced all the way back to the crossmember and attach using those bolts.
Trending Topics
#8
CF Veteran
Join Date: Feb 2010
Location: Soddy Daisy TN
Posts: 5,420
Likes: 0
Received 0 Likes
on
0 Posts
Year: 97
Model: Cherokee
Engine: 4.0L

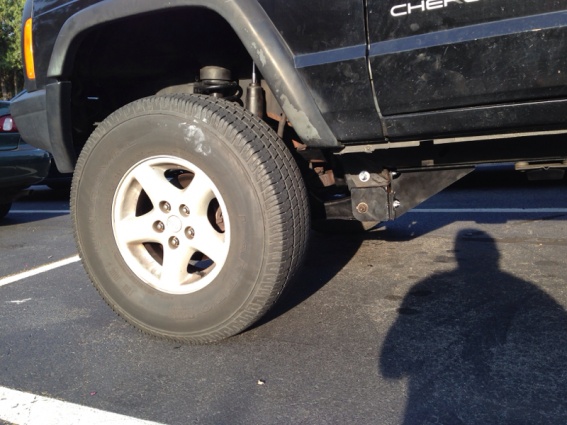

I've run the RC versions for years and I welded the braces to the unit body because of the self tapping garbage screws. They work well for what they are and flex quite well too. Here's a pic of mine for reference. Not quite as good as a long arm but much better than a typical short arm. Kind of a happy medium kind of thing. I'm running 6" of lift on mine for reference with aftermarket uppers and lowers.
#9
Senior Member
Join Date: May 2013
Location: Maryland
Posts: 681
Likes: 0
Received 28 Likes
on
23 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Actually the RR brackets relocate both arms. The alignment not being affected is from the oem arms purchased new with the brackets I believe. I think I just got lucky and it fell into place at the right height for them. I intend to go longarm this year but still a good product. Sorry to hear about the shipping best of luck.
#10
Senior Member
Join Date: Oct 2011
Location: St. Albert
Posts: 731
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L I6
Actually the RR brackets relocate both arms. The alignment not being affected is from the oem arms purchased new with the brackets I believe. I think I just got lucky and it fell into place at the right height for them. I intend to go longarm this year but still a good product. Sorry to hear about the shipping best of luck.
#12
CF Veteran
Join Date: Apr 2012
Location: Dayton OH
Posts: 1,659
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
I had RC drop brackets with adjustable flex joint lower control arms and factory uppers. 5.5" lift. Had them for a year, I really liked them, much better ride. And flexed real well.
That being said I am now going to long arms. Just because my rig is becoming more "hardcore"
That being said I am now going to long arms. Just because my rig is becoming more "hardcore"
#13
Member
Join Date: Nov 2013
Location: Spring Hill, Kansas
Posts: 136
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
I purchased an RE kit off ebay for like $140 shipped, pretty good design in my opinion and easy to install. I haven't really any kind of improvement in driveability but I'll attribute that to the fact that I haven't bothered to do an alignment yet. Don't have any wobble or anything like that but a slight vibration that might be improved, I just haven't done it yet.
I would definitely recommend the RE set though, cheap and great product. One thing I would have to recommend is spray with the hell out of the shackle shoe bolts with PB Blaster or you might end up like this:
It also helps to know when to stop trying to force it...
I would definitely recommend the RE set though, cheap and great product. One thing I would have to recommend is spray with the hell out of the shackle shoe bolts with PB Blaster or you might end up like this:
It also helps to know when to stop trying to force it...
Last edited by KingsColor; 02-10-2014 at 12:09 AM.
