c5/6 manifolds dump in the middle of the manifold, that's always an option.

Feb 2, 2016 | 06:31 AM

#62

axekick

Member

Joined: Jul 2009

Posts: 200

Likes: 9

From: Austin, TX

Year: 1998

Model: Cherokee

Engine: 4.0, 6.0 in the works

Quote:

Originally Posted by s346k

c5/6 manifolds dump in the middle of the manifold, that's always an option.

I think the new Ls3 camaro headers dump at the back but straight down. I guess I'll figure it out when I get that far. Maybe I can just budget some Novak headers in by then.

Feb 2, 2016 | 11:38 AM

#63

s346k

CF Veteran

Joined: Feb 2012

Posts: 2,282

Likes: 18

From: central IN

Year: 1997

Engine: 4.0

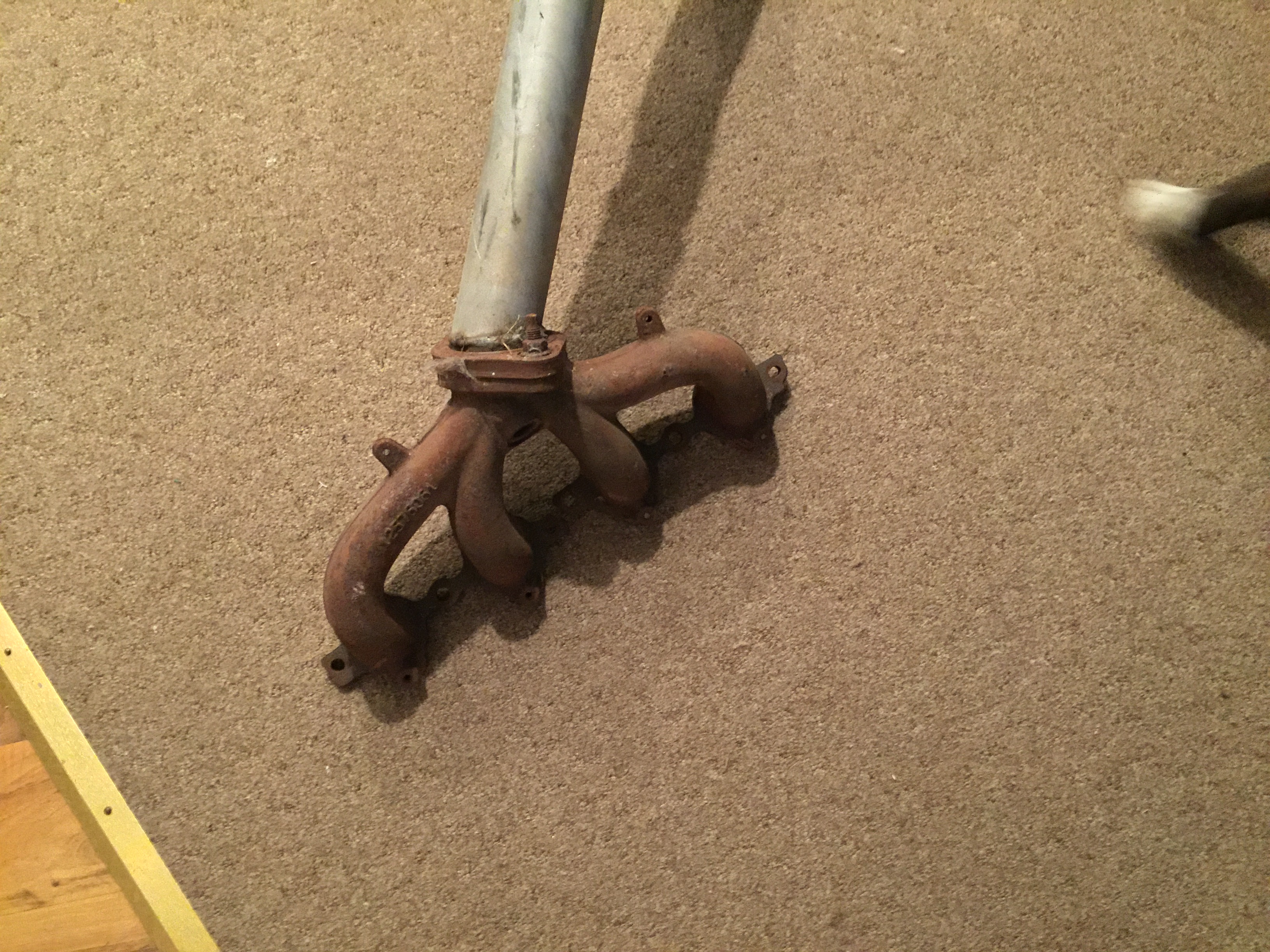

here is a pic for reference. that is off an ls2 car. even included my dogs foot, I see. added bonus.

Attached Thumbnails

Feb 2, 2016 | 12:15 PM

#64

Photojared

CF Veteran

Joined: Feb 2011

Posts: 1,944

Likes: 0

From: Henderson, NV

Year: 1999

Engine: 4.0L

Quote:

Originally Posted by s346k

here is a pic for reference. that is off an ls2 car. even included my dogs foot, I see. added bonus.

Those would dump right into the steering shaft. I'll take some pictures of the clearance later today...

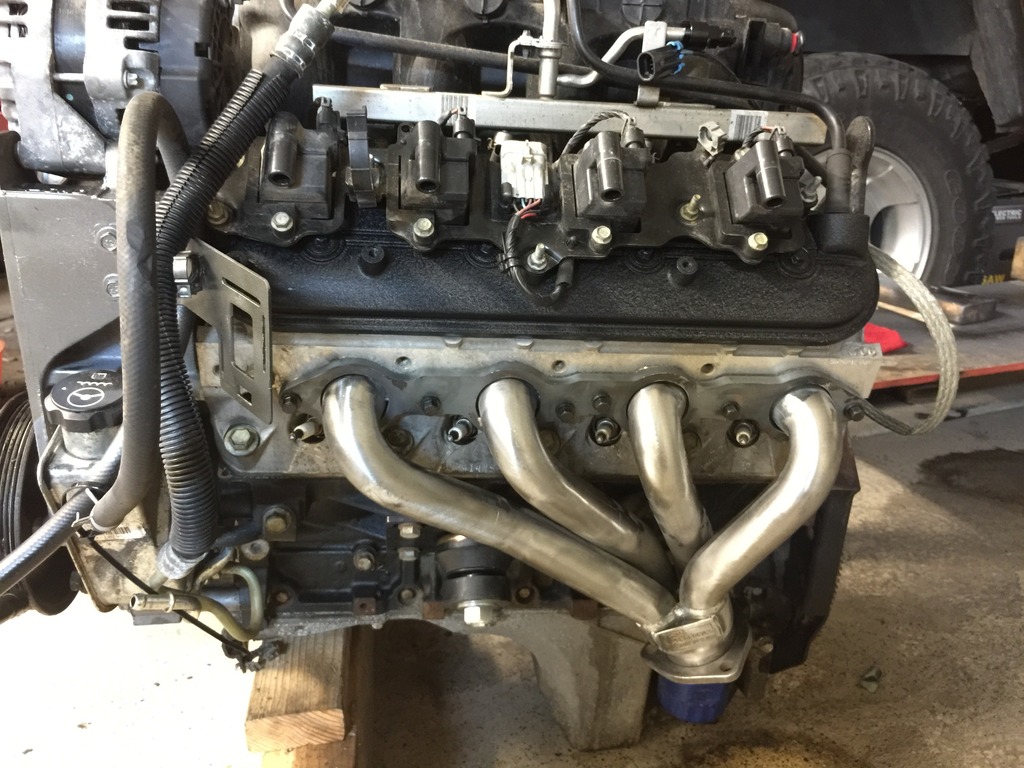

Driver:
Name: DAF35049-658C-48C2-84C6-5B8245DB9F2D_zpsjlrov8qw.jpg
Views: 280
Size: 234.6 KB
