I'm hoping to make this a thread that will be used by many others as reference. Point is I've looked all over the Internet and just can't seem to find a place I'd like to mount my CB head unit. Let's see where you all have yours mounted and how you have them mounted!



Try this
https://www.google.com/search?q=cb+m...spv=1&ie=UTF-8



you clearly can't read. I said I've searched but haven't found anywhere in happy with. Read before posting.



I placed mine in the typical spot, to the right of the console. Have you thought about an overhead console with CB? that's what I originally wanted to do but did not want to mess with the head liner.

http://www.4wheelparts.com/Interior-...FdKGfgodohQADw



the over head may be an option being I'm replacing my headliner soon. How sturdy is the console mount, and how well does it work with passengers in the seat? No complaints for leg room?



Mine is sturdy enough. The console is only 1/8" plastic. But I haven't had any complaints. But I guess it would really depend on how big your CB is. Mines pretty small I think it's only 7" wide and about 2" thick.



Pull your head out of your *** and search more. There are literally the exact same threads already on here.

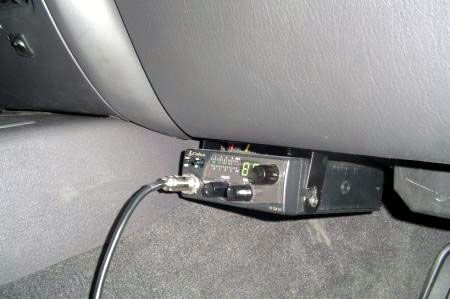

I mounted mine underneath the glove box.



have a picture of that??



You looked "all over the internet" and couldn't find a picture of that?



Now I think you are just trollin.



I meant of the actual mounting location. As in how it was mounted to the under dash. I want it secure but without breaking panels if it gets hit or kicked.



Here's a not so typical spot. I have a small external speaker mounted near the a-pillar.

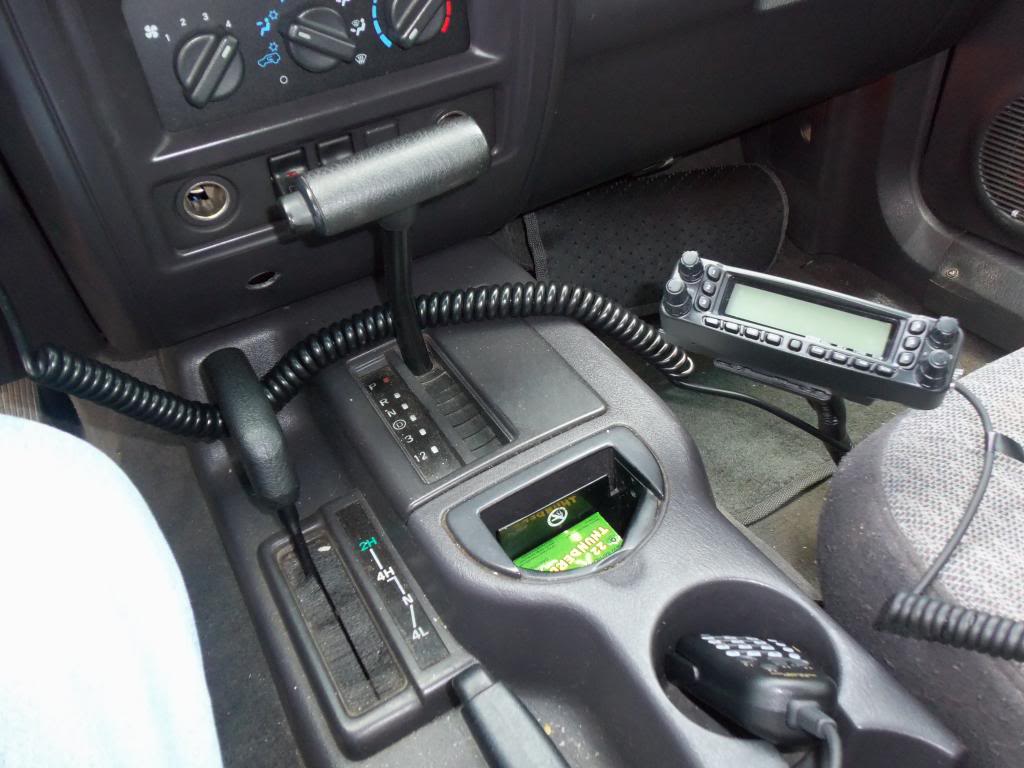

I use a remote unit Cobra under a $100 new a very small box about 2x3" mounts to the inside firewall behind dash. Then all you hook to it is a 12v supply, antenna, mic with all controls and if desired an external speaker (not needed in mine). This is the cleanest install there is for a CB radio where everything on the mic including a speaker. The other photo is one of my Amateur radios mounted on a Lido mount that sits under a seat bolt using a U shaped on the mount and a flexible arm.



Bolted to the bottom of the glove box



I mounted mine in between the visors using the screws that hold the visor clips. Just welded a strip of 1" x 1/8 flat steel to the mounting bracket it came with. Pretty easy. Very sturdy. Speaker is actually pointing so you can hear it decently. The cobras are nice but they are known for having their cords go bad. My father's lasted about 5 years and then he had to buy a whole new handheld (cobra wants 90$), uncle's lasted about 4. Most of the others are universal/dirt cheap. That and the fact that I got mine (Uniden PRO510XL) for 17 bucks NIB via CL are why I didn't go that route.
