Bendix ABS system write up w/ pics?
#1
Junior Member
Thread Starter
Join Date: Oct 2012
Location: Hawaii
Posts: 50
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 and all its greatness
Bendix ABS system write up w/ pics?
So I've been searching and searching and cannot find a write up with pics. I've never attempted something like this being life and death. I have the 1991 ABS system and the thing is crapping out on me. I purchased a 1996 brake set up....

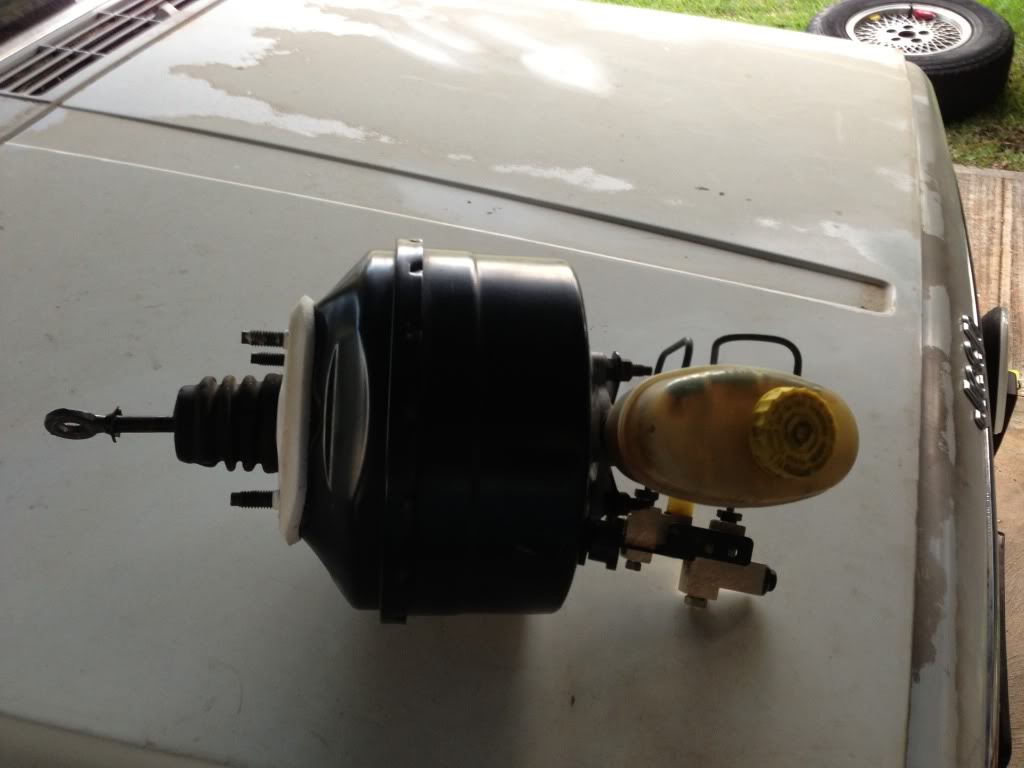

As you can see it has the MC Booster and a few lines. Now what I'm worried about is people saying that you have to cut and re do some lines. When I picked this guy up I figured it wouldve been a bolt in application. Anyway my main question is what lines have to be cut and reflared? Anyone know the adapter part numbers or what I need to look for when I go to checkers? Oh and something about smaller lines in the rear cylinder? I'm not even sure what they're talking about. Its sounds like I'm a complete moron but its more or less me trying to get every little detail broke down in preschool terms so I dont get myself or someone else killed. Thanks again folks
As you can see it has the MC Booster and a few lines. Now what I'm worried about is people saying that you have to cut and re do some lines. When I picked this guy up I figured it wouldve been a bolt in application. Anyway my main question is what lines have to be cut and reflared? Anyone know the adapter part numbers or what I need to look for when I go to checkers? Oh and something about smaller lines in the rear cylinder? I'm not even sure what they're talking about. Its sounds like I'm a complete moron but its more or less me trying to get every little detail broke down in preschool terms so I dont get myself or someone else killed. Thanks again folks
#3
Junior Member
Thread Starter
Join Date: Oct 2012
Location: Hawaii
Posts: 50
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 and all its greatness
Great link thanks. I'm not sure why any of this didnt come up. I knew how to do the booster swap on a normal non ABS vehicle but the ABS crap scares me a bit. Theres a website with a video on swapping the booster. BleepinJeep or something like that. Pretty good info
#4
CF Veteran
Join Date: Apr 2011
Location: Indianapolis
Posts: 4,825
Likes: 0
Received 2 Likes
on
2 Posts
Year: '99 and '91
Model: Cherokee
I took the bendix system out of my 91. It was having issues and then I found out it's a bad system and can be dangerous. So I was glad I got it out. There's a lof BS for that system in there. I got a good bit of money for it all at the JY.
Anyways, when I did it I needed to run new front hard lines, I couldn't get them removed from the brake hoses which needed replaced too.
The size of the fitting on the brake hoses didn't match up to the prop valve I had either. So running new line took care of that. I think we still had to use an adapter on one.
Brakes worked a lot better after getting rid of the bendix stuff. Probably safer now too.
Anyways, when I did it I needed to run new front hard lines, I couldn't get them removed from the brake hoses which needed replaced too.
The size of the fitting on the brake hoses didn't match up to the prop valve I had either. So running new line took care of that. I think we still had to use an adapter on one.
Brakes worked a lot better after getting rid of the bendix stuff. Probably safer now too.
#5
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
I used the fitting from donor master and ones from my proportion valve bought new line made my own ,no adapters needed...Just pay attention to flare types theres doubles and singles.
Last edited by freegdr; 06-24-2013 at 03:45 PM.
