ba 10/5 to internal ax15 to external ax15
01-07-2016, 10:24 AM
#1
Junior Member
Thread Starter
Join Date: Dec 2015
Location: Murrells Inlet,SC/Smithfield,VA
Posts: 60
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L
ba 10/5 to internal ax15 to external ax15
I've got a line on a internal slave ax15 for a decent price but the synchros need to be replaced, I'd want to rebuild it anyway before putting it in but In theory I'd be able to convert it to an externally mounted slave using a different bell housing + finding a clutch fork, and new master cylinder and what not. Correct?
01-08-2016, 06:37 PM
#3
CF Veteran
Join Date: Oct 2013
Location: Miami, fl
Posts: 7,378
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
You also need an external slave bearing...part # 18887.03
You can buy new/used/ or even get them out the Jy off of 2wd vehicles...
You can also find them not only in xj/yj/tj
You can also find them in dodge Dakotas...
Left is external slave where the throw out bearing slides on
The right is the internal Slave bearing

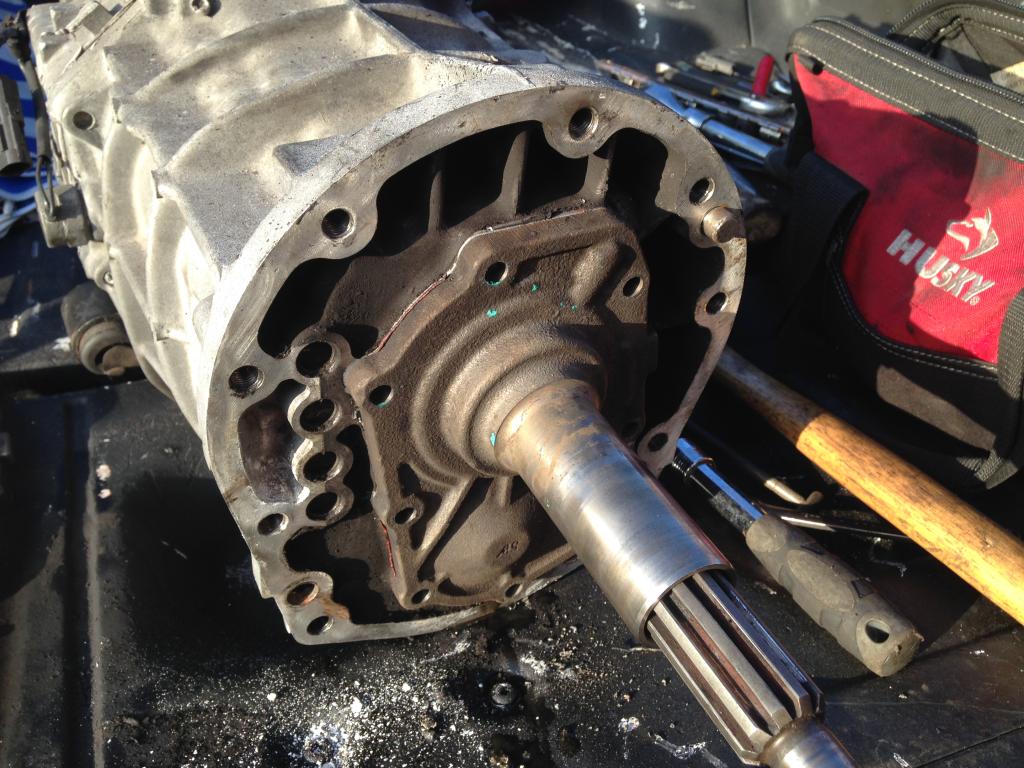

Internal Slave ax15
Converted to external Slave
You can buy new/used/ or even get them out the Jy off of 2wd vehicles...
You can also find them not only in xj/yj/tj
You can also find them in dodge Dakotas...
Left is external slave where the throw out bearing slides on
The right is the internal Slave bearing
Internal Slave ax15
Converted to external Slave
Last edited by 88whitecomanche; 01-08-2016 at 06:41 PM.
01-08-2016, 07:48 PM
#4
Junior Member
Thread Starter
Join Date: Dec 2015
Location: Murrells Inlet,SC/Smithfield,VA
Posts: 60
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L
You also need an external slave bearing...part # 18887.03
You can buy new/used/ or even get them out the Jy off of 2wd vehicles...
You can also find them not only in xj/yj/tj
You can also find them in dodge Dakotas...
Left is external slave where the throw out bearing slides on
The right is the internal Slave bearing
Internal Slave ax15
Converted to external Slave
You can buy new/used/ or even get them out the Jy off of 2wd vehicles...
You can also find them not only in xj/yj/tj
You can also find them in dodge Dakotas...
Left is external slave where the throw out bearing slides on
The right is the internal Slave bearing
Internal Slave ax15
Converted to external Slave
01-08-2016, 08:46 PM
#5
CF Veteran
Join Date: Oct 2013
Location: Miami, fl
Posts: 7,378
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Make sure you get the correct pilot bearing for your swap...
There's guys that buy a pilot bearing and assume it will fit and would have problems just installing the ax15...measure the tip and research for the correct size and part#
There's guys that buy a pilot bearing and assume it will fit and would have problems just installing the ax15...measure the tip and research for the correct size and part#
01-08-2016, 11:51 PM
#6
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Last edited by freegdr; 01-08-2016 at 11:54 PM.
