98 Cherokee SE Advice *PICS*
#1
Member
Thread Starter
Join Date: Jun 2016
Posts: 100
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
98 Cherokee SE Advice *PICS*
hi - i love cars, and since living in new york city have not owned one for the past 6 years.
so for some reason, i bought a 98 Jeep XJ SE with 170k on a whim about a month ago for $1900. I've since put more money into replacing exhaust, new rubber, front brakes/rotors, and some other random small stuff.
i am the opposite of mechanically inclined, but am using this truck as an intro to light wrenching. I don't have any grand plans for the car, except getting it as functional as possible and a very mild lift (2").
the lift is what i mainly have questions about, because as you'll see in the below pictures the whole suspension system needs some TLC.
anyway, today I took a bunch of photos...

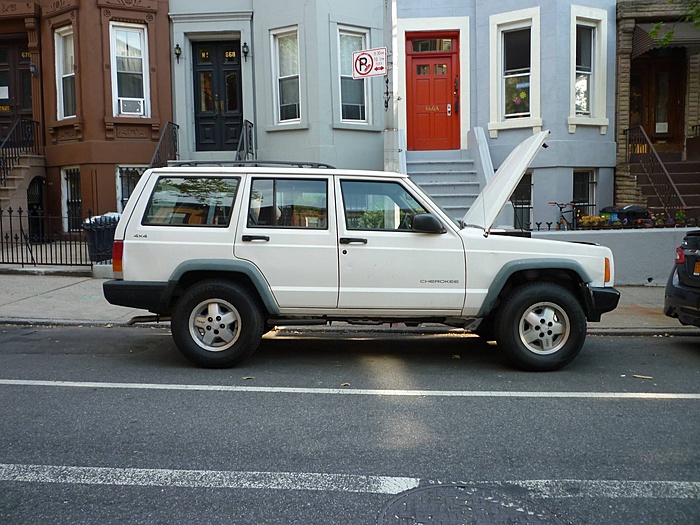

There it is... roll up windows, manual locks, but it's a 4x4 with the 4.0 so F it.

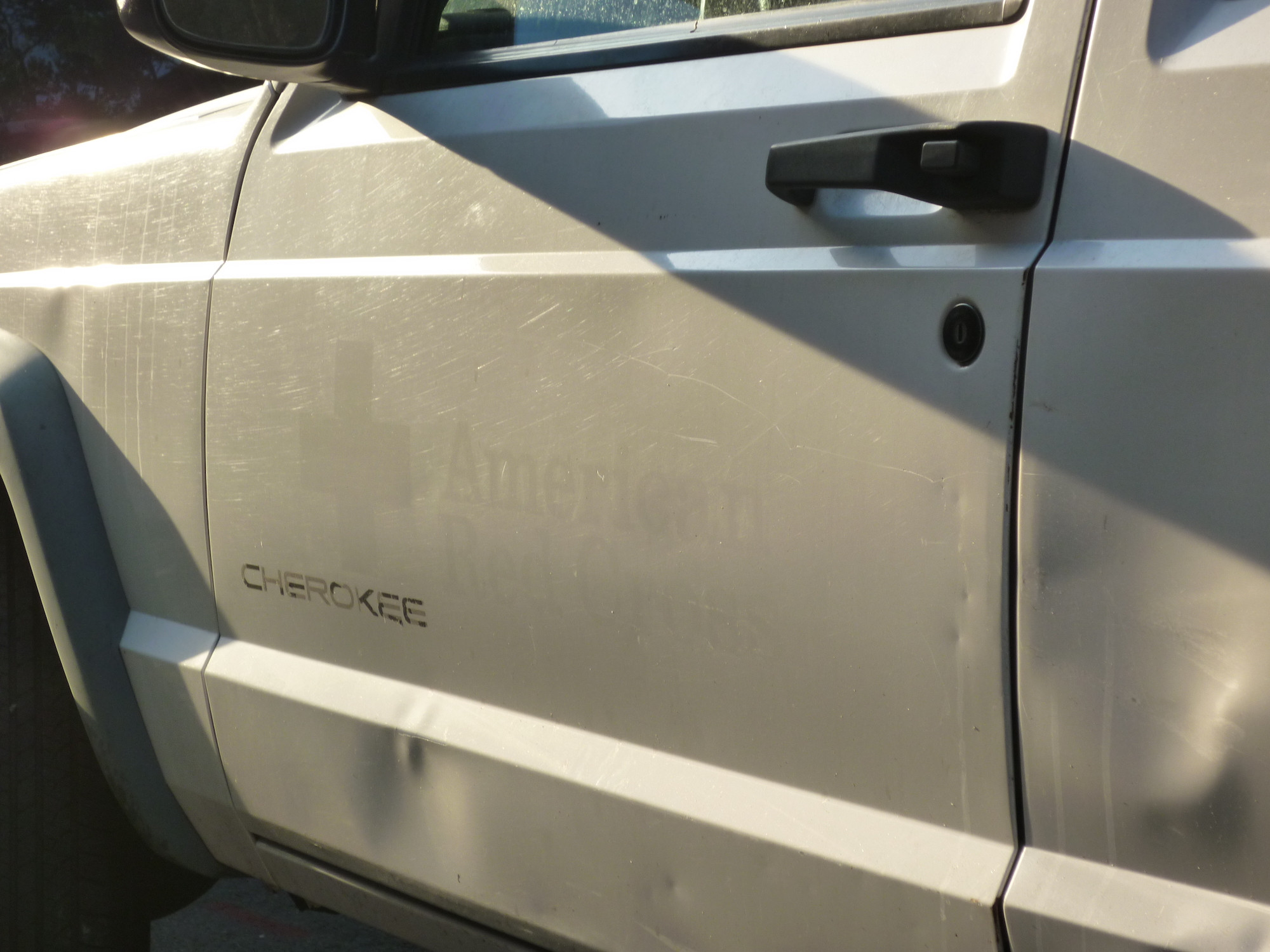

Apparently was a Red Cross Fleet vehicle
Under the hood, notice anything?
I found out today that the AC Compressor is missing.
Here's the connects that are zip tied to something else. cool! (sarcasm)
One of the shocks up front. nice spray paint...
Other side, pretty rusty
No idea what those arms and bushings on the right are for, but this is the kind of stuff I hate seeing out of order. It looks bent?

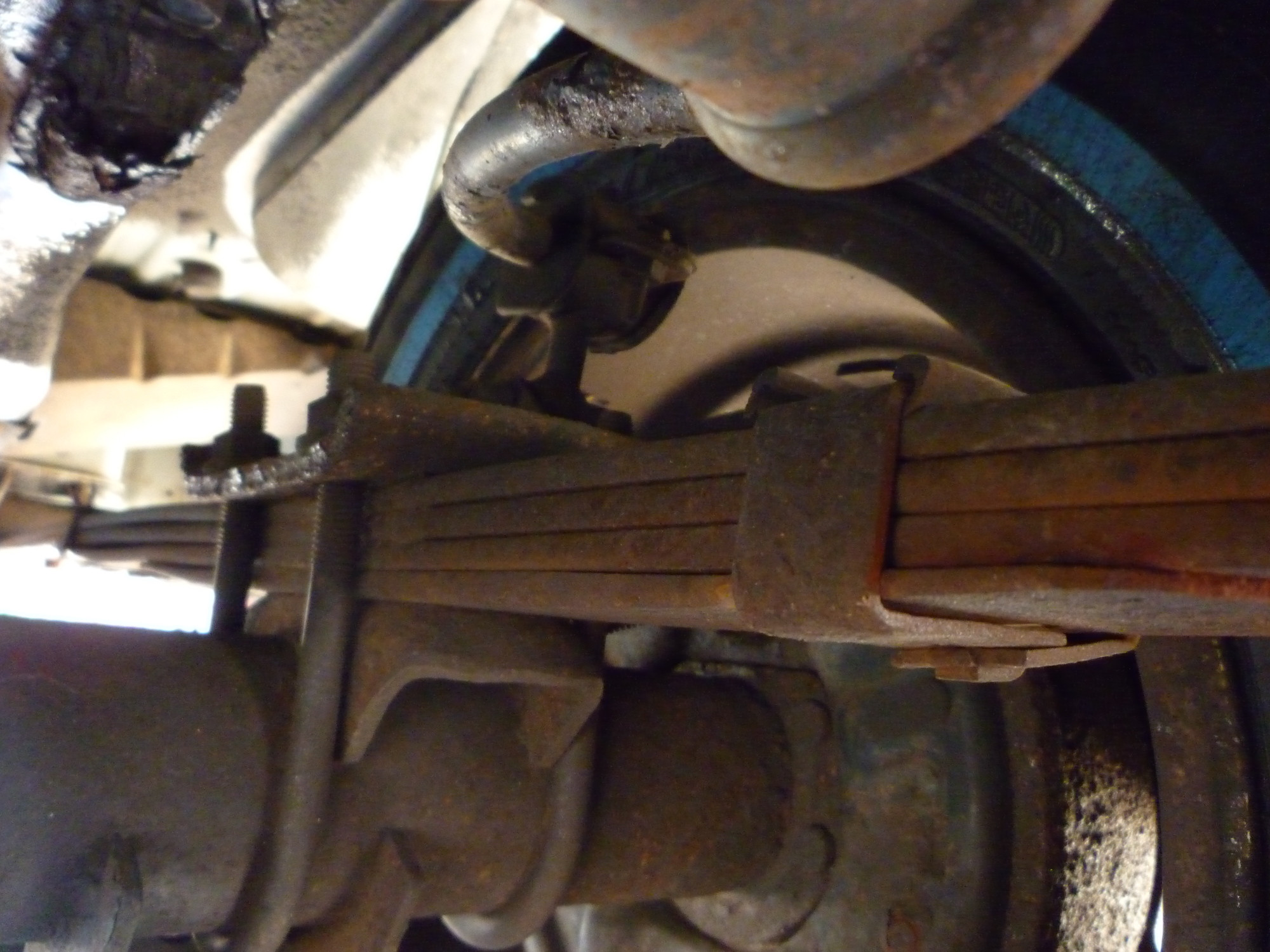

Leafs are basically flat. By the way, what's that thing in the upper left corner of the pic?
It's rotted out. anyone know what it is?
More flat leafs on other side
Rotted shackles
Since I have no idea how old these parts are, I am of the mind that I should be replacing just about everything I can. I want to get new springs, leafs, shackles, shocks, and anything else that will help the truck overall.
I have no plans to go wheeling in NY, and I just bought new 235/75/15 rubber so I think a 2" lift is plenty for me.
what's some good advice for lifting this thing in terms of method? Should i get stock springs, stock leafs, and then buy a kit with spring spacers/shocks/add a leaf? Or should I simply install a set of 2" higher leafs in back and 2" higher springs up front? With no spacers?
I feel like I can start from scratch here and replace everything, just not sure the best way to go.
would love to hear your thoughts, and also would love to know if you see anything in the photos I should look at...
thank you all in advance!
so for some reason, i bought a 98 Jeep XJ SE with 170k on a whim about a month ago for $1900. I've since put more money into replacing exhaust, new rubber, front brakes/rotors, and some other random small stuff.
i am the opposite of mechanically inclined, but am using this truck as an intro to light wrenching. I don't have any grand plans for the car, except getting it as functional as possible and a very mild lift (2").
the lift is what i mainly have questions about, because as you'll see in the below pictures the whole suspension system needs some TLC.
anyway, today I took a bunch of photos...
There it is... roll up windows, manual locks, but it's a 4x4 with the 4.0 so F it.
Apparently was a Red Cross Fleet vehicle
Under the hood, notice anything?
I found out today that the AC Compressor is missing.
Here's the connects that are zip tied to something else. cool! (sarcasm)
One of the shocks up front. nice spray paint...
Other side, pretty rusty
No idea what those arms and bushings on the right are for, but this is the kind of stuff I hate seeing out of order. It looks bent?
Leafs are basically flat. By the way, what's that thing in the upper left corner of the pic?
It's rotted out. anyone know what it is?
More flat leafs on other side
Rotted shackles
Since I have no idea how old these parts are, I am of the mind that I should be replacing just about everything I can. I want to get new springs, leafs, shackles, shocks, and anything else that will help the truck overall.
I have no plans to go wheeling in NY, and I just bought new 235/75/15 rubber so I think a 2" lift is plenty for me.
what's some good advice for lifting this thing in terms of method? Should i get stock springs, stock leafs, and then buy a kit with spring spacers/shocks/add a leaf? Or should I simply install a set of 2" higher leafs in back and 2" higher springs up front? With no spacers?
I feel like I can start from scratch here and replace everything, just not sure the best way to go.
would love to hear your thoughts, and also would love to know if you see anything in the photos I should look at...
thank you all in advance!
#2
CF Veteran
Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Welcome to the forum! Looks like a nice Jeep to start with. As for your first question that little link is a sway bar link, it prevents excessive body roll while cornering. The second, rotted it rubber on the rear is a bump stop which prevents you from maxing out the suspension and rubbing parts/causing damage. I would recommend getting new leaf packs for sure being they are sagged and flat. Add a leafs do not last long usually, and blocks cause a lot of axle wrap. Over time they crack and are not a long term lift. You could get some OEM leaf springs and some 2" lift shackles being the shackles look pretty rusty. They make a 2" coil spacer for the front that would fit your use well. With a 2" lift you can fit 30" tires well, and at that lift you won't need anything other than springs and some longer shocks! Good luck with the build, excited to see where it goes!
Justin
Justin
#3
CF Veteran
Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Here's a few links that may help you out:
Leafs:
http://m.quadratec.com/products/prod...id=56010+11+07
Shackles:
http://www.roughcountry.com/jeep-xj-...kles-1077.html
Coil spacer:
http://m.quadratec.com/products/prod...=16190+2000+07
Coil spring(if you went this route):
http://www.ironrockoffroad.com/10662.html
Shocks:
http://www.ironrockoffroad.com/11103.html
For a daily driven rig with no wheeling those are all you really need.. It's a pretty good foundation to start with. I wouldn't worry about the bump stops if you're just driving it daily on the roads.
Leafs:
http://m.quadratec.com/products/prod...id=56010+11+07
Shackles:
http://www.roughcountry.com/jeep-xj-...kles-1077.html
Coil spacer:
http://m.quadratec.com/products/prod...=16190+2000+07
Coil spring(if you went this route):
http://www.ironrockoffroad.com/10662.html
Shocks:
http://www.ironrockoffroad.com/11103.html
For a daily driven rig with no wheeling those are all you really need.. It's a pretty good foundation to start with. I wouldn't worry about the bump stops if you're just driving it daily on the roads.
#5
Member
Thread Starter
Join Date: Jun 2016
Posts: 100
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Here's a few links that may help you out:
Leafs:
http://m.quadratec.com/products/prod...id=56010+11+07
Shackles:
http://www.roughcountry.com/jeep-xj-...kles-1077.html
Coil spacer:
http://m.quadratec.com/products/prod...=16190+2000+07
Coil spring(if you went this route):
http://www.ironrockoffroad.com/10662.html
Shocks:
http://www.ironrockoffroad.com/11103.html
For a daily driven rig with no wheeling those are all you really need.. It's a pretty good foundation to start with. I wouldn't worry about the bump stops if you're just driving it daily on the roads.
Leafs:
http://m.quadratec.com/products/prod...id=56010+11+07
Shackles:
http://www.roughcountry.com/jeep-xj-...kles-1077.html
Coil spacer:
http://m.quadratec.com/products/prod...=16190+2000+07
Coil spring(if you went this route):
http://www.ironrockoffroad.com/10662.html
Shocks:
http://www.ironrockoffroad.com/11103.html
For a daily driven rig with no wheeling those are all you really need.. It's a pretty good foundation to start with. I wouldn't worry about the bump stops if you're just driving it daily on the roads.
Any reason for heavy duty leafs? Are those oem height/specs?
And new springs vs spacers.... Any opinion on which to do?
#6
CF Veteran
Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Originally Posted by uptownbill
Awesome thank you. Couple questions.
Any reason for heavy duty leafs? Are those oem height/specs?
And new springs vs spacers.... Any opinion on which to do?
Any reason for heavy duty leafs? Are those oem height/specs?
And new springs vs spacers.... Any opinion on which to do?
#7
Newbie
Join Date: Apr 2016
Location: Livonia, MI
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L I6
The "rotted piece" is what's left of your bump stop. If you look at the pic just below that one, in the upper right corner shows what it's supposed to look like. If you're looking for a smaller lift, you could do an add-a-leaf in the rear and use ZJ front springs and lower control arms for 2"-2.5". That's what my XJ is equipped with and i'm currently running 32" JK wheels & tires w/out any issues. You should look into some badass front/rear bumpers so people will think twice about the park-by-feel in NYC.
Trending Topics
#8
CF Veteran
Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Originally Posted by 2000_MI_XJ
The "rotted piece" is what's left of your bump stop. If you look at the pic just below that one, in the upper right corner shows what it's supposed to look like. If you're looking for a smaller lift, you could do an add-a-leaf in the rear and use ZJ front springs and lower control arms for 2"-2.5". That's what my XJ is equipped with and i'm currently running 32" JK wheels & tires w/out any issues. You should look into some badass front/rear bumpers so people will think twice about the park-by-feel in NYC.
#9
Member
Thread Starter
Join Date: Jun 2016
Posts: 100
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
The "rotted piece" is what's left of your bump stop. If you look at the pic just below that one, in the upper right corner shows what it's supposed to look like. If you're looking for a smaller lift, you could do an add-a-leaf in the rear and use ZJ front springs and lower control arms for 2"-2.5". That's what my XJ is equipped with and i'm currently running 32" JK wheels & tires w/out any issues. You should look into some badass front/rear bumpers so people will think twice about the park-by-feel in NYC.
#10
Member
Thread Starter
Join Date: Jun 2016
Posts: 100
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
What do y'all think of Iron Rock shocks? I'm not gonna shell out the cash for Bilstein so looking for best bang/buck. Are Zone better than Iron Rock? or does it not really matter at this price point?
http://zoneoffroad.com/zone-offroad-...-wrangler/4979
http://zoneoffroad.com/zone-offroad-...-wrangler/4979
#11
CF Veteran
Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Both are a budget shock but I would personally go with iron rock off roads shocks. I put them on my girlfriends XJ and it has nice ride to it. Her jeep has a 2" lift as well.
#12
Newbie
Join Date: Apr 2016
Location: Livonia, MI
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L I6
Couple of simple bumpers of front would provide ample protection without adding a ton of weight.
http://www.olympic4x4products.com/im...bs-rock-xj.jpg
If you can track down a set of (4) red OEM shocks off a JK Rubicon you could run those after you lift too. There's plenty of how-to's out there and they bolyt up pretty easily.
http://www.olympic4x4products.com/im...bs-rock-xj.jpg
If you can track down a set of (4) red OEM shocks off a JK Rubicon you could run those after you lift too. There's plenty of how-to's out there and they bolyt up pretty easily.
#13
Member
Thread Starter
Join Date: Jun 2016
Posts: 100
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
#14
CF Veteran
Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Originally Posted by uptownbill
heh, sounds good to me
i'm fine with driving a lady XJ
i'm fine with driving a lady XJ
#15
Member
Thread Starter
Join Date: Jun 2016
Posts: 100
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
