76/77 are the only desirable years for old 1/2t d44. you can cut those radius wedges off and do a 3 link. the stock axle by itself is worth $600-$800 in California (everything really is more expensive here)

you sure you know what all is involved in this swap? usually people have a full build plan laid out before going and physically picking up their axle. You're most likely going to be looking at new bearings, ball joints, cutting and welding, new lockouts, seals, differential rebuild. new wheels for the correct lug pattern, building steering, definitely new ujoints. it's a big undertaking and the budget could easily reach $2000 and beyond and you still have to worry about swapping in a rear axle with it.



I got a ford 8.8 I'm gonna throw in with 4.10 gears. The d44 guy wants 450$ needs one hub he says. I can't find a build three or a truss for that matter to make things easier.axle has disc brakes this and I know steering needs to be made.



yeah I guess that pretty much covers everything. brakes and steering


well TNT makes a ford D44 truss, I'm sure they would be happy to weld on or include whichever bracketry you would like
https://www.tntcustoms.com/jeep_part...dius_arm_style



Yeah tnt customs has a truss for just about any front axle you can dream of using.



it has cast wedges dosnt it? they would have th be ground off no? put a truss on and add control arm mounts so i don't have to use radius arms?



Yes, you will have the option to grind off the radius brackets on years 76/77 only. And you should. A 3 link is definitely the way to go



It sounds like you need to do a ton more searching and reading before your ready to try a axle swap on a xj.



I'll call tnt and see if they can make a truss for it for me. Hopefully they will be able to



there is nothing really wrong with the ford radius arms. sure they're not a 3 link setup, but i've seen 78/79 axles installed in an xj using extended ford radius arms and it still flexed like a ****.

i have a set of these axles in my garage thinking one day i was gonna swap them into one of my jeeps, just haven't thought out the arm setup i was gonna use yet. jeffs bronco graveyard sells custom long arm setups for these ford axles but i've seen other guys weld on extensions and mount them up to their cross members.

i was just hoping someone would come out with a truss that would fit over these cast wedges to accommodate upper/lower arm setups to make it easy.

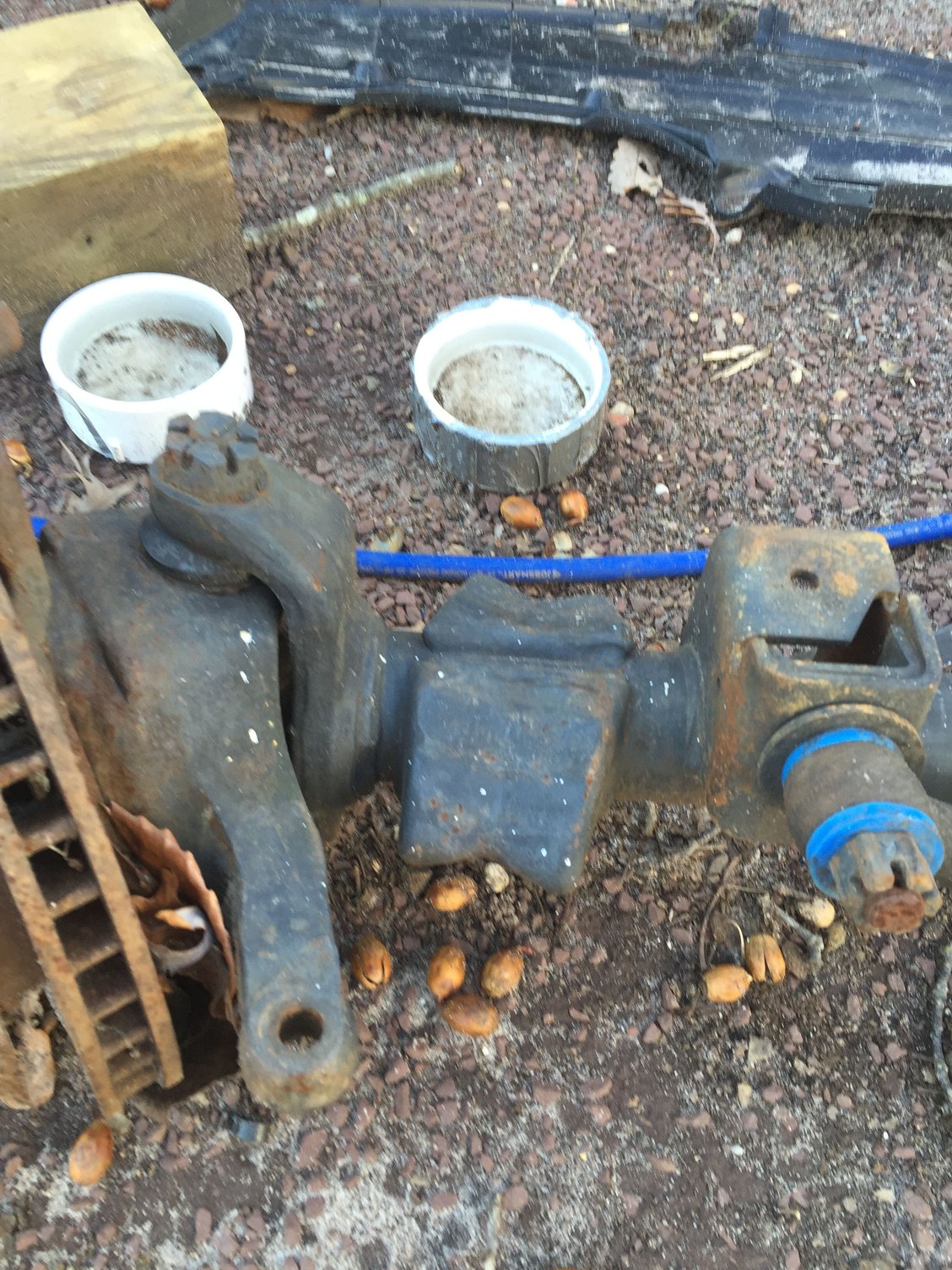

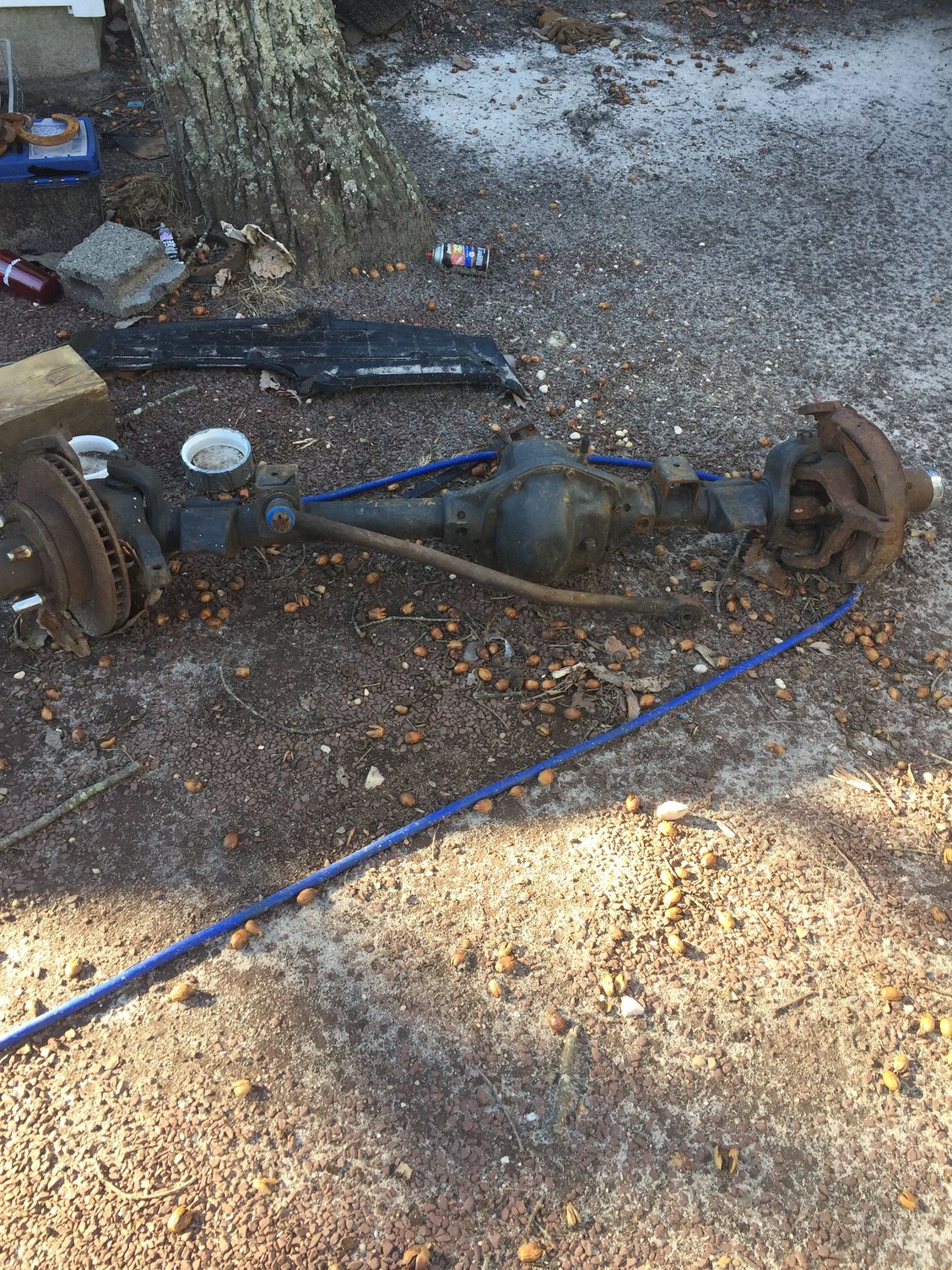

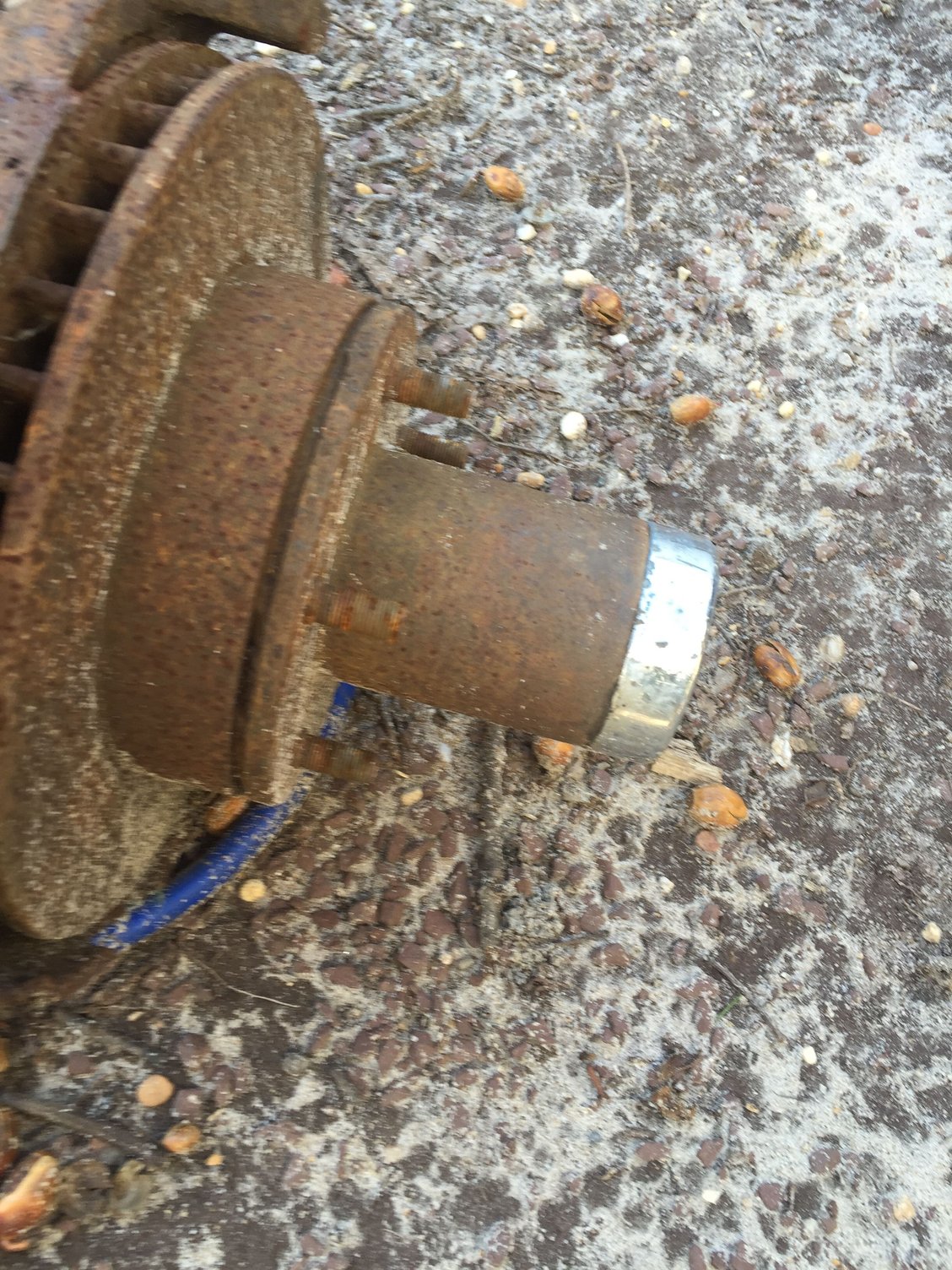

These are the pics the guy sent me



those look like steel weld on wedges to me

this is a cast wedge



so can i cut them off and get a truss made up or is this axle not worth it



make sure that they are steel and not cast. and yeah, steel can be cut off and a truss can be welded on for control arms. there are already a few companys that make a truss for ford d44 fronts, just need to clean up the tubes so the truss will fit.



And you might want to rebuild the axle like ball joints u joints the brakes etc etc.



Dose it matter if it's a full size or not because this axle is the Same size as a d30 I think not full size.size
