37s on my xj help

Thread Tools

Search this Thread

Old Feb 1, 2011 | 10:21 AM
  #1
dboots's Avatar
Thread Starter
Member

Joined: Aug 2010
Posts: 173
Likes: 0
From: papillion nebraska
Year: 1992
Model: Cherokee
Engine: 4.0
Default 37s on my xj help

Ok so what is the smallest lift I can have and run 37s and still be able to flex it out I'm gettin a truck next week and want to put my 33s on the truck cause they're great a/t tires and get a set of 37 m/t for the jeep and also when I get the truck the jeep will be my dedicated trail rig but any info and pics yall have to offer would be greatly appreciated
Reply
Old Feb 1, 2011 | 10:29 AM
  #2
thelittlebrutethatcould's Avatar
Member

Joined: Oct 2010
Posts: 144
Likes: 0
From: Lookout Valley
Year: 1996
Model: Cherokee
Engine: 4.0
Default

SUPPOSEDLY, according to most of the manufacturers, an 8" long arm lift can flex out on 35's with fender trimming...but i run 33's on a 4.5 long arm with fenders trimmed as far as they can be while still looking decent...surely you can do some modification to make it all work out...but you're definitely gonna have to address your drivetrain if you run anything bigger than a 33 IMO
Reply
Old Feb 1, 2011 | 10:53 AM
  #3
Kenne21's Avatar
Seasoned Member

Joined: Jan 2011
Posts: 349
Likes: 0
From: Round Rock, TX
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Depending how much flex you're looking for I've seen guys with 6.5" long arm lifts and 36s flexing quite a bit. They just trimed alot of their fenders, and beat in the inner fender well some. You could most likely get by with the same, but for massive flex I would just splurge for the 8" long arm lift. Like said before you will need to address drivetrain though. The guys with 36s broke axles alot or had upgraded to dana 44s or dana 60s.
Reply
Old Feb 1, 2011 | 11:20 AM
  #4
VTJeep's Avatar
CF Veteran

Joined: Jul 2010
Posts: 4,930
Likes: 3
From: 802
Year: 99
Model: Cherokee
Engine: 4.0
Default

there was an article in the last Jp Magazine about some of the benefits/drawbacks between 33, 35 and 37" tires. i dont wanna get long winded with this post, so ill suffice to say, 37's arent necessarily better than 33's ar 35's... idk just thinking out loud! also, i suppose the saying go big or go home might apply here. deff. post some pics either way
Reply
Old Feb 1, 2011 | 11:43 AM
  #5
Spdkilz88's Avatar
Member

Joined: Jan 2011
Posts: 123
Likes: 0
From: Clemson, SC
Year: 1988
Model: Cherokee
Engine: 4.0
Default

i want to see pictures as well
Reply
Old Feb 1, 2011 | 01:15 PM
  #6
rweaver138's Avatar
CF Veteran

Joined: Oct 2009
Posts: 1,640
Likes: 0
From: Northeast CT
Year: 99
Model: Cherokee
Engine: 4.0
Default

before all this tire yap yap.. are you planning on upgrading axles?
Reply
Old Feb 1, 2011 | 01:18 PM
  #7
96_xj's Avatar
Honorary Moderator

Joined: Mar 2010
Posts: 8,135
Likes: 16
From: Gilbert AZ/Las Cruces NM
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
Default

x2

if you are upgrading and going to full widths you can go lower... if you are running stockers you will need to go higher...

1) you will tear the stock axles apart
2) you want to go wider track width with 37's

but there is a guy on here with 36's and 4" lift on full widths. It is all about droop rather than up travel. and with a properly set up suspension about 4-5" uptravel is all you need.
Reply
Old Feb 1, 2011 | 04:47 PM
  #8
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Originally Posted by 96_xj
x2

if you are upgrading and going to full widths you can go lower... if you are running stockers you will need to go higher...

1) you will tear the stock axles apart
2) you want to go wider track width with 37's

but there is a guy on here with 36's and 4" lift on full widths. It is all about droop rather than up travel. and with a properly set up suspension about 4-5" uptravel is all you need.
if you are going to be beating your xj on rocks all day you will have to upgrade at least the rear axle if your going to wheel with care stock axles can and will work been running stock axle with 38s for a while and no problem what so ever gearing change is a must either way
Reply
Old Feb 1, 2011 | 07:37 PM
  #9
dev_daddy's Avatar
CF Veteran

Joined: Dec 2010
Posts: 2,366
Likes: 0
From: Spanish Fork, Utah
Year: 1989
Model: Cherokee
Engine: Renix 4.0L
Default

I'm planning on getting full widths and 6.5'' long arm. and running 37's. that's probably as low as it can get
Reply
Old Feb 1, 2011 | 07:47 PM
  #10
krawlthis's Avatar
Senior Member

Joined: May 2010
Posts: 745
Likes: 1
From: Here, There, Everywhere
Year: 1997
Model: Grand Cherokee
Engine: 5.2
Default

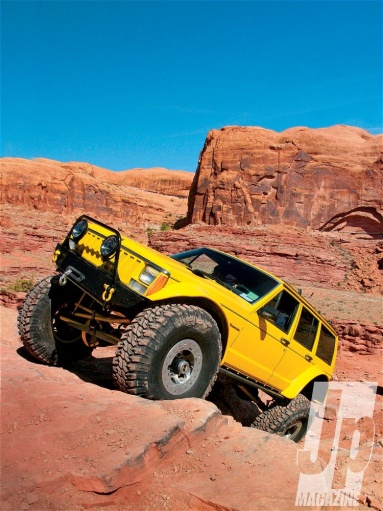

3 inch lift on 40s. this thing is sweet. was in jp magazine37s on my xj help-154_1001_02_o-1986_jeep_cherokee_xj-rock_crawling.jpg
Reply
Old Feb 1, 2011 | 08:06 PM
  #11
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Originally Posted by krawlthis
3 inch lift on 40s. this thing is sweet. was in jp magazineAttachment 36272
no way
Reply
Old Feb 1, 2011 | 08:06 PM
  #12
dev_daddy's Avatar
CF Veteran

Joined: Dec 2010
Posts: 2,366
Likes: 0
From: Spanish Fork, Utah
Year: 1989
Model: Cherokee
Engine: Renix 4.0L
Default

Originally Posted by krawlthis
3 inch lift on 40s. this thing is sweet. was in jp magazine<img src="https://www.cherokeeforum.com/attachment.php?attachmentid=36272"/>
I remember that article. Drooled. So sweet
Reply
Old Feb 1, 2011 | 08:08 PM
  #13
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Originally Posted by freegdr
no way
ill say it again no way
Reply
Old Feb 1, 2011 | 08:10 PM
  #14
IXNAYXJ's Avatar
Junior Member

Joined: Jan 2011
Posts: 81
Likes: 0
From: Issaquah, Wa
Year: 1998
Model: Cherokee
Engine: 4.0
Default

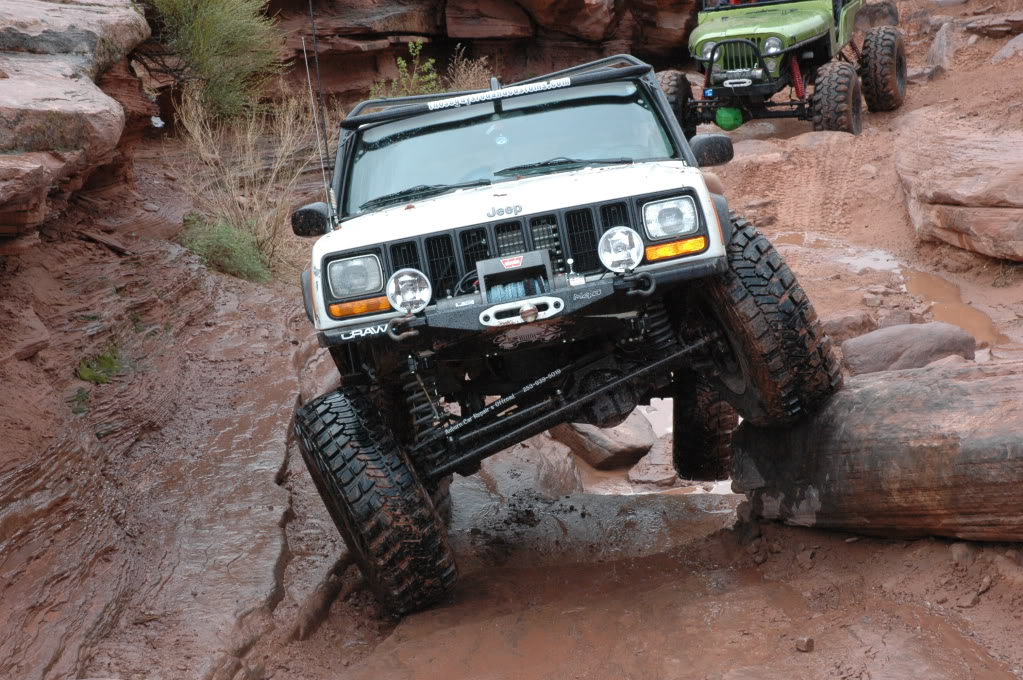

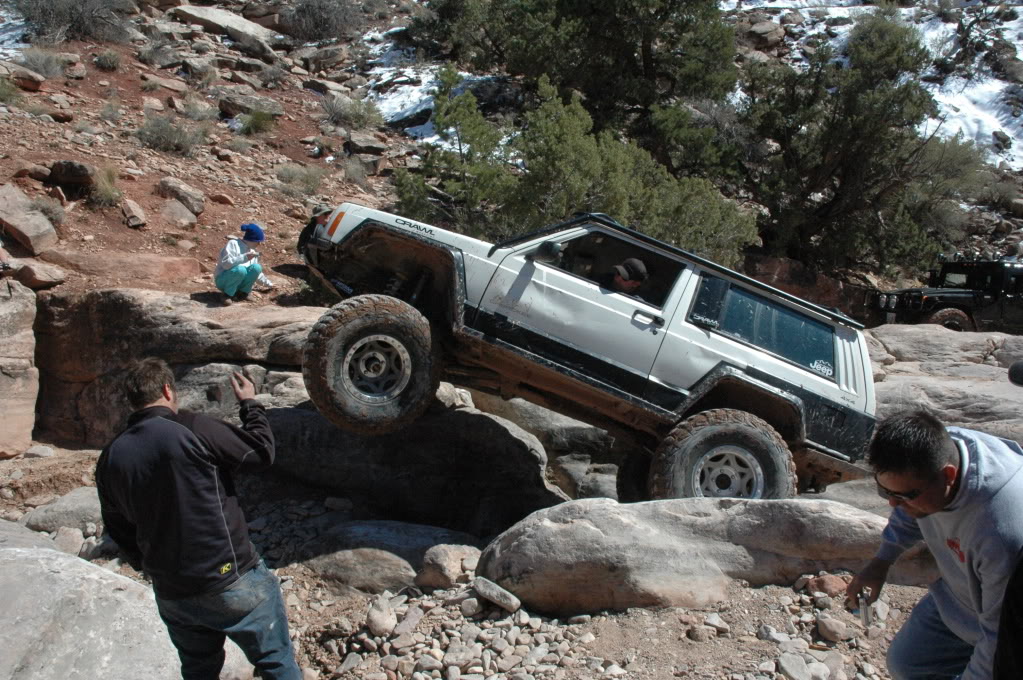

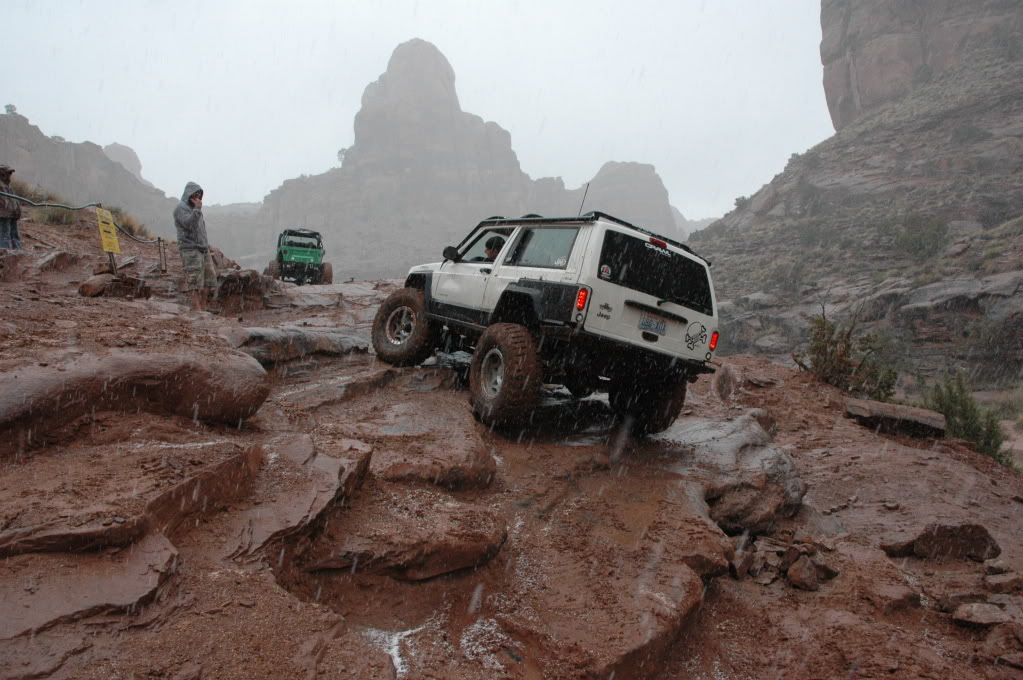

I'm running 37x12.50 MT/R Kevlars with about 6" of lift. I don't have a lot of up-travel, but the whole package is very stable in side hill situations which is far more important, IMHO. I'm running sligtly wider than stock axles and lots of bump-stop.

Name:  042.jpg
Views: 9313
Size:  162.8 KB

Name:  057.jpg
Views: 14792
Size:  205.8 KB

Name:  159.jpg
Views: 9466
Size:  228.5 KB
Reply
Old Feb 1, 2011 | 08:10 PM
  #15
dev_daddy's Avatar
CF Veteran

Joined: Dec 2010
Posts: 2,366
Likes: 0
From: Spanish Fork, Utah
Year: 1989
Model: Cherokee
Engine: Renix 4.0L
Default

I think that's everyones dream... atleast its mine
Reply
