2,500 lb winch for lite work
#1
Seasoned Member
Thread Starter
Join Date: May 2013
Location: North Atlantic - Delaware
Posts: 410
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: Inline 6 4.0

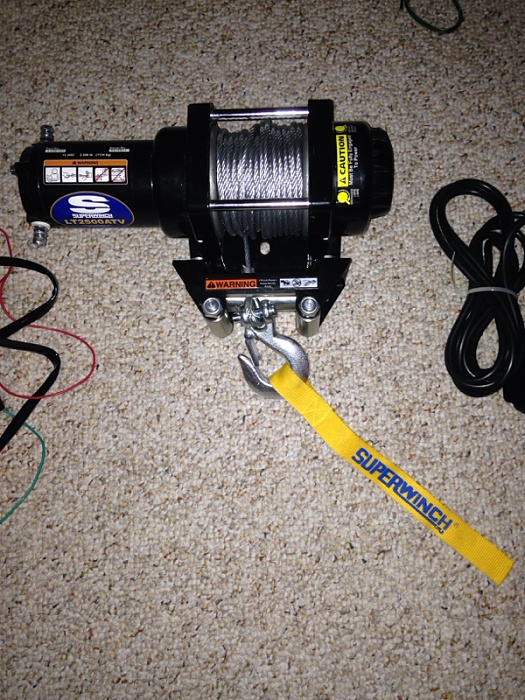

Hey everyone. So I got a super stupid deal on a winch today. I want a 12,000 lb on the front of my jeep and a smaller one on the back for lifting heavy stuff or easy small pulling. Lifting: I was thinking of mounting it to the roof at the back of the cargo area so I could winch in my generator and other heavy stuff that a winch could easily just pull. Think like a winch on a boat trailer. Small pulling: moving debris off the road like a downed tree or large limbs that are just too big. Now I've done research and know that this would NOT be for a super stuck situation and or pulling medium to large vehicles. This would be for light to medium use when the rear of the vehicle will work well. I'm not looking for reason to have a rear winch or an ATV winch or not... My problem is where to mount it and how to wire it in. Can I mount it to the roof? What type of reinforcement will need to be done to make it happen? Safe??? How and where could I mount it on the back of the xj and still use my liftgate without opting for heavy duty bumper. Again, safe?
#2
Member
Join Date: Dec 2014
Location: South Florida
Posts: 227
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 L
Hey everyone. So I got a super stupid deal on a winch today. I want a 12,000 lb on the front of my jeep and a smaller one on the back for lifting heavy stuff or easy small pulling. Lifting: I was thinking of mounting it to the roof at the back of the cargo area so I could winch in my generator and other heavy stuff that a winch could easily just pull. Think like a winch on a boat trailer. Small pulling: moving debris off the road like a downed tree or large limbs that are just too big. Now I've done research and know that this would NOT be for a super stuck situation and or pulling medium to large vehicles. This would be for light to medium use when the rear of the vehicle will work well. I'm not looking for reason to have a rear winch or an ATV winch or not... My problem is where to mount it and how to wire it in. Can I mount it to the roof? What type of reinforcement will need to be done to make it happen? Safe??? How and where could I mount it on the back of the xj and still use my liftgate without opting for heavy duty bumper. Again, safe?
#3
Senior Member
Join Date: Oct 2011
Location: Longview, TX
Posts: 689
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
As Stud said, a winch plate in the receiver would be the only way to do it safely. Unless you want to reinforce your entire cargo area to support the stresses.
#4
Seasoned Member
Thread Starter
Join Date: May 2013
Location: North Atlantic - Delaware
Posts: 410
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: Inline 6 4.0
You can just mount it to the sheet metal if you want to plan on chopping your XJ after you use it the first time. As Stud said, a winch plate in the receiver would be the only way to do it safely. Unless you want to reinforce your entire cargo area to support the stresses.
#5
Senior Member
Join Date: Oct 2011
Location: Longview, TX
Posts: 689
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
That's probably the safest and most cost effective way to do it. You can probably measure the bolt pattern and transfer it to a steel plate welded onto a hitch for next to nothing.
Trending Topics
#8
CF Veteran
Join Date: Feb 2010
Location: Missoula, MT
Posts: 3,353
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: Golen 4.6 Stroker, AFE Headers, 62mm TB, 24 LB Injectors, Brown Dog kit, HF Cat, 3" Exhaust
I have a winch in a basket. Mine is a T-max basket but warn and JCR also make them. It wouldn't be hard to make one yourself but If you do, put handles on it
t... Makes it way easier. It was not all that expensive to run the cable- I used screw together quick connects. I also fashioned a set of jumper cables with the connections so it makes jumping someone really easy.
If you are going to run the cable anyways, I would just run the one good winch- that way you can pull yourself back/someone else out if you have too. You could easily get the cable/basket for price of two winches.
t... Makes it way easier. It was not all that expensive to run the cable- I used screw together quick connects. I also fashioned a set of jumper cables with the connections so it makes jumping someone really easy.
If you are going to run the cable anyways, I would just run the one good winch- that way you can pull yourself back/someone else out if you have too. You could easily get the cable/basket for price of two winches.
Last edited by Ianf406; 02-03-2015 at 10:45 AM.
#9
Seasoned Member
Thread Starter
Join Date: May 2013
Location: North Atlantic - Delaware
Posts: 410
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: Inline 6 4.0
So I had an idea. I like the basket idea but I already have a front bumper that doesn't have a hitch spot. I'm going to weld a plate on it, but it doesn't have the spot for the hitch. I have the one winch already that is only 2,500. I had an idea for mounting to the rear and want you opinion.
Let's say the basket option can't work...
Can I remove the stock bumper, add a cross piece of 1/8 or 3/16 metal with holes pre drilled, mount the winch in the center of that and put the stock bumper back on (slots and holes drilled out for the winch)? See my pic below...
I know it's just sheet metal back there, but wouldn't this "kinda" be the same as adding a new bumper since it ties into both sides equally???
Let's say the basket option can't work...
Can I remove the stock bumper, add a cross piece of 1/8 or 3/16 metal with holes pre drilled, mount the winch in the center of that and put the stock bumper back on (slots and holes drilled out for the winch)? See my pic below...
I know it's just sheet metal back there, but wouldn't this "kinda" be the same as adding a new bumper since it ties into both sides equally???
#10
Seasoned Member
Thread Starter
Join Date: May 2013
Location: North Atlantic - Delaware
Posts: 410
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: Inline 6 4.0
Ignore the center holes... I don't know what I was doing there. That part of the body is indented from the rest so the nuts on the back of the winch should clear clash I think..
#11
CF Veteran
Join Date: Feb 2010
Location: Missoula, MT
Posts: 3,353
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: Golen 4.6 Stroker, AFE Headers, 62mm TB, 24 LB Injectors, Brown Dog kit, HF Cat, 3" Exhaust
The xjs used to have a factory option on the front for a "hidden winch" like that.. it would be cool if you could get it to work! (And dont see why not with a small winch)
#12
Seasoned Member
Thread Starter
Join Date: May 2013
Location: North Atlantic - Delaware
Posts: 410
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: Inline 6 4.0
As far as the cable issue and running the length of the jeep, I was planning on setting up an isolated battery in the back with a switch. It would run the rear on board air and 12V cig plug and this winch.
#13
CF Veteran
Join Date: Feb 2010
Location: Missoula, MT
Posts: 3,353
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: Golen 4.6 Stroker, AFE Headers, 62mm TB, 24 LB Injectors, Brown Dog kit, HF Cat, 3" Exhaust
I would just mount a hawse fairlead on the outside of the bumper so it didn't tear up your line/bumper. Battery seems like a good idea but you will still have to run the cable to it Going to be cable either way. Just go to a welding supply company- its cheap enough there. If you were thinking running the battery unsupported, It wont last long. If my engine isn't running, My big winch drains it pretty quick even with no load. About one full pull is it.
Last edited by Ianf406; 02-03-2015 at 02:59 PM.
#14
Seasoned Member
Thread Starter
Join Date: May 2013
Location: North Atlantic - Delaware
Posts: 410
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: Inline 6 4.0
I would just mount a hawse fairlead on the outside of the bumper so it didn't tear up your line/bumper. Battery seems like a good idea but you will still have to run the cable to it Going to be cable either way. Just go to a welding supply company- its cheap enough there. If you were thinking running the battery unsupported, It wont last long. If my engine isn't running, My big winch drains it pretty quick even with no load. About one full pull is it.
You said exactly what I was going to do, the rollers are going on the outside with a hook and strap coming out. I want it to look factory as much as possible.
So I know the battery can drain quickly... I was thinking of having a charger in the rear and just turn it on to charge the battery but I see that that could be a failure waiting to happen. Would running wires up to the front be the best/most cost efficient option?
#15
Seasoned Member
Thread Starter
Join Date: May 2013
Location: North Atlantic - Delaware
Posts: 410
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: Inline 6 4.0
Running the cables as in bypass the idea of a battery in the rear.
Or
Hook up a duel battery set up?
Or
Hook up a duel battery set up?
