1310 U-Joint strap replacement ideas
#1
Seasoned Member
Thread Starter
Join Date: Dec 2009
Location: Colorado Springs, CO
Posts: 460
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L
1310 U-Joint strap replacement ideas
Doing some research on what style I want to go with, and thought I'd share some links for future reference.
Typical Dorman #81008 U bolts
http://www.summitracing.com/parts/rn...FceCfgodMDIAfg
Fastshafts Billet U-Bolt Kits, looks pretty stout.
http://www.summitracing.com/parts/axe-bbsk-10/overview/
Aluminum U-Joint Girdles, popular in the drag racing world, so it must be good.
http://www.leadmineproducts.com/serv...dle-For/Detail
Iron Rock Offroad Chry8.25 U bolt yoke kit.
http://www.ironrockoffroad.com/Merch...egory_Code=PFX
Teraflex Dana30 U bolt yoke kit.
http://www.jeep4x4center.com/terafle...f-4240444.html
Typical Dorman #81008 U bolts
http://www.summitracing.com/parts/rn...FceCfgodMDIAfg
Fastshafts Billet U-Bolt Kits, looks pretty stout.
http://www.summitracing.com/parts/axe-bbsk-10/overview/
Aluminum U-Joint Girdles, popular in the drag racing world, so it must be good.
http://www.leadmineproducts.com/serv...dle-For/Detail
Iron Rock Offroad Chry8.25 U bolt yoke kit.
http://www.ironrockoffroad.com/Merch...egory_Code=PFX
Teraflex Dana30 U bolt yoke kit.
http://www.jeep4x4center.com/terafle...f-4240444.html
Last edited by ss427ci; 12-21-2014 at 05:10 AM.
#2
#3
☠ CF Sheriff ☠
Pay attention to the width of those girdle straps - while they both will fit the 1310 ujoint, neither is technically wide enough to fit the holes in the yoke
Stock: 1.587"
Fastshafts: 1.415"
Leadmine: 1.406"
Correct way to do it is to swap the yoke with one designed for ubolts:
8.25 Yoke and U-bolts: http://www.ironrockoffroad.com/Merch...tegory_Code=XD
D30 Yoke and Ubolts: http://www.ironrockoffroad.com/Merch...Category_Code=

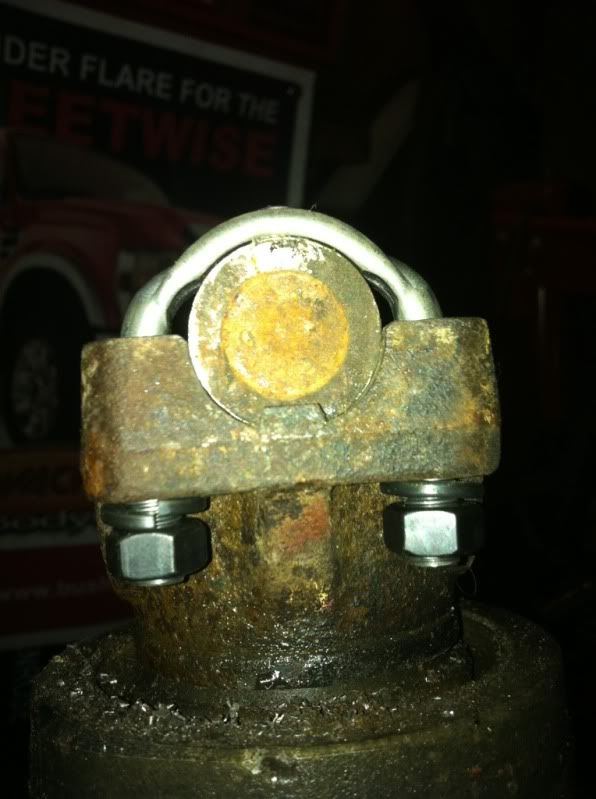

In general, it's not a good idea to drill the existing yoke for the ubolts - you'll likely run into clearance issues on the backside, and when you convert a 'strap' yoke to a 'u-bolt' yoke, the u-bolts do not fir the ujoint cap the entire way around, leaving areas for the cap to deform and crush the needle bearings.
Stock: 1.587"
Fastshafts: 1.415"
Leadmine: 1.406"
Correct way to do it is to swap the yoke with one designed for ubolts:
8.25 Yoke and U-bolts: http://www.ironrockoffroad.com/Merch...tegory_Code=XD
D30 Yoke and Ubolts: http://www.ironrockoffroad.com/Merch...Category_Code=
In general, it's not a good idea to drill the existing yoke for the ubolts - you'll likely run into clearance issues on the backside, and when you convert a 'strap' yoke to a 'u-bolt' yoke, the u-bolts do not fir the ujoint cap the entire way around, leaving areas for the cap to deform and crush the needle bearings.
#4
Seasoned Member
Thread Starter
Join Date: Dec 2009
Location: Colorado Springs, CO
Posts: 460
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L
Pay attention to the width of those girdle straps - while they both will fit the 1310 ujoint, neither is technically wide enough to fit the holes in the yoke
Stock: 1.587"
Fastshafts: 1.415"
Leadmine: 1.406"
Correct way to do it is to swap the yoke with one designed for ubolts:
8.25 Yoke and U-bolts: http://www.ironrockoffroad.com/Merch...tegory_Code=XD
D30 Yoke and Ubolts: http://www.ironrockoffroad.com/Merch...Category_Code=
In general, it's not a good idea to drill the existing yoke for the ubolts - you'll likely run into clearance issues on the backside, and when you convert a 'strap' yoke to a 'u-bolt' yoke, the u-bolts do not fir the ujoint cap the entire way around, leaving areas for the cap to deform and crush the needle bearings.
Stock: 1.587"
Fastshafts: 1.415"
Leadmine: 1.406"
Correct way to do it is to swap the yoke with one designed for ubolts:
8.25 Yoke and U-bolts: http://www.ironrockoffroad.com/Merch...tegory_Code=XD
D30 Yoke and Ubolts: http://www.ironrockoffroad.com/Merch...Category_Code=
In general, it's not a good idea to drill the existing yoke for the ubolts - you'll likely run into clearance issues on the backside, and when you convert a 'strap' yoke to a 'u-bolt' yoke, the u-bolts do not fir the ujoint cap the entire way around, leaving areas for the cap to deform and crush the needle bearings.
Thanks Dukie!
