What did you do to your Cherokee today?
Newbie
Joined: Feb 2012
Posts: 11
Likes: 0
Year: 2000
Model: Cherokee
door pin
You know the arm inside the door that keeps the door open? You know what sucks? Losing the pin that keeps that arm attached. Thanks to another post on the forum, though, I put in a simple hitch pin (courtesy of Home Depot) and it works like a charm. The hardest part was coaxing that arm back out, but after talking it over with a big pair of pliers, we worked out our differences.
Seasoned Member
Joined: Jun 2009
Posts: 294
Likes: 0
From: West Michigan
Year: 2000
Model: Cherokee
Engine: 4.0l IL6
Locked Up

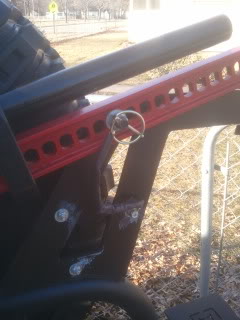

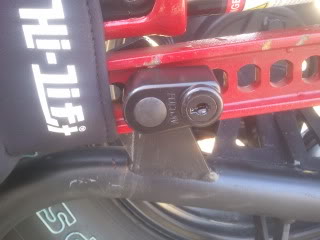

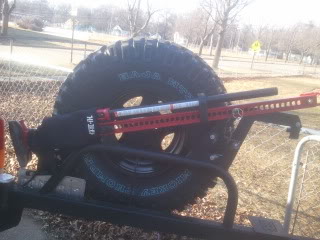

Went and cleaned all the salt of the suspension parts. Its nice today so I decided to finish the locking and safety system for my hi-lift jack.
Drilling holes through hardened steel bolts without a drill press is a pain in the ***, but after about 5 bits breaking I got it.
Drilling holes through hardened steel bolts without a drill press is a pain in the ***, but after about 5 bits breaking I got it.
CF Veteran
Joined: Feb 2011
Posts: 3,500
Likes: 0
From: Long Beach, Ca
Year: 2000
Model: Cherokee
Engine: 4.0 I6
I'm putting on a hitch I got from the jy. It was a PITA getting the exhaust hanger bolts out!! The nut on the original nut strip farthest forward on the passenger side is slightly bent making it difficult to get the new bolt in. I took a break cuz I'm getting a new radio put in my gf's car. When I get back I think I'm going to have to drill out the unibody under the but a bit. Ugh every little project turns into an operation!!!
Member
Joined: Aug 2011
Posts: 102
Likes: 0
From: Centreville MI
Year: 1988
Model: Cherokee
Engine: 4.0
Seasoned Member
Joined: Feb 2011
Posts: 276
Likes: 7
From: NJ/NY
Year: 2001
Model: Cherokee
Engine: I6
OK..this will be long with loads of Pix.

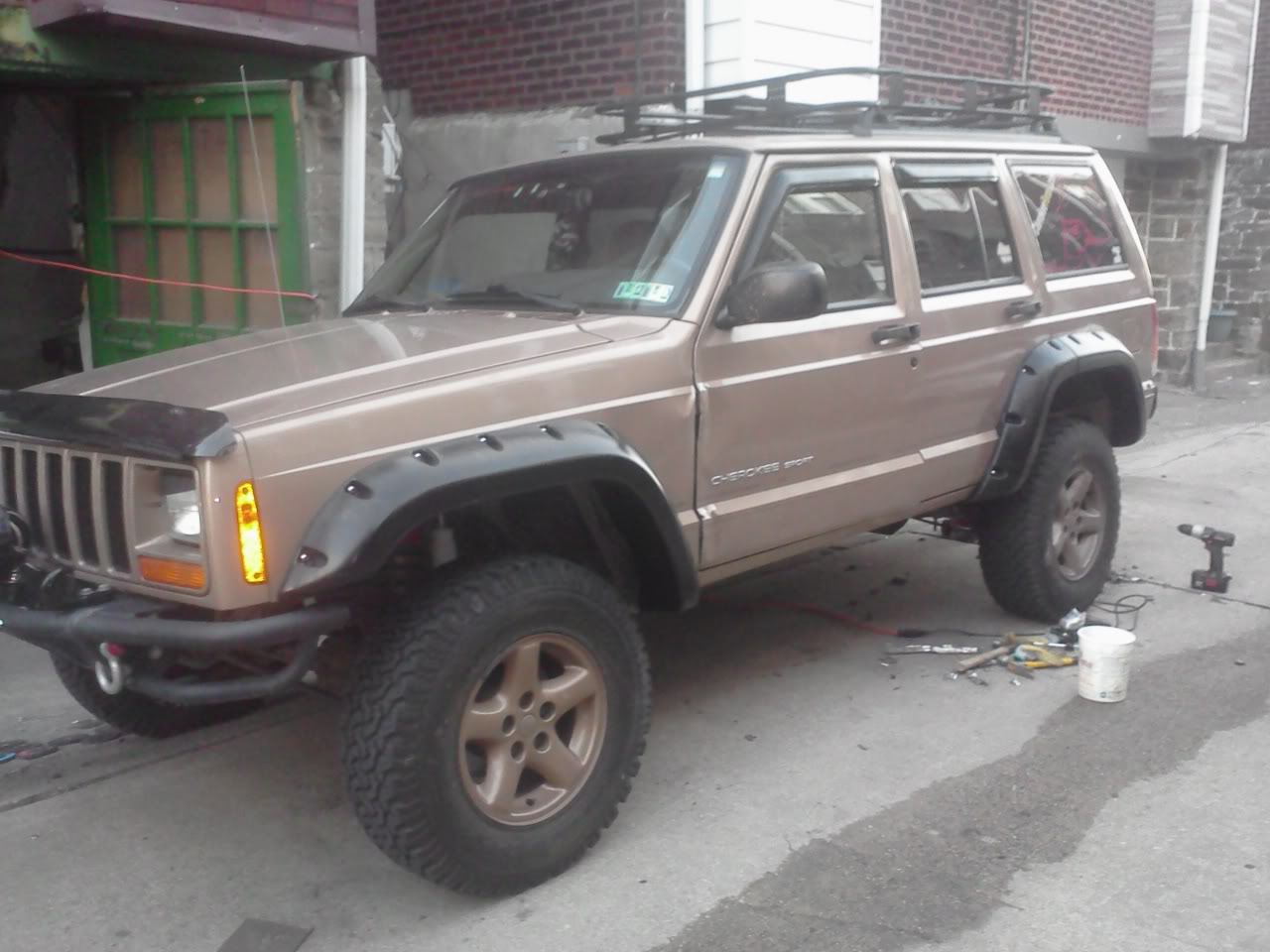

A little background. 2001 XJ, 3" RC lift, 31" tires. Getting my truck ready for a 1100+ miles drive to Florida for vacation next Saturday.
Mission: To go up against the dreaded "Death Wobble".
Started my day at 6am. Drove to the mall parking lot by an automotive store and Seafoamed her. Living in a city I couldn't do this at home because I'm scared to have the fire department called on me. Chilled at a Dunkin Donuts while I waited the Seafoam to do its magic (30* out with wind chill of 15*).

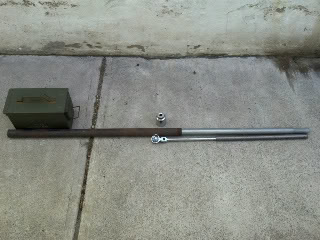

Got home and got my gear ready to tackle the front end. The most important tools that I couldn't have done with out:
First Task: Replace the steering linkages. Pretty easy with the fork and a BFH
2nd Task: Remove wheels, brakes, hub assemblies, axle shafts, ball joints

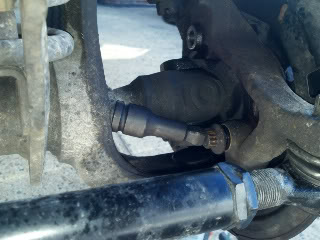

Pic of removing the hub nut
removing the hub using the 3" extension

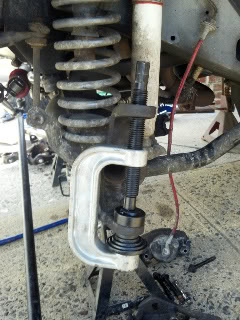

Best tool ever! I don't know what I would have done without this. good $69 investment from Harbor Freight (4wd Ball Joint Tool)

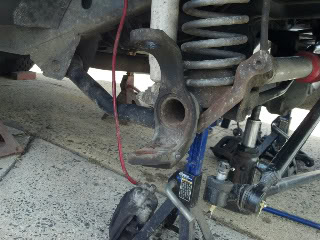

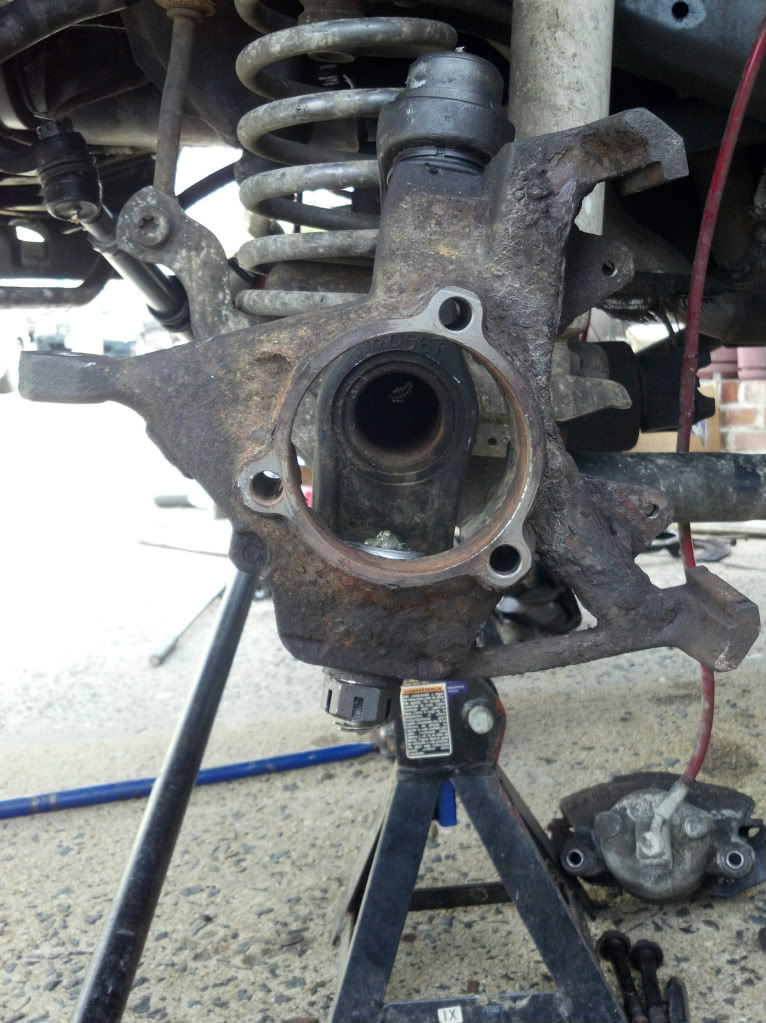

TADA!

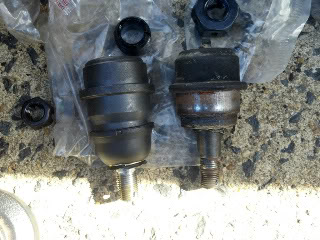

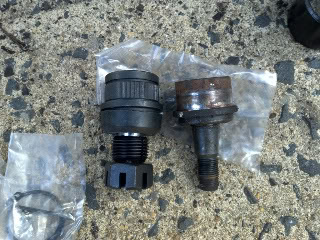

Ball Joint replacements. My old ones were shot! You can move the stud just by jiggling it
Ball joints replaced and knuckle back on!!
Next, axle u-joints
Both replaced..again, with the help of the ball joint tool!

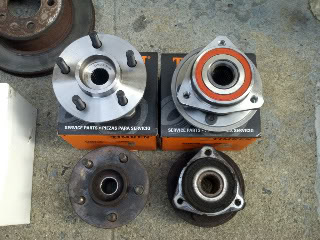

Hub Replacements
Hubs installed

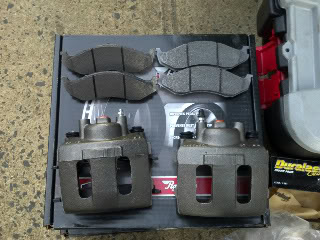

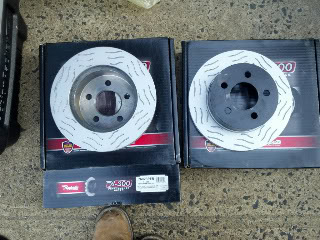

Brake replacements

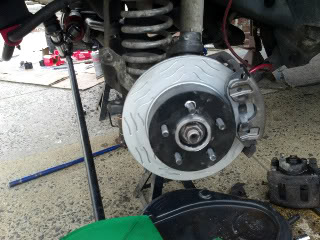

Brakes installed
Took it driving up to 70mph. Usually i have the "DW" between 50-60mph, NOT ANYMORE!!! I can steer now with one hand with my arm rested on the window sill. No more white knuckling! Also, the steering is tighter and more responsive! I would say a great day today with a lot of accomplishments in 5 hours and doing everything curb side
Now for a beer!
Tomorrow's project: Oil Change, Trans cooler install, rear drum brakes, cowl snorkel
A little background. 2001 XJ, 3" RC lift, 31" tires. Getting my truck ready for a 1100+ miles drive to Florida for vacation next Saturday.
Mission: To go up against the dreaded "Death Wobble".
Started my day at 6am. Drove to the mall parking lot by an automotive store and Seafoamed her. Living in a city I couldn't do this at home because I'm scared to have the fire department called on me. Chilled at a Dunkin Donuts while I waited the Seafoam to do its magic (30* out with wind chill of 15*).
Got home and got my gear ready to tackle the front end. The most important tools that I couldn't have done with out:

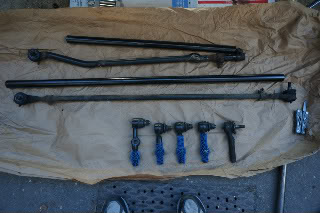

First Task: Replace the steering linkages. Pretty easy with the fork and a BFH
2nd Task: Remove wheels, brakes, hub assemblies, axle shafts, ball joints

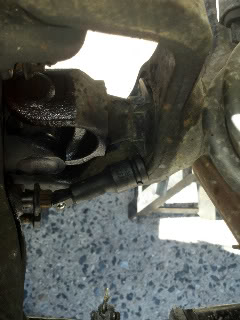

Pic of removing the hub nut

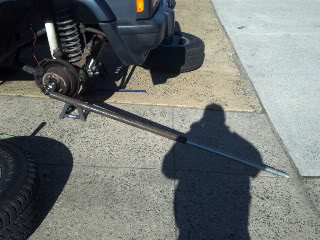

removing the hub using the 3" extension
Best tool ever! I don't know what I would have done without this. good $69 investment from Harbor Freight (4wd Ball Joint Tool)
TADA!
Ball Joint replacements. My old ones were shot! You can move the stud just by jiggling it
Ball joints replaced and knuckle back on!!

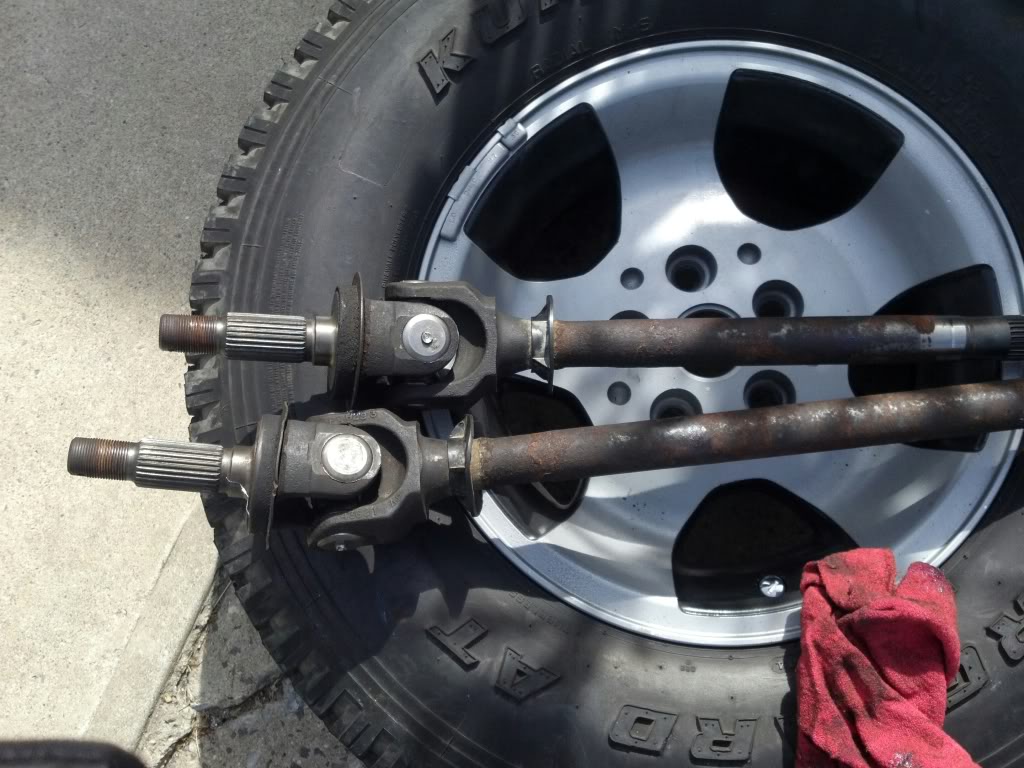

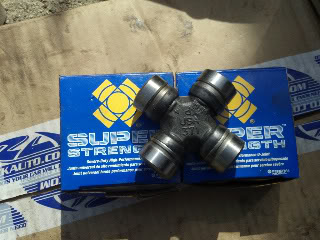

Next, axle u-joints
Both replaced..again, with the help of the ball joint tool!
Hub Replacements

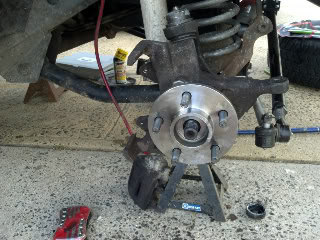

Hubs installed
Brake replacements

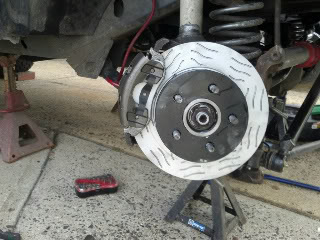

Brakes installed
Took it driving up to 70mph. Usually i have the "DW" between 50-60mph, NOT ANYMORE!!! I can steer now with one hand with my arm rested on the window sill. No more white knuckling! Also, the steering is tighter and more responsive! I would say a great day today with a lot of accomplishments in 5 hours and doing everything curb side
Now for a beer!
Tomorrow's project: Oil Change, Trans cooler install, rear drum brakes, cowl snorkel
Last edited by USMCgunrock; Mar 10, 2012 at 06:51 PM.
No, I don't lick fish.
Joined: Mar 2011
Posts: 11,169
Likes: 26
From: Northern Kentucky
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0
Originally Posted by Trev1006
Could you reweld the nut in place?
