Ugghhh! Blew fuse i think

Thread Tools

Search this Thread

Old May 12, 2011 | 04:07 PM
  #1
Kyles92laredo's Avatar
Thread Starter
Seasoned Member

Joined: Feb 2011
Posts: 268
Likes: 1
Model: Cherokee
Default Ugghhh! Blew fuse i think

So I got a wool animal house horn and was trying to find a 12v wire to connect it to. Anyways being the curious kid I am I shoved the voltage meter in the ciggerette lighter and all of a sudden the radio went off and the cig lighter is dead.. Any tips?
Reply
Old May 12, 2011 | 10:28 PM
  #2
Cloud9-XJ's Avatar
Seasoned Member

Joined: Feb 2011
Posts: 451
Likes: 0
From: Smokey Mountains
Year: 1996
Model: Cherokee
Engine: 2.5L
Default

Definately blew a fuse...
Reply
Old May 14, 2011 | 05:34 PM
  #3
XJ JoeyD's Avatar
Seasoned Member

Joined: Sep 2010
Posts: 331
Likes: 0
From: Parma Ohio
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Just an FYI the radio, clock (if equipped) and lighter all share 12v power through the dome light fuse. So just in case your radio fuse is good and it still doesn't work take a look at the clock and dome light fuses too
Reply
Old May 14, 2011 | 08:48 PM
  #4
Kyles92laredo's Avatar
Thread Starter
Seasoned Member

Joined: Feb 2011
Posts: 268
Likes: 1
Model: Cherokee
Default

So just buy a new 60 amp fuse then
Reply
Old May 15, 2011 | 11:46 PM
  #5
Kyles92laredo's Avatar
Thread Starter
Seasoned Member

Joined: Feb 2011
Posts: 268
Likes: 1
Model: Cherokee
Default

Figured it all out! Man do I feel dumb! Was looking at the fuse box under the hood and saw the 60a fuse that said int. Power. Which is what I thought I blew. Anyways I showed the guy at autozone and he laughed and said I needed to check the inside one. But got it figured out! Now I'm scared to cut into a wire to get the right one. It says I just need to tap into a 12 volt wire but I'm not good with electronics so if someone could take a pic of what wire to do it in id love you. For a 92 laredo. Don't know if year matters
Reply
Old May 17, 2011 | 06:11 AM
  #6
XJ JoeyD's Avatar
Seasoned Member

Joined: Sep 2010
Posts: 331
Likes: 0
From: Parma Ohio
Year: 1998
Model: Cherokee
Engine: 4.0
Default

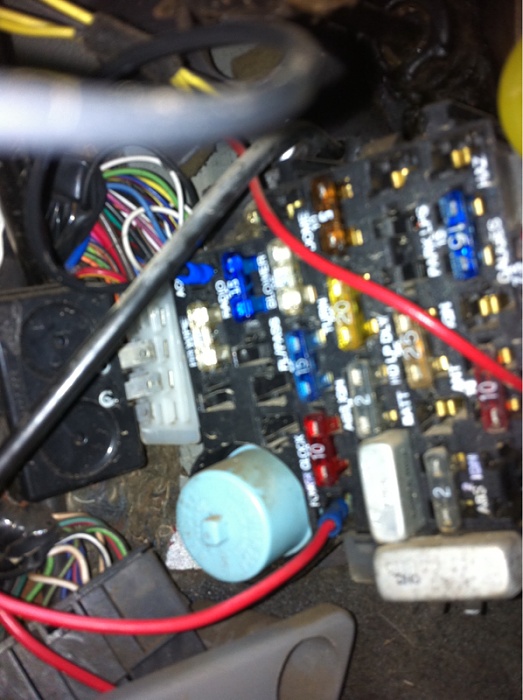

Rather than cutting wiring, you could tap into the interior fuse panel for a switched (powered with key turned) 12V source. My 91 even has single terminals that say "acc" as if they knew people were gonna add things lol. If you needed a constant 12v source for whatever reason, ide go directly to the battery. Much simpler and less destructive than cutting up your wiring.
Attached Thumbnails Ugghhh! Blew fuse i think-image-1636902097.jpg
