subs in the rear hatch

Thread Tools

Search this Thread

Old Mar 3, 2016 | 10:56 AM
  #1
cojeepin's Avatar
Thread Starter
Junior Member

Joined: Nov 2014
Posts: 94
Likes: 0
From: Brighton
Year: 2001
Model: Cherokee
Engine: 4.0l i6
Default subs in the rear hatch

So I know I'm gona get alot of crop from anyone who doesn't like subs but I was wondering if putting them in the rear hatch is a possibility trying to maximize space but I love my subs anything helps! Even hoe to wire them through the top of the hatch or whatever
Reply
Old Mar 3, 2016 | 11:13 AM
  #2
jay_sco's Avatar
CF Veteran

Joined: Dec 2011
Posts: 1,080
Likes: 8
From: IE (SoCal)
Year: 1994 SE
Model: Cherokee
Engine: 4.0
Default

A sub requires a sturdy enclosure, which the hatch is not. Not to mention mounting depth, weight, airspace, etc. You may get them to fit, but it would sound like booty IMO. Either find another way to make space or get a cubby enclosure.
Reply
Old Mar 3, 2016 | 12:12 PM
  #3
Fred/N0AZZ's Avatar
CF Veteran

Joined: Jul 2013
Posts: 7,554
Likes: 17
From: Monett, MO.
Year: 1999
Model: Cherokee
Engine: 4.0
Default

I bet it would rattle like all get out.
Reply
Old Mar 3, 2016 | 06:08 PM
  #4
mschi772's Avatar
Senior Member

Joined: Mar 2012
Posts: 974
Likes: 14
From: Racine, WI
Year: 1997
Model: Cherokee
Engine: 4.0
Default

The hatch is a poor enclosure structurally. It also does not even have the necessary (usable) volume for all but the smallest, low profile subs. Assuming you were to actually isolate an appropriate volume for a chosen sub within the hatch and make it air tight, the hatch would rattle like crazy. The hatch could also need stronger pistons to hold itself up with all that added weight.

If you want to save space, have an enclosure custom made at a local shop to fit your cubby area. Or you could have an enclosure made that either replaces your spare (if your spare rides somewhere else) or a smaller one that fits inside your spare tire's wheel (tricky but possible).
Reply
Old Mar 4, 2016 | 12:27 AM
  #5
cojeepin's Avatar
Thread Starter
Junior Member

Joined: Nov 2014
Posts: 94
Likes: 0
From: Brighton
Year: 2001
Model: Cherokee
Engine: 4.0l i6
Default

Yeah that didn't cross myind till all 3 of you said it but my hatch already rattles like crazy because of how they are positioned now... Now this may sound just as stupid but what about the back of the seat? It's a bench so it should work... Right? Haha
Reply
Old Mar 4, 2016 | 01:35 AM
  #6
andrewmp6's Avatar
CF Veteran

Joined: Jun 2011
Posts: 8,014
Likes: 17
From: Louisville,KY
Model: Cherokee
Default

Unless you built a sealed box in to the hatch its not gonna work to good.And the space you have you could only really run maybe 2 8 inch subs with out it rattling.
Reply
Old Mar 4, 2016 | 05:16 AM
  #7
SteveMongr's Avatar
Beach Bum

Joined: Jul 2011
Posts: 6,123
Likes: 22
From: Cape Hatteras, North Carolina
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Default

There is a fair amount of room under front seats. Could make a custom box with 8" woofer under one seat (or both seats if you are a teenager). Amp under rear seat.
Reply
Old Mar 4, 2016 | 06:19 AM
  #8
jay_sco's Avatar
CF Veteran

Joined: Dec 2011
Posts: 1,080
Likes: 8
From: IE (SoCal)
Year: 1994 SE
Model: Cherokee
Engine: 4.0
Default

Originally Posted by cojeepin
...but what about the back of the seat? It's a bench so it should work... Right? Haha
No.

What all do you have, or plan to have in the rear right now (cargo wise)? There are many custom built storage solutions that incorporate room for a spare, tools, parts, supplies, and a sub or two.
Reply
Old Mar 4, 2016 | 06:42 AM
  #9
SteveMongr's Avatar
Beach Bum

Joined: Jul 2011
Posts: 6,123
Likes: 22
From: Cape Hatteras, North Carolina
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Default

Pictures.
Factory spare tire subwoofer.
Custom spare tire sub.
My current set up. 10" powered, sealed box fits the angle of seatback.
Attached Thumbnails subs in the rear hatch-dsc03323.jpg
Attached Images
Reply
Old Mar 4, 2016 | 07:24 AM
  #10
unidentifiedbomb's Avatar
CF Veteran

Joined: May 2011
Posts: 6,098
Likes: 250
From: DE
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

Subthump.com makes a great sub box that goes right in the passenger side cubby hole wheel well. Fits a 10" sub, made with 3/4" mdf and its just over a 100 shipped. I've had mine for 6 years now and it's amazing.
Reply
Old Mar 4, 2016 | 08:13 AM
  #11
SatiricalHen's Avatar
CF Veteran

Joined: Oct 2013
Posts: 5,924
Likes: 203
From: Greenville, SC
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

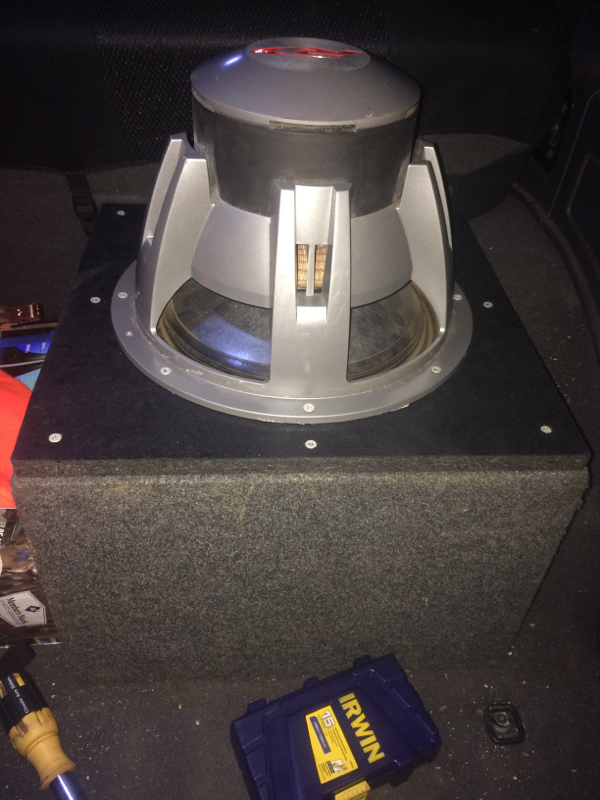

That's the biggest problem with our jeeps, no space in the trunk for subs. The best option for maximizing space is a custom made box. Even if I made a cubby box it wouldn't fit my sub. My box isn't too big now so I've just kept it how it is.

subs in the rear hatch-image-3318528708.jpg
Reply
Old Mar 4, 2016 | 08:22 AM
  #12
SteveMongr's Avatar
Beach Bum

Joined: Jul 2011
Posts: 6,123
Likes: 22
From: Cape Hatteras, North Carolina
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Default

^ Do you notice crud on the driver window? That would be ear wax being blasted out. lol

Here is a powered sub that fits under front seat. I question it's effectiveness and figure custom built would be better for under seats.
Attached Thumbnails subs in the rear hatch-s-l1600-1-.jpg
Attached Images
Reply
Old Mar 4, 2016 | 09:20 AM
  #13
CherokeeHoonigan's Avatar
Senior Member

Joined: Nov 2014
Posts: 892
Likes: 4
From: Lennox/Sioux Falls South Dakota
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0 liter inline 6
Default

Under seats might be the best option here, But if your going to go with custom built i would go ahead with the cubby hole project in the rear, good for space and might have better quality of sound. good luck.
Reply
Old Mar 4, 2016 | 11:05 AM
  #14
investinwaffles's Avatar
CF Veteran

Joined: Oct 2013
Posts: 2,097
Likes: 12
From: Tarpon Springs, FL / Denver, CO
Year: '98
Engine: 4.0 I6
Default

I am gearing up to upgrade my stereo once the weather gets nice.
I was going to make my own box, but I have never done so, don't have any wood-working tools, and am too lazy in general to do maths and measure and all that.

Subthump has a nice MDF box that fits in the cubby area with minimal modification. You could go with a shallower 10" if you want SPL (louder), or with an 8" if you want SQL optimized (sound quality).

Personally, I think I am giong to go for an Image Dynamics ID8 for sound quality, or a Sundown Audio SA-8 for max power

http://www.sonicelectronix.com/item_...D8-D2-V.4.html
Reply
Old Mar 5, 2016 | 06:53 AM
  #15
peep's Avatar
CF Veteran
15 Year Member

Joined: Oct 2010
Posts: 2,150
Likes: 12
From: Ontario, Canada
Year: 1989 Laredo
Model: Cherokee
Engine: 4.0 L 6 Renix
Default

Satirical Hen, is that a sub or a flux capacitor?
