Starting my first bumper build
10-08-2013, 09:37 PM
#1
Junior Member
Thread Starter
Join Date: May 2013
Location: Kansas City
Posts: 37
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: 4.0
Starting my first bumper build
Okay, so I'm starting my first bumper build. I am going to be using 2" square steel tubing that is 1/4" thick. The design is based on a few tub bumpers I've seen on some XJ's and various Wrangler models.
These are basic Sketchup drawings I made on the fly. I am going to mount on some recovery rings as well. What do you all think?
These are basic Sketchup drawings I made on the fly. I am going to mount on some recovery rings as well. What do you all think?
10-09-2013, 12:11 AM
#2
CF Veteran
Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes
on
9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
gotta say. that is one ugly bumper. there's a reason they use tube man
I'd extend the mounts back as far as they will go
for size reference http://liquidironindustries.com/XJ-D...-Brackets.html
then use 3/16" steel. might as well save a bit of weight
I'd extend the mounts back as far as they will go
for size reference http://liquidironindustries.com/XJ-D...-Brackets.html
then use 3/16" steel. might as well save a bit of weight
10-09-2013, 08:54 AM
#3
Junior Member
Thread Starter
Join Date: May 2013
Location: Kansas City
Posts: 37
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: 4.0
gotta say. that is one ugly bumper. there's a reason they use tube man
I'd extend the mounts back as far as they will go
for size reference http://liquidironindustries.com/XJ-D...-Brackets.html
then use 3/16" steel. might as well save a bit of weight
I'd extend the mounts back as far as they will go
for size reference http://liquidironindustries.com/XJ-D...-Brackets.html
then use 3/16" steel. might as well save a bit of weight
Your link is broken.
I am basing my design off this:
Trending Topics
10-10-2013, 05:03 PM
#8
CF Veteran
Join Date: Mar 2012
Location: Richmond, VA
Posts: 1,369
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Sort of but not really. I used square stock beneath my winch plate to have a wider surface under it and a 90 to weld in instead of plate to round tube. The rest is round tube and the square on mine is barely visible.
10-10-2013, 05:40 PM
#9
CF Veteran
Join Date: Jan 2010
Location: Virginia Beach by way of Michigan
Posts: 5,482
Likes: 0
Received 24 Likes
on
24 Posts
Extend the mounts back so you have 7 bolts per side.
use tube instead of square stock of that's the design theme you're gonna do. A mix of plate (for a winch and d-ring tabs) and tube (the ends) would look good too.
The hoop you designed won't really offer any protection. If you hit something it'll just bust up the front of your Jeep. You want it angled out a little. You can still keep it short (a bull bar) or go full stinger, but angle and brace it to give it more strength.
use tube instead of square stock of that's the design theme you're gonna do. A mix of plate (for a winch and d-ring tabs) and tube (the ends) would look good too.
The hoop you designed won't really offer any protection. If you hit something it'll just bust up the front of your Jeep. You want it angled out a little. You can still keep it short (a bull bar) or go full stinger, but angle and brace it to give it more strength.
Last edited by no rdplz; 10-11-2013 at 09:09 AM.
10-10-2013, 05:47 PM
#10
CF Veteran
Join Date: Mar 2012
Location: Richmond, VA
Posts: 1,369
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
But no, seriously do not use all square stock. It's the most horrible looking thing ever. You also do not need to use 1/4" stock for all of it. It's going to weigh way more than it needs to for absolutely no reason. 1/8" for anything not structural, 3/16" for anything you'll be pulling on. The only thing that really should be 1/4" is the plate for the mounts and even that doesn't have to be if it's tied in adequately.
The mounts themselves aren't even worth the time they take to fab because they can be bought for dirt cheap. AJ's Offroad sells them for $50 for a set of CNC'd cut mounts out of 1/4" plate with 6 holes on each side.
http://www.ajsoffroadarmor.com/produ...cat=256&page=1
You might find some bad reviews, but ignore them. He's great to deal with and ships quick. He had some issues a few years ago over not getting stuff shipped out but iirc he was still working out of his garage and his house and everything had burned down at the time.
Last edited by motorcharge; 10-10-2013 at 05:50 PM.
10-11-2013, 01:51 PM
#11
Junior Member
Thread Starter
Join Date: May 2013
Location: Kansas City
Posts: 37
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: 4.0
I appreciate the feedback. The reason why I wanted to use the square tube was to fit the boxy style of the XJ and have a more unique looking vehicle. Thanks for the info on the brackets and the thickness of the metal, and the bull bar recommendations. I had thought about it bending back; I'll modify my design.
At the same time I'm planning a similar design for the rear bumper; it's not to scale, just the general idea.
At the same time I'm planning a similar design for the rear bumper; it's not to scale, just the general idea.
10-11-2013, 01:59 PM
#12
Junior Member
Thread Starter
Join Date: May 2013
Location: Kansas City
Posts: 37
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: 4.0

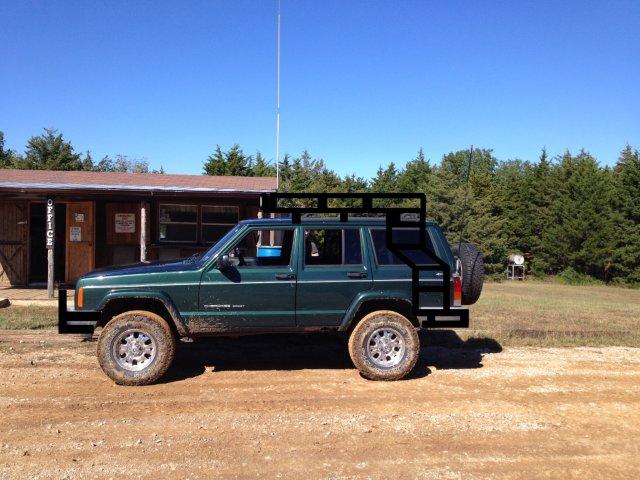

I'm going for an expedition or safari style, since I do a lot of camping, hiking, etc. I do some off-roading, but nothing extreme. In addition to the bumpers I want add a rack and a side mounted ladder (I saw it on an XJ on another thread). The ladder of course would go in the passenger side so it doesn't cover the gas cap; I plan to make it removable, mounting to the rack and rear bumper.
I know it's crude, BUT this is the general idea...
I know it's crude, BUT this is the general idea...
