Rugged Ridge floor mat issue!!

Reply



Thread Tools Search this Thread
Old 06-15-2013, 11:43 AM   #1
CF Veteran
Thread Starter

offroadordnance's Avatar

Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386

View offroadordnance's Photo Album My Photos
Year: 1998
Model: Cherokee
Engine: 4.0
Default Rugged Ridge floor mat issue!!

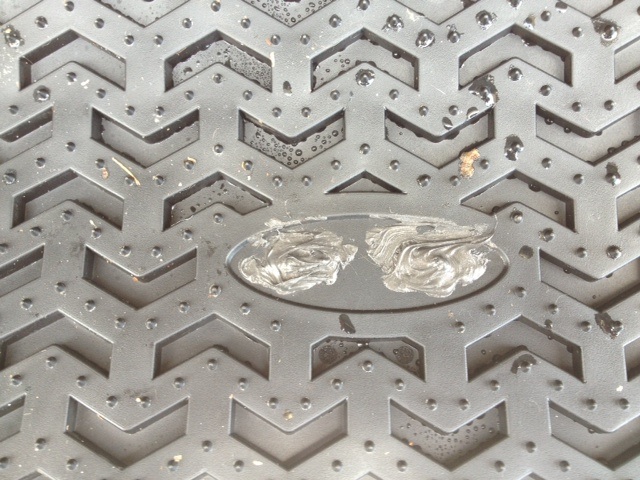

While replacing my tranny mount today, I noticed water seeping out of the front floor board. I pulled up the floor mats I bought maybe a year ago to find everything soaked and pieces of rusty metal in the carpet. It turns out the metal was the fastener holding the oval "rugged ridge" emblem on and had totally disintegrated allowing water under the mat. With the mat in place, the water can't evaporate. I pulled the emblems, applied a ton of black RTV under them, and on the back side. If you have these or maybe the Quadratec version, check them! Note the water droplets under the tray in attached image.
Attached Thumbnails
Rugged Ridge floor mat issue!!-image.jpg
offroadordnance is offline   Reply With Quote
Old 06-15-2013, 12:25 PM   #2
CF Veteran
Thread Starter

offroadordnance's Avatar

Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386

View offroadordnance's Photo Album My Photos
Year: 1998
Model: Cherokee
Engine: 4.0
Default

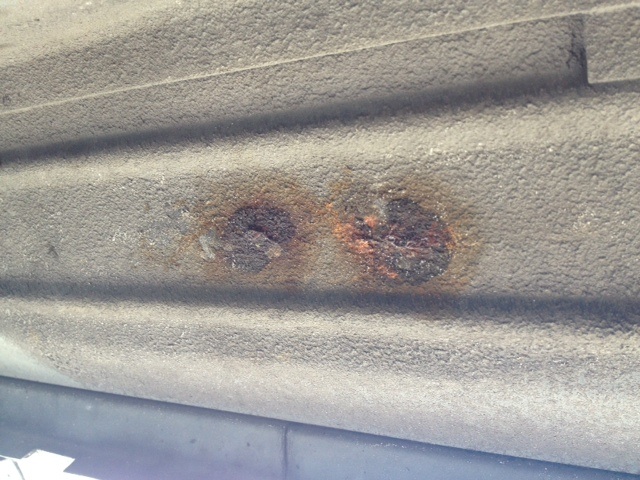

This is what I found under my floorboard with moisture weeping out of it on a perfectly dry day.
Attached Thumbnails
Rugged Ridge floor mat issue!!-image.jpg
offroadordnance is offline   Reply With Quote
Old 06-15-2013, 02:03 PM   #3
CF Veteran

ZINGGG's Avatar

Join Date: Oct 2011
Location: Seal Beach, CA
Posts: 4,440

View ZINGGG's Photo Album My Photos
Year: 1996
Model: Cherokee
Engine: 4.0 HO Straight Six
Default

Well that's not good. That rot is just going to get worse and spread. You're in for some fun if you plan on keeping it
ZINGGG is offline   Reply With Quote
Old 06-15-2013, 02:08 PM   #4
Senior Member

Join Date: Feb 2013
Location: Alpharetta, GA
Posts: 1,273

View BKohs's Photo Album My Photos
Default

You might need to cut out that section and weld a new piece of sheet metal in there to stop it from spreading.
BKohs is offline   Reply With Quote
Old 06-15-2013, 02:22 PM   #5
CF Veteran
Thread Starter

offroadordnance's Avatar

Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386

View offroadordnance's Photo Album My Photos
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Quote:
Originally Posted by 1996sportXJ View Post
Well that's not good. That rot is just going to get worse and spread. You're in for some fun if you plan on keeping it
Those things are out, windows were down for a few hours, and the carpet is still drying out. With the RTV in place, I can fill the mats with water now, and no leaking underneath. Still, they could of spent of few more more pennies on stainless fasteners and some basic gaskets considering these things are "patent pending" and superior to the competition's design.
offroadordnance is offline   Reply With Quote
Old 06-15-2013, 02:43 PM   #6
Member

Jamison's Avatar

Join Date: Feb 2012
Location: West TN
Posts: 227

View Jamison's Photo Album My Photos
Year: 2000
Model: Cherokee
Engine: 4.0
Default

You're still going to have to cut out the rot and weld in some sheet metal. I'd just leave the carpet out until I got it fixed...RTV isn't going to stop it from spreading.
Jamison is offline   Reply With Quote
