Rock sliders
I am building sliders for my 96 XJ. My question is....the tubing i have is 3x4. Is that too much? I am cuttin out the rockers and mounting them where they were. Any info would help
#2
CF Veteran
2x6 is generally the best.
3x4 you lose 1" ground clearence over the 2x6 and the other issue is that with the 2x6 it comes out beyond the doors to provide a little bit of extra protection and your 4" wide wont do that.
3x4 you lose 1" ground clearence over the 2x6 and the other issue is that with the 2x6 it comes out beyond the doors to provide a little bit of extra protection and your 4" wide wont do that.
#3
CF Veteran
Join Date: Oct 2010
Location: SW PA
Posts: 1,219
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: Runs
https://www.cherokeeforum.com/f58/rocker-sliders-45183/
Let me know how it comes out!
#4
Junior Member
Thread Starter
Join Date: Feb 2012
Location: East Freedom, Pa
Posts: 50
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee

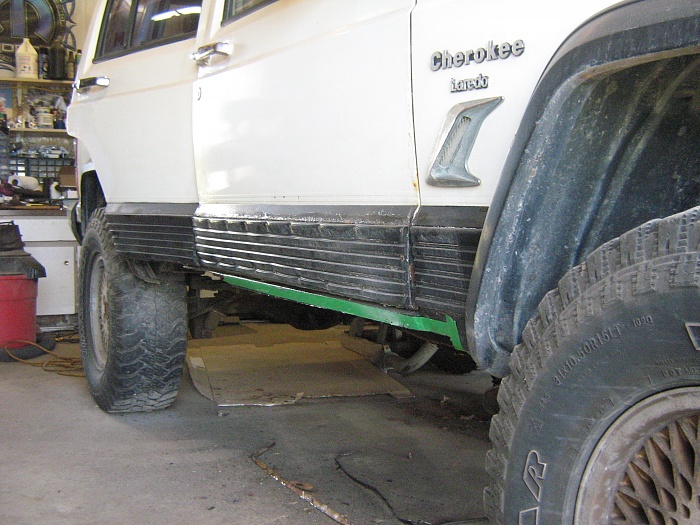

Got driver side rocker cut out and slider made for it. I'll be cuttin out the pass. side later and make that one. then weld them in place. Post pics when done.
#5
Senior Member
Join Date: Jun 2011
Location: Brookfield, WI
Posts: 967
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.2L bored out 4.0L I6
#6
CF Veteran
Join Date: Oct 2010
Location: Ontario, Canada
Posts: 2,150
Likes: 0
Received 12 Likes
on
9 Posts
Year: 1989 Laredo
Model: Cherokee
Engine: 4.0 L 6 Renix

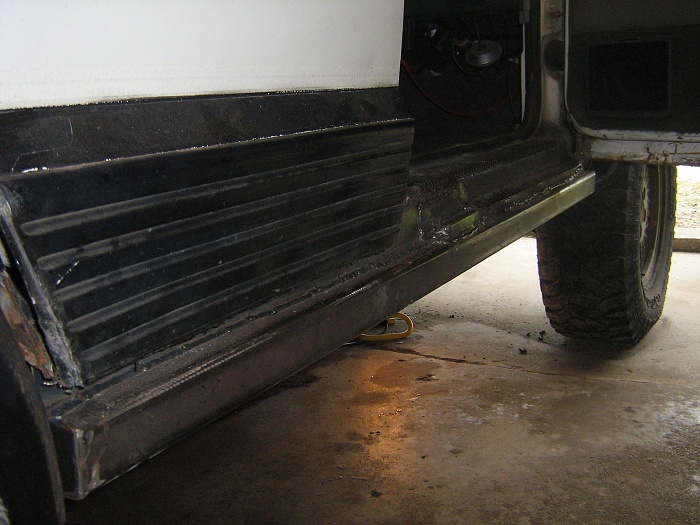

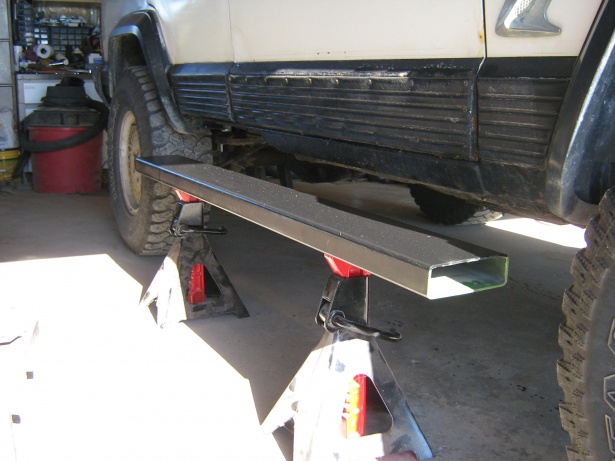

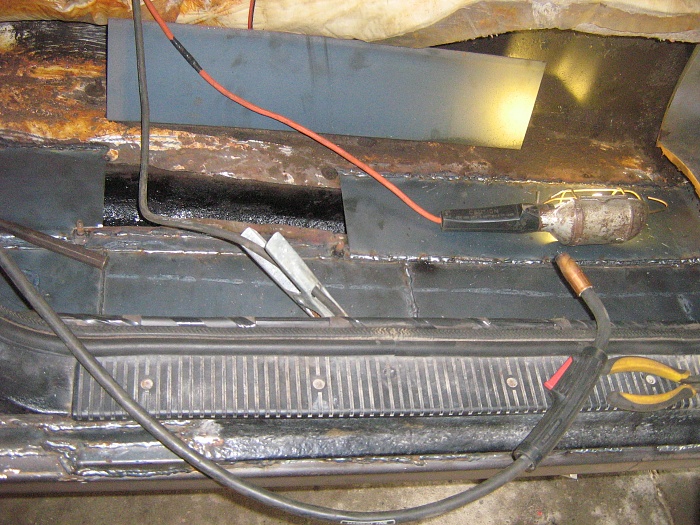

A lot of other pics on my profile album. I'm happy with the 2" tube, cut the rotten rockers out and tube in place, some new floor at the same time. do you welds inside and out, pull those carpets back, way back, have a hose and extinguisher handy and someone on fire watch while u weld. Don't melt wires or seat belts. On 31's and 3.5" lift, my lowest point under the rockers on level ground is just over 19" clear. To rdo again I might position for an extra 1/2" stickout. Tough, real tough, I can jack the whole side off the new rockers. Measure before and make sure your B pillars (pillars between doors) are correct distance, they will want to spring outward when the rockers are cut out, ratchet strap them inwards if need be. I put the tube on jack stands and then jacked up tight into place before welding, coat with rust paint to complete. Good luck.
