I've got a 99 XJ Sport that I picked up to tow with. I've now discovered that the rear frame rail is rusted out below where the fuel filler hoses go through the rail. That big hole in the frame rail seems like a pretty poor design decision to me.

Wondering if anyone knows of any product (or maybe can fabricate one themselves) that would be like a bracket/support piece to go over that section to reconnect and solidify it. My internet searching has turned up nothing. Thanks.
mikeyd is offline   Reply With Quote
Old 06-26-2012, 11:41 AM   #2
Junior Member
Lowrange2's Avatar
Join Date: May 2008
Location: +34 25' 35.67", -81 21' 12.04"
Posts: 14,753

View Lowrange2's Photo Album My Photos
Year: 1993
Model: Cherokee
Engine: 4.0

This will be locked in a few minutes so I'll hurry.

Cut all the old stuff out, replace it with new metal.

Lowrange2 is offline   Reply With Quote
Old 06-30-2012, 01:39 AM   #3
CF Veteran
JerseyJeeper's Avatar
Join Date: Jul 2009
Location: New Jersey (Milltown, Lavallette, and Wayne)
Posts: 2,245

View JerseyJeeper's Photo Album My Photos
Year: 1999
Model: Cherokee
Engine: 4.0L I6

Really surprised this hasn't been moved yet
JerseyJeeper is offline   Reply With Quote
Old 06-30-2012, 12:15 PM   #4
CF Veteran
peep's Avatar
Join Date: Oct 2010
Location: Ontario, Canada
Posts: 2,054

View peep's Photo Album My Photos
Year: 1989 Laredo
Model: Cherokee
Engine: 4.0 L 6 Renix

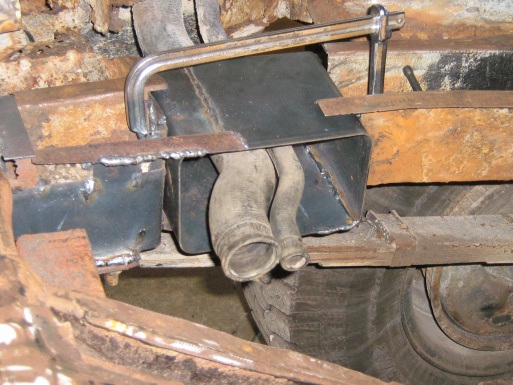

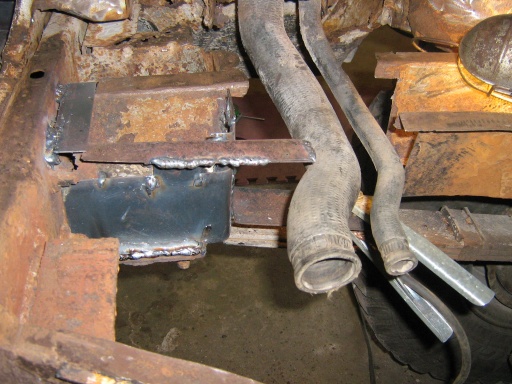

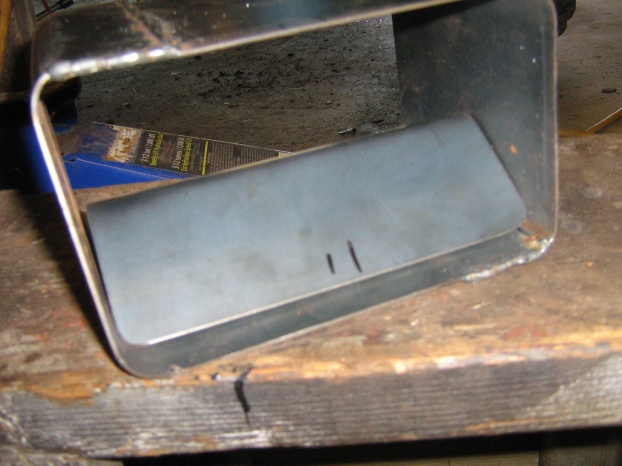

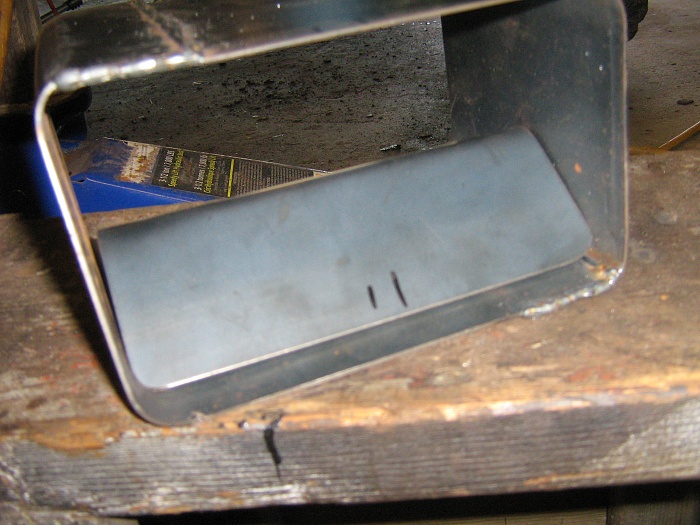

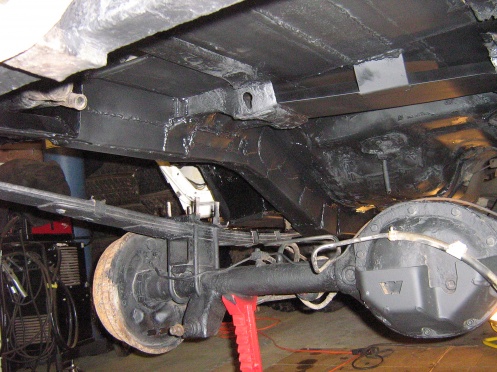

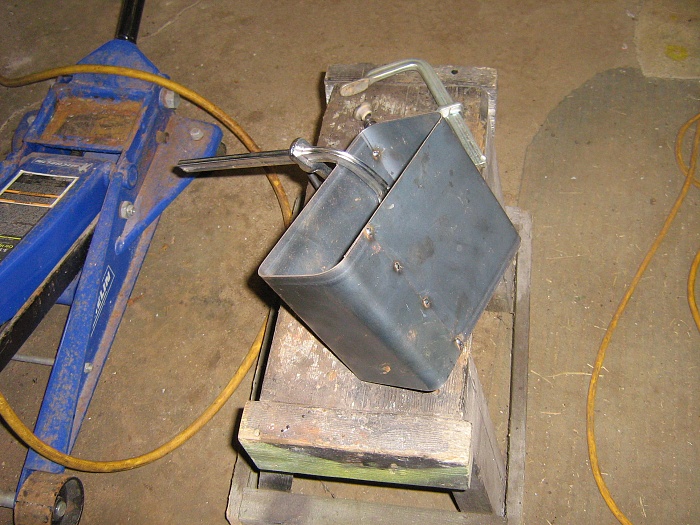

Build a fresh box section, I added couple formed pcs top and bottom of the box to strengthen. All 16ga HRS, overlapped, all seams welded, then secured to frame with formed angle sections, all overlapped and welded all seams, 3 layers gives you 3/16". Weld to floor also, replace floor if required. Paint all with a rust paint (you can't future weld thru spray rubber or ashpalt based coatings). Still workin great for me 1 year later. Lots of pics in my album section. Remember to remove tank and all flamable materials/fuels. Have a buddy of fire watch while welding.
Got any pics of your current condition?
Attached Thumbnails
Rear frame rail fix-img_1793.jpg   Rear frame rail fix-img_1794.jpg   Rear frame rail fix-img_1798.jpg   Rear frame rail fix-img_1796.jpg   Rear frame rail fix-img_1937.jpg
