rear cage for shocks
#1
Junior Member
Thread Starter
Join Date: Aug 2012
Location: chino hills ca
Posts: 55
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 L6
rear cage for shocks
anybody running rear shock hoops/cage in their xj's? currently this is my next project but im tryin to get some good ideas and theres no decent pics on google images lol if anyone has some pics please post cuz im trying to find some good designs that still allow decent amount of usable room in the back and have good strong mounting points.
#7
Member
Join Date: Jul 2012
Location: Buckeye AZ
Posts: 140
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0

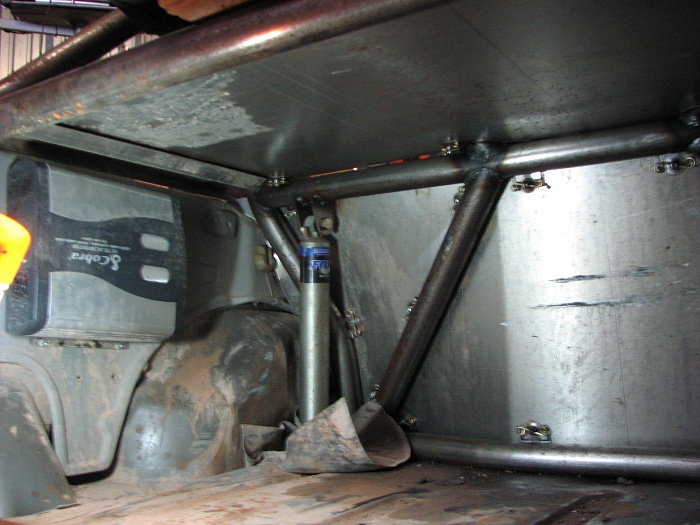

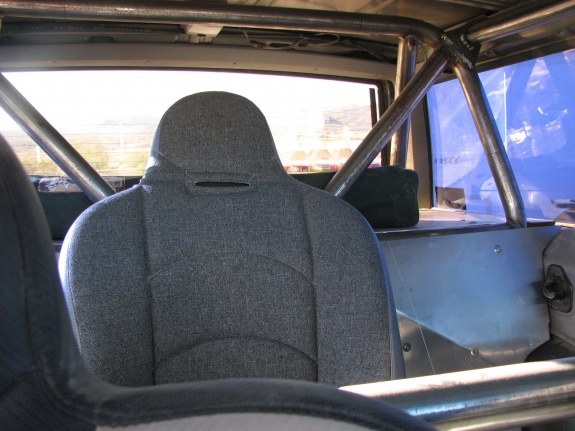

Here are some more pics in this thread. Page 2 has some detailed shots of the mounting.. It's enclosed because my batts will go back there along with a big power inverter (you can see the inverter on the side in the pics)to run an air compressor & welder. Tools, parts & an ice chest also go under the panel.. That leaves a deck to put a case of water & other stuff.. After the crash, the spare tire is mounted there.
Trending Topics
#8
Junior Member
Thread Starter
Join Date: Aug 2012
Location: chino hills ca
Posts: 55
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 L6
That's sweet, and a great idea for using more room. I carry tons of tools, MREs, first aid, water, blankets, and bolt cutters at all times so I gotta incorporate something similiar to this if I wanna keep all my survival gear inside lol
#9
Member
Join Date: Jul 2012
Location: Buckeye AZ
Posts: 140
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Did the pics in that thread help, as far as mounting?
#10
Junior Member
Thread Starter
Join Date: Aug 2012
Location: chino hills ca
Posts: 55
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 L6
Sort of, I noticed u added plate to the frame underneath and attached your sliders to it. Is that also where the cage goes?
#11
Member
Join Date: Jul 2012
Location: Buckeye AZ
Posts: 140
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Yes, I built full length frame stiffeners made of 10ga cold rolled steel.. The rocker panel was cut out then 2"x4"x3/16" tube welded in. The 2"x.120" (.120"=1/8") tube comes from the frame stiffener to the slider(2x4), and the cage is welded to that. The hoop the shocks are mounted to, is welded to the side of the frame stiffeners. This can be seen in the pics from page 2 in the above thread..
#12
Junior Member
Thread Starter
Join Date: Aug 2012
Location: chino hills ca
Posts: 55
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 L6
Gotcha, so these frame stiffeners really get the job done huh? Definitely plan on doing that, looks like theyre pretty easy to install, was their any technique with the rosette holes as far as placement? I know companies sell these stiffeners but I wanna make em myself so I can build my cage etc off of them
#13
Former Sponsor
Join Date: May 2010
Location: meriden Ct
Posts: 2,181
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0

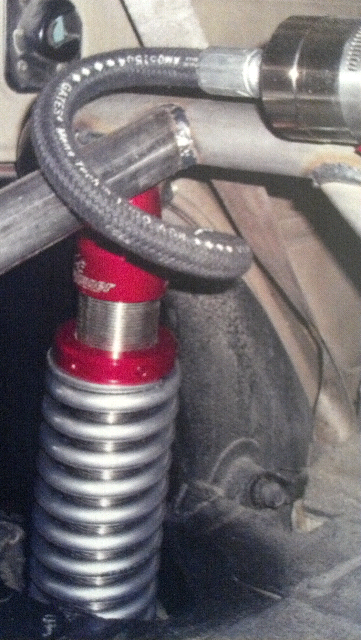

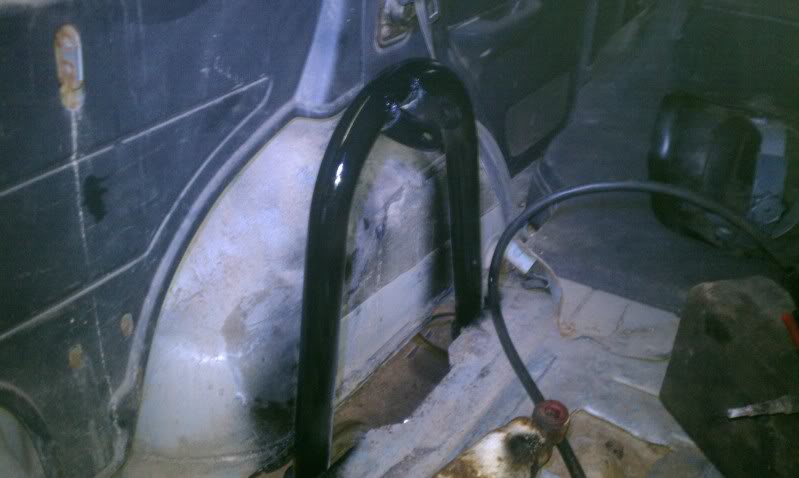

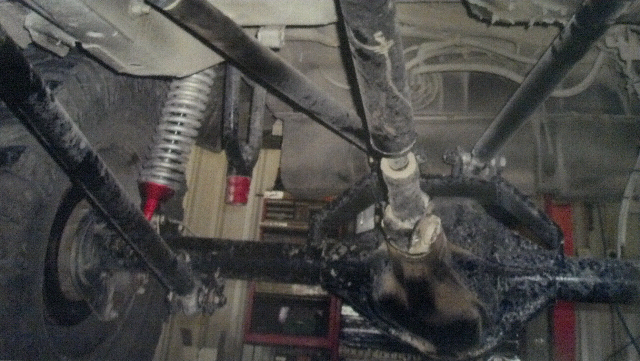

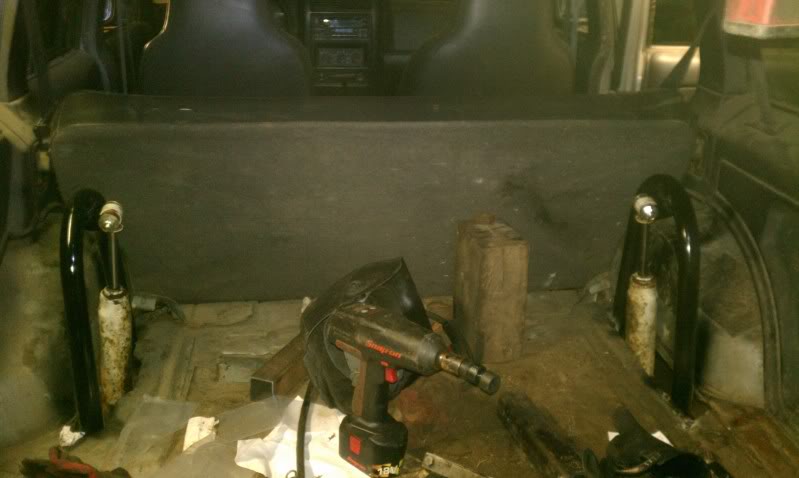

Heres mine. very simple. www.liquidironindustries.com for the hoop kit. just tall shock munts welded to the pring plate on the bottom
