Ironrock vs. Artec truss for Dana 30?
#1
Seasoned Member
Thread Starter
Join Date: Jul 2014
Location: Albuquerque
Posts: 389
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L Inline 6
Ironrock vs. Artec truss for Dana 30?
Am going to be trussing my Dana 30 up front. Am trying to decide between the Artec and the Ironrock.
Any body have any experience with either, or with both? The Ironrock is a true end to end truss, but I have heard really good things about the Artec, and not just about price.
I know the Ironrock comes with c-gussets, but I'll probably spring for the Artec ones, any ways.
So, any thoughts, opinions, or preferably, actual experience with either or both?
Any body have any experience with either, or with both? The Ironrock is a true end to end truss, but I have heard really good things about the Artec, and not just about price.
I know the Ironrock comes with c-gussets, but I'll probably spring for the Artec ones, any ways.
So, any thoughts, opinions, or preferably, actual experience with either or both?
#3
Seasoned Member
Thread Starter
Join Date: Jul 2014
Location: Albuquerque
Posts: 389
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L Inline 6
Thanks Fred,
You're probably right, except I keep finding build threads with trusses going on, so I know at least a couple people do it. I'd love to throw in a 44, but don't have the OUTRAGEOUS sums of money they want for them these days. You can pick up a brand new bolt in 30 for under $500, but a stock 44 is almost 4 times that, and then you still have to regear and lock it! Insane!
You're probably right, except I keep finding build threads with trusses going on, so I know at least a couple people do it. I'd love to throw in a 44, but don't have the OUTRAGEOUS sums of money they want for them these days. You can pick up a brand new bolt in 30 for under $500, but a stock 44 is almost 4 times that, and then you still have to regear and lock it! Insane!
#4
CF Veteran
Join Date: Jun 2011
Location: Louisville,KY
Posts: 8,014
Likes: 0
Received 14 Likes
on
14 Posts
Model: Cherokee
I'm with fred i would look in to a 1980 and newer jeep wagoneer dana 44 swap.Or if you get lucky jk rubicon 44s front and rear.They are worth the swap they are not a normal dana 44 the center is more like a dana 60.
#6
And don't bother trussing a lp dana 30. They are 45% weaker than the hp Dana 30.
Personally I feel the dana 30 is narrow enough that it does not need trussed. Holy cow just look at some of the jeep jumping videos. LOL
Aftermarket carrier and chromoly is all you need. Well unless you are jumping, etc...... or have a real heavy rig.
Personally I feel the dana 30 is narrow enough that it does not need trussed. Holy cow just look at some of the jeep jumping videos. LOL
Aftermarket carrier and chromoly is all you need. Well unless you are jumping, etc...... or have a real heavy rig.
Last edited by holycaveman; 10-21-2014 at 10:18 AM.
#7
CF Veteran
Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes
on
9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
it's a humongous pain in the *** swapping an old rusty housing into the front of your jeep. there are many hidden costs, unexpected challenged, blah blah blah. buy whichever truss is cheaper for the D30 if you really feel the need for a truss. it will help, but if you're on a tight budget there are plenty other things I could think of spending money on first
Trending Topics
#8
CF Veteran
Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes
on
9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
And don't bother trussing a lp dana 30. They are 45% weaker than the hp Dana 30.
Personally I feel the dana 30 is narrow enough that it does not need trussed. Holy cow just look at some of the jeep jumping videos. LOL
Aftermarket carrier and chromoly is all you need. Well unless you are jumping, etc...... or have a real heavy rig.
Personally I feel the dana 30 is narrow enough that it does not need trussed. Holy cow just look at some of the jeep jumping videos. LOL
Aftermarket carrier and chromoly is all you need. Well unless you are jumping, etc...... or have a real heavy rig.
but I'd agree, if you're gonna beef up a D30 it may as well be HP
#9
#10
CF Veteran
Join Date: Feb 2012
Location: Hamburg, NY
Posts: 1,258
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
#11
CF Veteran
Join Date: Mar 2013
Location: salem, OR
Posts: 1,023
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0L
Thanks Fred,
You're probably right, except I keep finding build threads with trusses going on, so I know at least a couple people do it. I'd love to throw in a 44, but don't have the OUTRAGEOUS sums of money they want for them these days. You can pick up a brand new bolt in 30 for under $500, but a stock 44 is almost 4 times that, and then you still have to regear and lock it! Insane!
You're probably right, except I keep finding build threads with trusses going on, so I know at least a couple people do it. I'd love to throw in a 44, but don't have the OUTRAGEOUS sums of money they want for them these days. You can pick up a brand new bolt in 30 for under $500, but a stock 44 is almost 4 times that, and then you still have to regear and lock it! Insane!
If he's sticking to 33"-35" a d30 trussed and plated is plenty stout and cheaper than a 44
If going bigger than ya a 44 would be best.
Simple as that.
#12
CF Veteran
Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes
on
9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
I think an east coast crawler going up slick rocky terrain will be able to break on a smaller tire, where a west coast guy taking it easy and crawling on the dry rocks might be able to do a D30 on 37's (actually I've seen it on 39's. dumb)
what warrants a bigger axle is: driving style
#13
CF Veteran
Join Date: Dec 2011
Location: PA KOTUFU!
Posts: 1,777
Likes: 0
Received 16 Likes
on
15 Posts
Year: 1998
Engine: 4.0L 162,000
Am going to be trussing my Dana 30 up front. Am trying to decide between the Artec and the Ironrock.
Any body have any experience with either, or with both? The Ironrock is a true end to end truss, but I have heard really good things about the Artec, and not just about price.
I know the Ironrock comes with c-gussets, but I'll probably spring for the Artec ones, any ways.
So, any thoughts, opinions, or preferably, actual experience with either or both?
Any body have any experience with either, or with both? The Ironrock is a true end to end truss, but I have heard really good things about the Artec, and not just about price.
I know the Ironrock comes with c-gussets, but I'll probably spring for the Artec ones, any ways.
So, any thoughts, opinions, or preferably, actual experience with either or both?

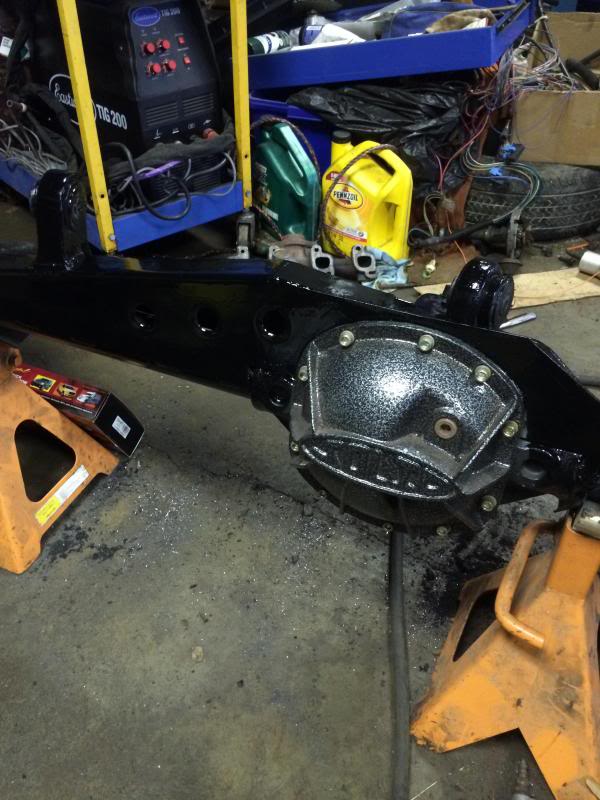

We will be doing the same. IronRock truss with their 'inner'C plus Artec 'outer'C, plus IronRock inner axle sleeve.
And IronRock 8.25 Truss.
$350+$80+$110+$130= $670
With Rock Krawler 3 link long arms, chrome moly axles shafts, TrueTracs, AW-4 + 4.56s and 35" duratracs.
It's not 44s or D60s and I am OK with that.
#14
there are many good reasons to go to a D44 on 35's. I can think of at least 4 right off the top of my head. but I can also think of 3 good reasons why you also shouldn't.
I think an east coast crawler going up slick rocky terrain will be able to break on a smaller tire, where a west coast guy taking it easy and crawling on the dry rocks might be able to do a D30 on 37's (actually I've seen it on 39's. dumb)
what warrants a bigger axle is: driving style
I think an east coast crawler going up slick rocky terrain will be able to break on a smaller tire, where a west coast guy taking it easy and crawling on the dry rocks might be able to do a D30 on 37's (actually I've seen it on 39's. dumb)
what warrants a bigger axle is: driving style
I am in the east coast slick rocks though.
Unfortunately it takes the skinny pedal and bouncing to get anywhere.
#15
CF Veteran
Join Date: Mar 2013
Location: salem, OR
Posts: 1,023
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0L
42" just recently lol it's amazing it's still alive. That's why I said terrain comes in second. I wanted to say driving style but that is such a wide variety that I felt tire size is more accurate as it has more accurate results: 35" are the middle tire where it's a toss up on 44 or 30 depending on terrain. But say 33" a 44 is going to cost more, hang lower and generally be pointless even in west coast and east coast situations as a free stock 30 with plating and truss made from scratch(use home fab as a base) will be plenty strong and cheaper.
