How much lift do I have?

Thread Tools

Search this Thread

Old Jun 13, 2009 | 12:29 PM
  #1
Hushkababa's Avatar
Thread Starter
Junior Member

Joined: Jun 2009
Posts: 43
Likes: 0
Year: 1997
Model: Cherokee
Engine: 4.0L I6
Default How much lift do I have?

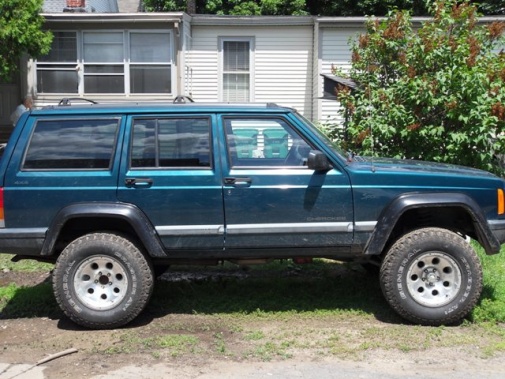

Finally got some pictures so i can get some people's opinion on how much lift my jeep has. It is on 31's right now.





Attached Images
Reply
Old Jun 13, 2009 | 12:32 PM
  #2
clayton3854's Avatar
CF Veteran

Joined: Mar 2009
Posts: 2,287
Likes: 0
From: Westfield, MA
Year: 1999.
Model: Cherokee
Engine: 4.0, I6
Default

looks to be around a 3" lift give or take
Reply
Old Jun 13, 2009 | 12:33 PM
  #3
clayton3854's Avatar
CF Veteran

Joined: Mar 2009
Posts: 2,287
Likes: 0
From: Westfield, MA
Year: 1999.
Model: Cherokee
Engine: 4.0, I6
Default

also your frist 3 pics arnt workin
Reply
Old Jun 13, 2009 | 12:33 PM
  #4
jd4x426's Avatar
Senior Member

Joined: Jan 2009
Posts: 920
Likes: 1
Year: 1996
Model: Cherokee
Engine: 4.0
Default

probably a 3 inch but measure it and make sure use the search feature it will give stock height and how and where to measure from
Reply
Old Jun 13, 2009 | 12:34 PM
  #5
Hushkababa's Avatar
Thread Starter
Junior Member

Joined: Jun 2009
Posts: 43
Likes: 0
Year: 1997
Model: Cherokee
Engine: 4.0L I6
Default

pics arent working? they are a little oversized but any smaller and they wont show anything. without seeing pics howd u know lift, and any help posting pics would be appreciated, i am new
Reply
Old Jun 13, 2009 | 12:36 PM
  #6
clayton3854's Avatar
CF Veteran

Joined: Mar 2009
Posts: 2,287
Likes: 0
From: Westfield, MA
Year: 1999.
Model: Cherokee
Engine: 4.0, I6
Default

first 3 pics just a little box with an x through it then a pic of ur xj side ways then a pic of 2 wheels compared. i estimated off the sideways pic
Reply
Old Jun 13, 2009 | 12:37 PM
  #7
Drewdertuder's Avatar
Senior Member

Joined: Sep 2008
Posts: 885
Likes: 0
From: Ga
Year: 1991
Model: Cherokee
Engine: 4.0 inline 6
Default

im guessing 3 with the rear sagging or spacer in the front.
Reply
Old Jun 13, 2009 | 12:38 PM
  #8
Hushkababa's Avatar
Thread Starter
Junior Member

Joined: Jun 2009
Posts: 43
Likes: 0
Year: 1997
Model: Cherokee
Engine: 4.0L I6
Default

when i first made the post i tried using links from photobucket, then found the file manager on here, so the first 3 pics are nothing, thanks everyone for the help
Reply
Old Jun 13, 2009 | 12:43 PM
  #9
BlueXJ's Avatar
Renix Super Guru

Joined: Mar 2008
Posts: 24,653
Likes: 19
From: In yourz postez fissin jurr spelinzs
Year: 1990XJ/1989MJ
Model: Comanche
Engine: 4.0L Renix
Default

Measure from the center of the wheel/axle to the flare and record the number. Then compare it to the numbers listed in the lift height thread mentioned earlier.
Reply
Old Jun 13, 2009 | 12:44 PM
  #10
Hushkababa's Avatar
Thread Starter
Junior Member

Joined: Jun 2009
Posts: 43
Likes: 0
Year: 1997
Model: Cherokee
Engine: 4.0L I6
Default

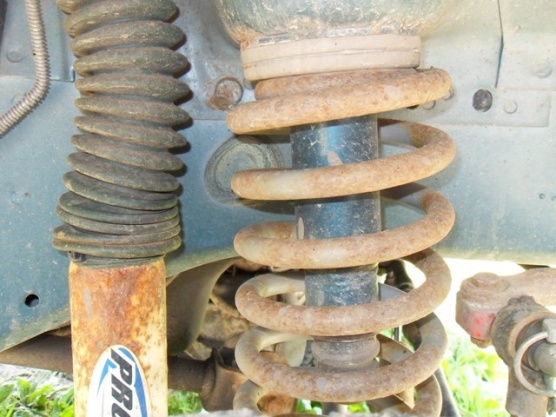

heres some pics of the leaf n coil springs, not sure if this helps at all, also any reccomendations for new shocks would be appreciated
Attached Images
Reply
Old Jun 13, 2009 | 12:46 PM
  #11
clayton3854's Avatar
CF Veteran

Joined: Mar 2009
Posts: 2,287
Likes: 0
From: Westfield, MA
Year: 1999.
Model: Cherokee
Engine: 4.0, I6
Default

Originally Posted by BlueXJ
Measure from the center of the wheel/axle to the flare and record the number. Then compare it to the numbers listed in the lift height thread mentioned earlier.
X2
Reply
Old Jun 13, 2009 | 12:56 PM
  #12
Hushkababa's Avatar
Thread Starter
Junior Member

Joined: Jun 2009
Posts: 43
Likes: 0
Year: 1997
Model: Cherokee
Engine: 4.0L I6
Default

The front is 22" from center to flare, so 4 1/2 there, and the back is 20" so 3 back there, anyone think that sounds about right, and should i be adding a couple leaves to the back to fix the sag? when the jeep is loaded i get some rub on the flares in back, though i do need new shocks.
Reply
Old Jun 13, 2009 | 01:03 PM
  #13
clayton3854's Avatar
CF Veteran

Joined: Mar 2009
Posts: 2,287
Likes: 0
From: Westfield, MA
Year: 1999.
Model: Cherokee
Engine: 4.0, I6
Default

i wouldnt get new leafs just get 1 1/2" blocks and put them back there. leafs will just sag again in time
Reply
Old Jun 13, 2009 | 09:14 PM
  #14
4.3L XJ's Avatar
CF Veteran

Joined: Aug 2008
Posts: 6,588
Likes: 495
From: Chico, CA
Year: 1986
Model: Cherokee
Engine: 4.3L with headers and full 3" exhaust system
Default

Originally Posted by Hushkababa
The front is 22" from center to flare, so 4 1/2 there, and the back is 20" so 3 back there, anyone think that sounds about right, and should i be adding a couple leaves to the back to fix the sag? when the jeep is loaded i get some rub on the flares in back, though i do need new shocks.
The most economical thing you could do is to discard all the leaves below the main leave and replace it with the bottom three leaves from an 80s or 90s heavy duty spring off an S10. That will give you about the right amount of lift and a good ride also.
Reply
Old Jun 14, 2009 | 12:07 AM
  #15
That Jeep Guy XJMJ's Avatar
CF Veteran
15 Year Member
Liked
Loved
Community Favorite

Joined: Jun 2009
Posts: 2,611
Likes: 447
From: Michigan
Year: 1987 MJ, 1973 J2000, 1986 XJ, 08 JK
Model: Comanche (MJ)
Engine: 4.0L H.O
Default

my suggestion would be longer shackls... lift blocks is never really a great idea... when you run a lift with lift blocks it creates a much greater chance of axle wrap.... meaning your rear axle will have a greater tendency to pitch and turn...which will cause un-even tire wear and other issues. the closer the axle can stay to the leaf springs the better thats why its best to just run lift leaf packs, the idea with the S10 springs would work well also. I've never run them but i know of a few people that have and yes they do ride fairly smooth still
Reply
