Cherokee Chat General non-tech Cherokee chat
XJ/MJ/ZJ/WJ

How much lift?

Thread Tools

Search this Thread

Old Feb 11, 2015 | 04:22 PM
  #76
JeepaholicNinja's Avatar
Senior Member

Joined: Jul 2013
Posts: 799
Likes: 0
From: Maine
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by NicksXj104
What is the most amount of lift you can get out of shackle?
Usually 2 inches is about as I as you can go and still be somewhat safe
Reply
Old Feb 11, 2015 | 06:21 PM
  #77
XJlimitedx99's Avatar
CF Veteran
10 Year Member
Liked
Loved
Community Favorite

Joined: Jul 2012
Posts: 3,143
Likes: 361
From: Andover, VT
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0 L
Default

Originally Posted by NicksXj104
What is the most amount of lift you can get out of shackle?

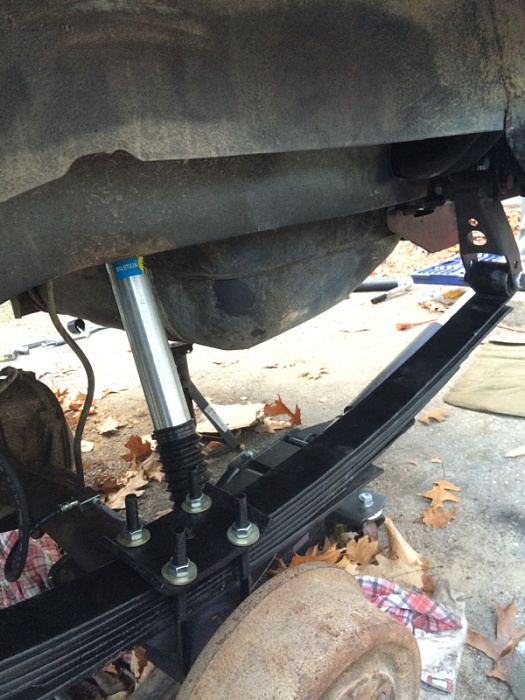

I have like 2-3" of lift from my shackles, but I think they're too long. The arc that the shackle travels on and the arc the leaf travels on don't work very well together.

How much lift?-image-1232731242.jpg
Reply
Old Feb 11, 2015 | 10:03 PM
  #78
NicksXj104's Avatar
Thread Starter
Junior Member

Joined: Feb 2015
Posts: 37
Likes: 0
Model: Cherokee
Default

Originally Posted by XJlimitedx99
I have like 2-3" of lift from my shackles, but I think they're too long. The arc that the shackle travels on and the arc the leaf travels on don't work very well together.

Attachment 265239
I think I'm going to go with 3.5 inch leafs and 2 inch shackles.
Reply
Old Feb 11, 2015 | 10:13 PM
  #79
unidentifiedbomb's Avatar
CF Veteran

Joined: May 2011
Posts: 6,098
Likes: 250
From: DE
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

That's fine. Then if you want to get shackle relocators in the future you can drop the shackle to 1" if you get an extended shackle with two mounts like RC has.
Reply
Old Feb 12, 2015 | 07:35 AM
  #80
NicksXj104's Avatar
Thread Starter
Junior Member

Joined: Feb 2015
Posts: 37
Likes: 0
Model: Cherokee
Default

Originally Posted by unidentifiedbomb
That's fine. Then if you want to get shackle relocators in the future you can drop the shackle to 1" if you get an extended shackle with two mounts like RC has.
Is there 1-2 inch shackles?
Reply
Old Feb 12, 2015 | 08:06 AM
  #81
unidentifiedbomb's Avatar
CF Veteran

Joined: May 2011
Posts: 6,098
Likes: 250
From: DE
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

Originally Posted by NicksXj104
Is there 1-2 inch shackles?
Rough country makes them
Reply
Old Feb 12, 2015 | 12:07 PM
  #82
SteveMongr's Avatar
Beach Bum

Joined: Jul 2011
Posts: 6,123
Likes: 22
From: Cape Hatteras, North Carolina
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Default

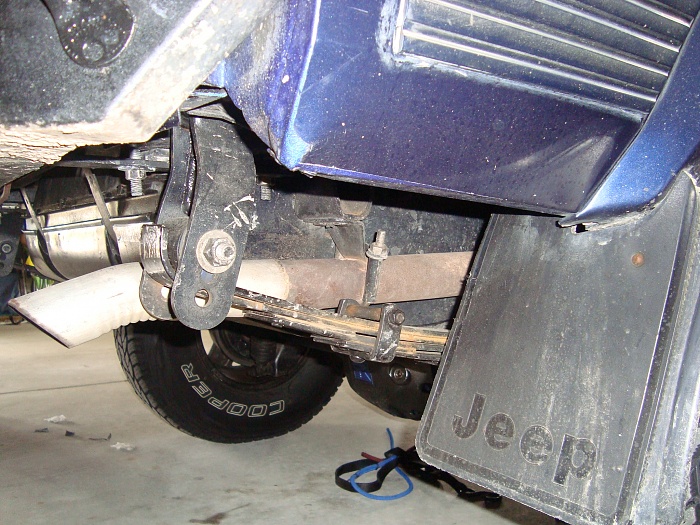

ClaytonOffraod makes a 3-way adjustable in 1/4" steel, 1.5" 2" 2.5". Also has an oversize rubber bushing (pic).
Also this; http://www.seriousoffroadproducts.co...Shackle-RE2705
And this; http://www.seriousoffroadproducts.co...-REAR-5-RE2700

Stay away from these; http://www.ebay.com/itm/84-01-Jeep-Cherokee-XJ-1-5-2-Adjustable-Rear-Shackle-Lift-Kit-/261313946709?pt=Motors_Car_Truck_Parts_Accessories&fits=Model%3ACherokee&hash=item3cd7866455&vxp=mtr
Attached Thumbnails How much lift?-dsc03683.jpg
Reply
Old Feb 12, 2015 | 02:19 PM
  #83
NicksXj104's Avatar
Thread Starter
Junior Member

Joined: Feb 2015
Posts: 37
Likes: 0
Model: Cherokee
Default

Originally Posted by SteveMongr
ClaytonOffraod makes a 3-way adjustable in 1/4" steel, 1.5" 2" 2.5". Also has an oversize rubber bushing (pic).
Also this; http://www.seriousoffroadproducts.co...Shackle-RE2705
And this; http://www.seriousoffroadproducts.co...-REAR-5-RE2700

Stay away from these; http://www.ebay.com/itm/84-01-Jeep-Cherokee-XJ-1-5-2-Adjustable-Rear-Shackle-Lift-Kit-/261313946709?pt=Motors_Car_Truck_Parts_Accessories&fits=Model%3ACherokee&hash=item3cd7866455&vxp=mtr

Is there a down side to shackles? What are they
Reply
Old Feb 12, 2015 | 06:30 PM
  #84
NicksXj104's Avatar
Thread Starter
Junior Member

Joined: Feb 2015
Posts: 37
Likes: 0
Model: Cherokee
Default

Originally Posted by SteveMongr
ClaytonOffraod makes a 3-way adjustable in 1/4" steel, 1.5" 2" 2.5". Also has an oversize rubber bushing (pic).
Also this; http://www.seriousoffroadproducts.co...Shackle-RE2705
And this; http://www.seriousoffroadproducts.co...-REAR-5-RE2700

Stay away from these; http://www.ebay.com/itm/84-01-Jeep-Cherokee-XJ-1-5-2-Adjustable-Rear-Shackle-Lift-Kit-/261313946709?pt=Motors_Car_Truck_Parts_Accessories&fits=Model%3ACherokee&hash=item3cd7866455&vxp=mtr
What are the cons to shackles? Do they mess anything up?
Reply
Old Feb 13, 2015 | 07:36 AM
  #85
SteveMongr's Avatar
Beach Bum

Joined: Jul 2011
Posts: 6,123
Likes: 22
From: Cape Hatteras, North Carolina
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Default

Originally Posted by NicksXj104
What are the cons to shackles? Do they mess anything up?
No real cons with a quality shackle that provides less than 2" of lift. What they do change slightly is the pinion angle, usually not an issue but should be considered.
When installing leaf springs that lift a rig, extended shackles are necessary to get the full movement of springs.
I prefer rubber bushings but most aftermarket shackles are poly (except Clayton).
Reply
Old Feb 15, 2015 | 05:02 AM
  #86
SteveMongr's Avatar
Beach Bum

Joined: Jul 2011
Posts: 6,123
Likes: 22
From: Cape Hatteras, North Carolina
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Default

Here is a shackle that was too long and too cheap..
Attached Images
Reply
Old Feb 15, 2015 | 05:11 AM
  #87
SteveMongr's Avatar
Beach Bum

Joined: Jul 2011
Posts: 6,123
Likes: 22
From: Cape Hatteras, North Carolina
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Default Shackles

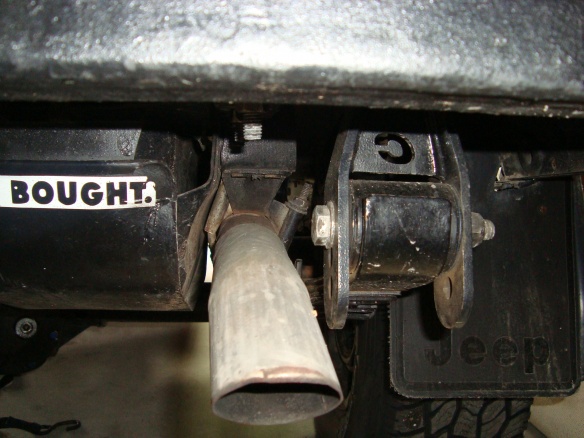

Comparison picture.
Attached Thumbnails How much lift?-dsc03682.jpg
Reply
Old Feb 23, 2015 | 02:38 PM
  #88
NicksXj104's Avatar
Thread Starter
Junior Member

Joined: Feb 2015
Posts: 37
Likes: 0
Model: Cherokee
Default

What size shocks should I be using right now with what is on it?
Reply
Old Feb 23, 2015 | 05:11 PM
  #89
PurpleToxin505's Avatar
CF Veteran

Joined: Sep 2013
Posts: 2,820
Likes: 5
From: Albuquerque, NM
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Originally Posted by NicksXj104
What size shocks should I be using right now with what is on it?
Just measure, check what you need to have at ride height with the amount of up travel you want.
Reply
