how to make gutter mounts?
#1
Junior Member
Thread Starter
Join Date: Jul 2011
Location: WI
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: I6 4.0 high output!
how to make gutter mounts?
i have a roof rack i made i was just wonders how to make the gutters mounts o i dont have to use my freakin rack bars that go across anybody who can tell me how to make em or what i need that woulod be great.
Deon
Deon
#2
Member
Join Date: Jan 2012
Location: grants pass ,Or
Posts: 179
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: straight 6- 4.0

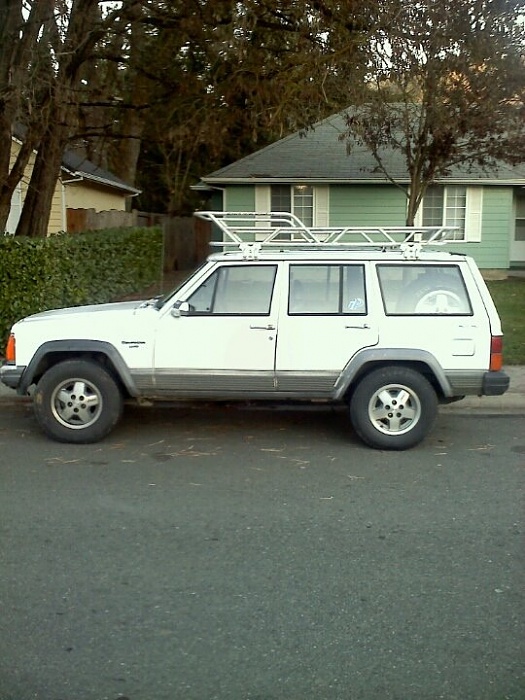

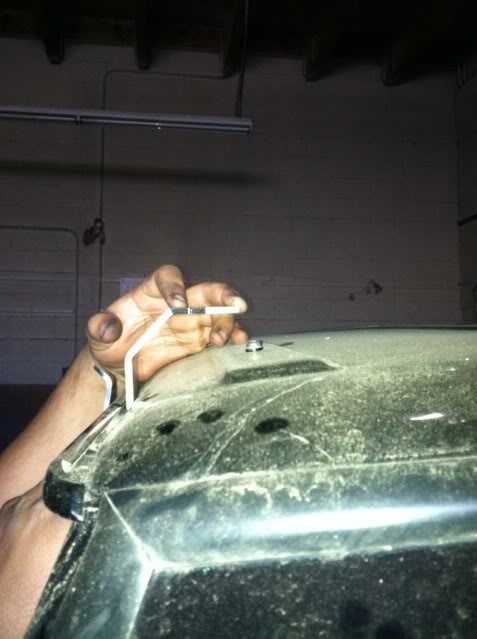

I don't know if you can see it, but its 1/8 aluminum plate with 3/4 tubing cut in half and welded on then I put stainless bolts through the holes bent the bolts slightly out then welded a tab to go under the gutter. I will post pics tomorrow if you still Ned help.
#6
Member
Join Date: Jan 2012
Location: grants pass ,Or
Posts: 179
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: straight 6- 4.0
Originally Posted by tylers89
I don't know if you can see it, but its 1/8 aluminum plate with 3/4 tubing cut in half and welded on then I put stainless bolts through the holes bent the bolts slightly out then welded a tab to go under the gutter. I will post pics tomorrow if you still Ned help.

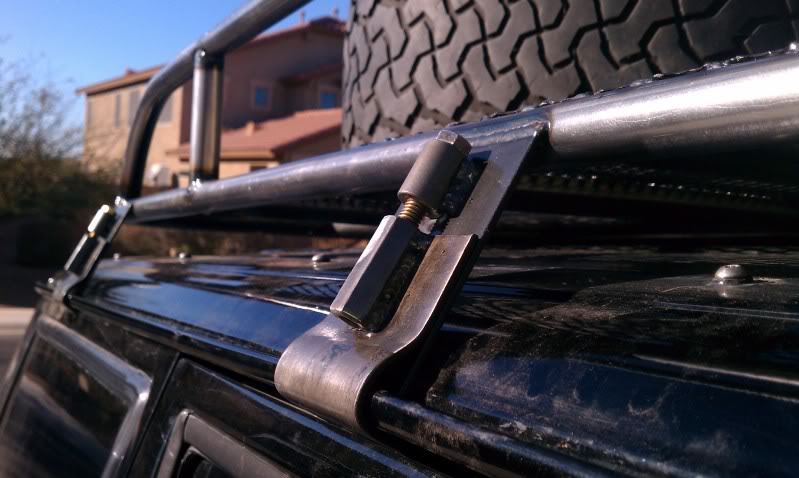

Here's mine . Works well
#7
CF Veteran
Join Date: Oct 2010
Location: SoCal, San Fernando
Posts: 1,082
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0 I6

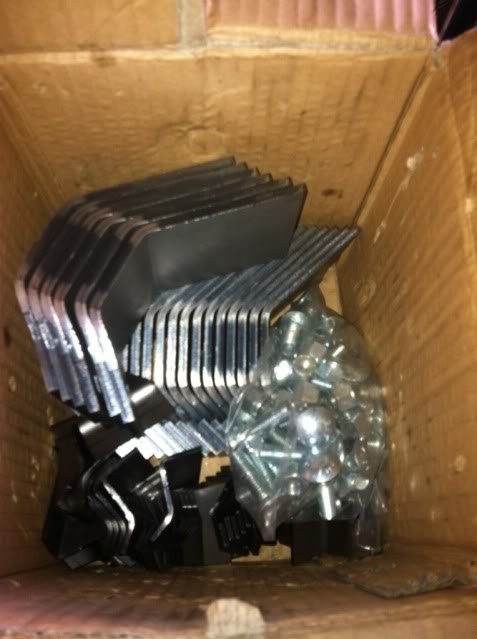

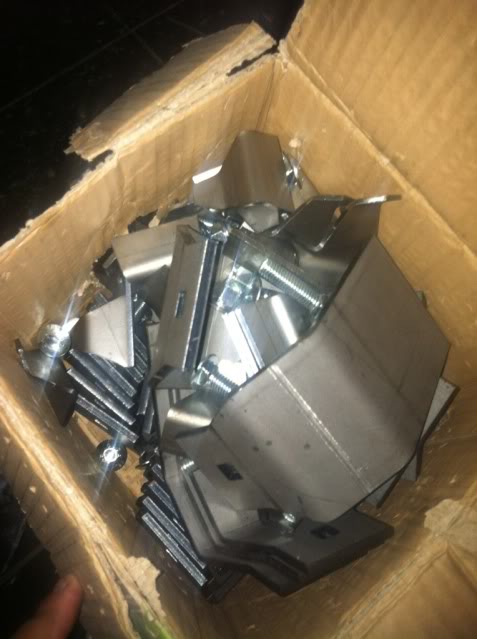

i actually have a box full of them in my room, when i made my roof rack i went to my buddies machine shop and asked him to make some gutter mounts that i designed and i told him to make some extras just incase and i paid it for it which wasnt too bad but all i had to do was weld a bolt to one part and a holder section on the other

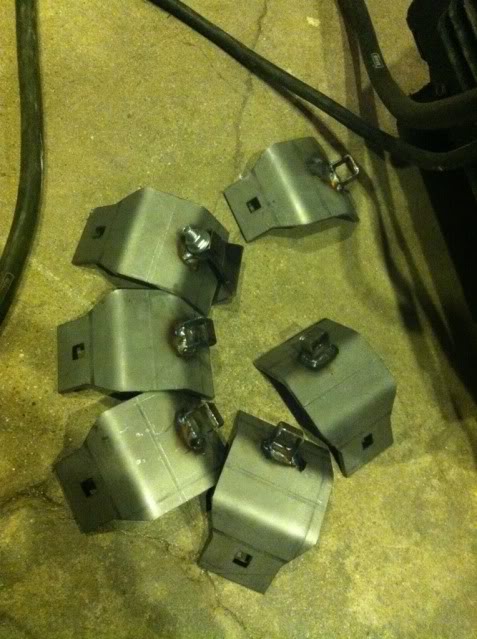

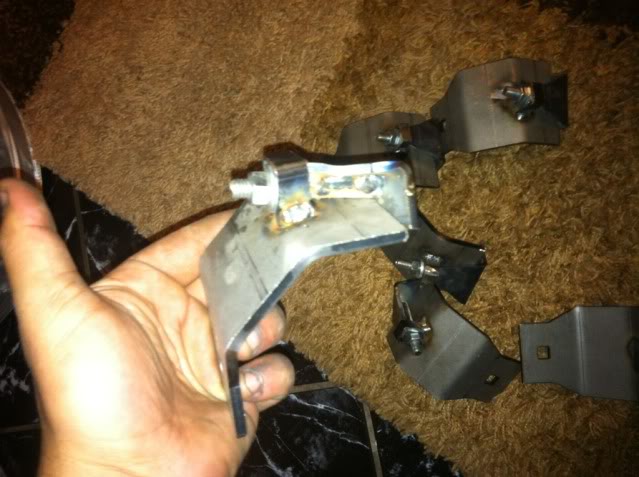

here are some pics

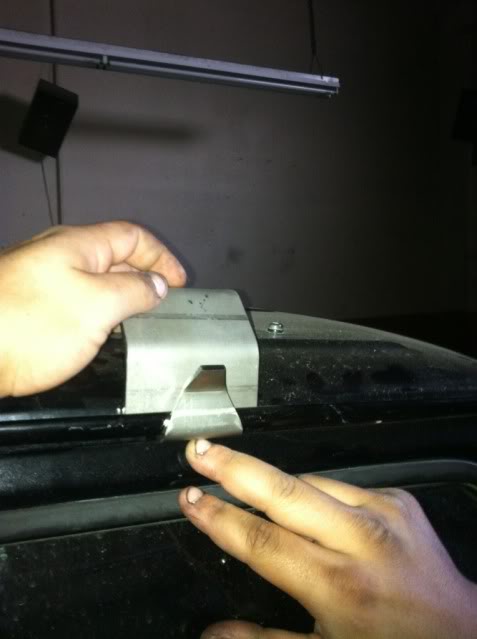

cant see very well in this pic but this is how it looks on my jeep
if you have any questions pm me
here are some pics

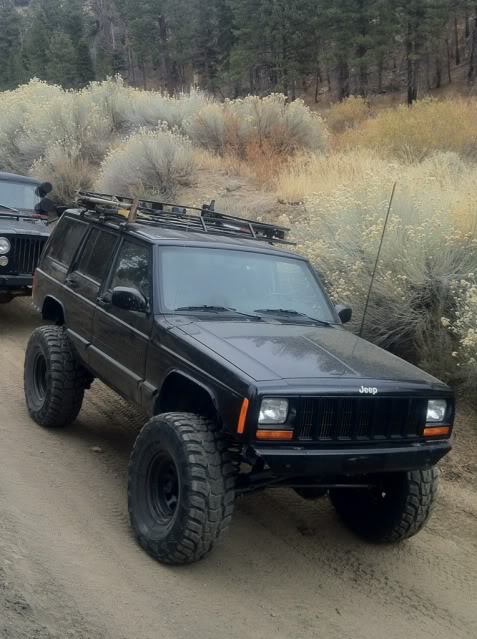

cant see very well in this pic but this is how it looks on my jeep
if you have any questions pm me
