Hood vent homemade

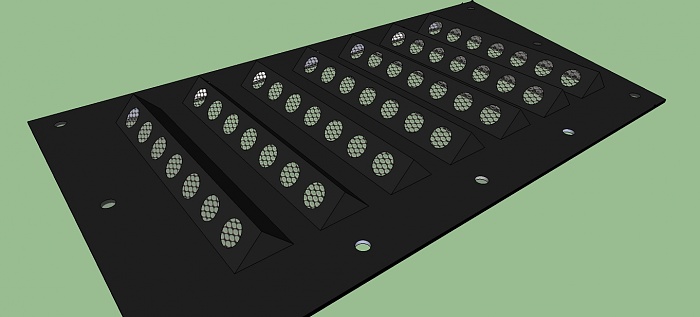

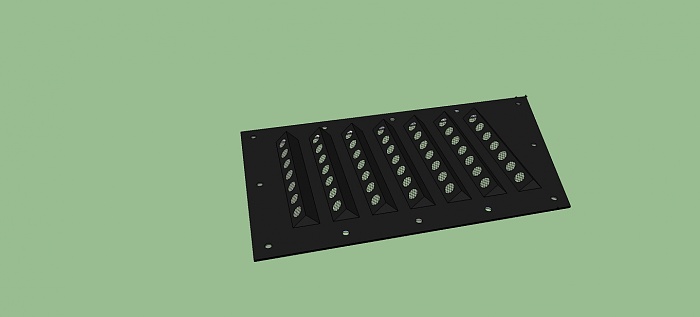

Heres a hood vent that I designed on Google Sketchup. With paint I may have $10 in these. I have all the holes drilled out and ready to weld a little. They are 14 1/2" on the long side x 12" on the short side and 8" wide. The ridges are going to be 3/4 X 3/4 angle with holes drilled into the side facing windshield . They really shouldn't allow water to enter the engine bay. Let me know what you guys think
#3
Former Sponsor
Join Date: Feb 2010
Location: Hesperia
Posts: 2,021
Likes: 0
Received 1 Like
on
1 Post
Year: 89
Model: Cherokee
Engine: 4.0
I dont see any problems with your design,
I might borrow the design when i get around to putting a new hood on if you dont mind
what are you using to drill the holes and keep them in line?
I might borrow the design when i get around to putting a new hood on if you dont mind
what are you using to drill the holes and keep them in line?
#5
Junior Member
Thread Starter
Go right ahead and use the design. as far as measuring just a tape measure. The actual holes in the ridges are easy. I just turned the angle over with one edge facing up. Marked your distance. Then go to drill press and just let the bit slide down the edge facing up and you will have a consistent distance plus the hole will be elevated up from the hood surface to keep water from entering the engine bay. of course this is being done before welding to the actual plate .i will post some pics up tomorrow when I get back in the garage
Last edited by lilgription; 12-22-2013 at 01:48 PM.
Trending Topics
#8
Junior Member
Thread Starter
#9
CF Veteran
Join Date: Mar 2012
Location: Richmond, VA
Posts: 1,369
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Always seemed to me like you could cut a rectangles out the hood and weld or rivet in upside down broiler pans for pretty good looking vents/louvers.
#10
::CF Administrator::
#12
Newbie
Join Date: Feb 2012
Location: Nevada
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Great job I think I'm going to do this as my next project for my 96 XJatittude..
After I install my Flowmaster Super 44..An again great design...
After I install my Flowmaster Super 44..An again great design...
#13
Junior Member
Thread Starter
