Hi lift idea

Thread Tools

Search this Thread

Old 10-10-2014, 09:39 PM
  #1
Seasoned Member
Thread Starter

fafafofi's Avatar

Join Date: Feb 2009
Location: Glenwood Springs, CO
Posts: 371
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000 - Murdered out
Model: Cherokee
Engine: 4.0 I6
Default

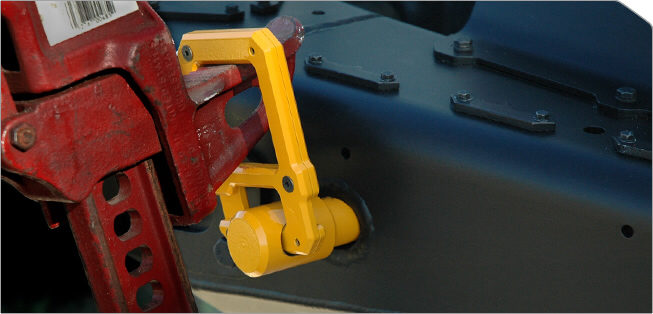

Can you use a D ring receiver mount as a hi lift lift point? Like this. Hi lift idea-image-3493799516.jpg

Now that I visualize the Jeep in the air, not a good idea. But what about this "Hi-lift shackle"

Last edited by fafafofi; 10-10-2014 at 09:49 PM.
Old 10-10-2014, 11:55 PM
  #2
Junior Member

KrayXJ77's Avatar

Join Date: Aug 2014
Location: NY
Posts: 95
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998, 1997
Model: Cherokee
Engine: 4.0 6Cyl, 4.0 6Cyl
Default

I wouldn't trust it. Especially offroad/on trails, could slip with minimal body roll or shifting
Even though I'm assuming that shackle was made for that purpose, I still don't think I would trust it
Old 10-11-2014, 02:00 AM
  #3
CF Veteran

andrewmp6's Avatar

Join Date: Jun 2011
Location: Louisville,KY
Posts: 8,014
Likes: 0
Received 14 Likes on 14 Posts
Model: Cherokee
Default

I have seen people do it and i wouldn't myself.Some off road bumpers like jcr offroad have slots cut in the bumper for the high lifts jaw to slide in and lift the jeep.
Old 10-11-2014, 02:11 PM
  #4
CF Veteran

Rock Toy's Avatar

Join Date: Feb 2010
Location: Cove, OR
Posts: 2,095
Likes: 0
Received 2 Likes on 2 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Default

I guess that the statement that everything is relative would be my take. I use shackles for are rated for 9500 lbs so lifting the front driver's side of a 4000 lb Cherokee will not be a problem strength wise, the next thing to think about is the terrain wouldn't want to try the high-lift on a shackle on steep ground.
Old 10-11-2014, 03:32 PM
  #5
CF Veteran

adamk's Avatar

Join Date: Aug 2010
Location: Greensboro
Posts: 1,220
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L
Default

Can you do it, yes. Have I done it, yes. Do I like doing it, no. But, if you're in a situation where you have to use a hi lift, I would use a shackle. I've lifted on my rear bumper without using a shackle and had the hi lift slide to the side and the whole vehicle fell. Once I started using the shackle, it no longer wanted to slide off the bumper. I tend not to use my hi lift anymore because it is very unstable most of the time no matter what/how you use it.
Old 10-13-2014, 06:44 PM
  #6
CF Veteran

caged's Avatar

Join Date: Nov 2008
Location: Northern Ontario, Canada
Posts: 7,874
Received 94 Likes on 85 Posts
Year: 1990, 1999, 2000
Model: Cherokee
Engine: 4.0
Default

i do it all the time. never had an issue.
my warn front bumper is angled, so the high lift won't work under it so using the d shackle is the perfect solution.
it's safer than under most bumpers where the jeep can slide sideways.

i have used it many times with my shackle receiver in my hitch to lift the whole jeep up and push it over to get it out of a rut.

a high lift is a very useful tool, as long as you know it and respect it.
Old 10-14-2014, 12:50 PM
  #7
CF Veteran

Rock Toy's Avatar

Join Date: Feb 2010
Location: Cove, OR
Posts: 2,095
Likes: 0
Received 2 Likes on 2 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Default

Depending on where I am, I sometime use my rock sliders instead of the bumper as a jacking point for the high lift. I also strap up the axle so I don't have to lift the body any higher than needed to change the tire.
Old 10-14-2014, 01:10 PM
  #8
Seasoned Member

XJNVA's Avatar

Join Date: Apr 2013
Location: Purcellville, Virginia
Posts: 429
Likes: 0
Received 0 Likes on 0 Posts
Year: '95
Model: Cherokee
Engine: 4.0 HO
Default

Originally Posted by adamk
Can you do it, yes. Have I done it, yes. Do I like doing it, no. But, if you're in a situation where you have to use a hi lift, I would use a shackle. I've lifted on my rear bumper without using a shackle and had the hi lift slide to the side and the whole vehicle fell. Once I started using the shackle, it no longer wanted to slide off the bumper. I tend not to use my hi lift anymore because it is very unstable most of the time no matter what/how you use it.
I second this. I lifted off my rear bumper (not using shackle,) and the jeep slipped a bit, and I busted a taillight. If you need to jack up from the bumper, use the shackle. I also agree that hi lifts are awfully unstable, and I don't use mine too often.
Old 10-14-2014, 08:00 PM
  #9
CF Veteran

thatXJguy's Avatar

Join Date: Jul 2012
Location: Hudson, FL
Posts: 3,683
Likes: 0
Received 2 Likes on 2 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L Inline 6
Default

I would use one of these while doing that:

http://carkart.com/index.php?route=p...FVNk7AodAUsA0w
Old 10-15-2014, 08:32 AM
  #10
CF Veteran

Fred/N0AZZ's Avatar

Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Likes: 0
Received 14 Likes on 14 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

There are specific tools made for Hi-Lift jacks to do about every job "Safely" I have and have used about all of them for one job or another from lifting/winching to straightening and pulling sheet metal.

They are the one tool I will not leave home without being it is the only way I can change a tire on mine, just use a rocker slider for that and the large base most of the time. Shame I don't have some photos in use but usually to busy to take any at the time
