Help with stabilizer install!!

Thread Tools

Search this Thread

Old 10-16-2012, 12:38 PM
  #1
Seasoned Member
Thread Starter

lonewolf411's Avatar

Join Date: Jan 2009
Location: Central NJ
Posts: 261
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default Help with stabilizer install!!

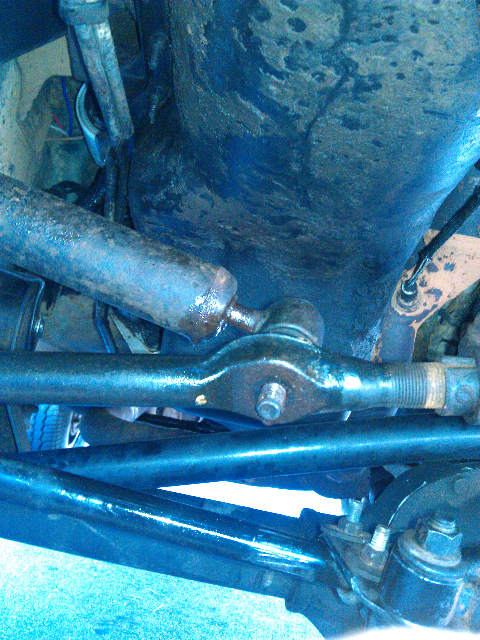

I got the frame side mount bolts un done and just took the castle nut off, is it threaded into the drag link or would a hamner knock it out? Any other tips on how to take the stabilizer off?
Attached Thumbnails Help with stabilizer install!!-forumrunner_20121016_133815.jpg
Old 10-16-2012, 12:39 PM
  #2
CF Veteran

sthon's Avatar

Join Date: Mar 2011
Location: California
Posts: 2,570
Likes: 0
Received 4 Likes on 4 Posts
Year: 1992
Model: Cherokee
Engine: 4.0 HO
Default

pickle fork and a BFH. Your local parts store should rent them, but for under $15 it's a nice tool to have on hand.
Old 10-16-2012, 12:45 PM
  #3
Seasoned Member
Thread Starter

lonewolf411's Avatar

Join Date: Jan 2009
Location: Central NJ
Posts: 261
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Ok how would I use it? Like where would I put the pickle fork in and hammer?
Old 10-16-2012, 12:48 PM
  #4
CF Veteran

stock95sport(for now)'s Avatar

Join Date: Nov 2011
Location: Manchester, N.H.
Posts: 1,122
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
Default

pickle fork between stabilizer and tie rod. in the crack. and you hit the fork on th end. forces itself between the two halves. same as tie rod end removal on most vehicles.
Old 10-16-2012, 12:56 PM
  #5
Old School CF Moderator

Xj88's Avatar

Join Date: May 2010
Location: Chattanooga
Posts: 9,652
Likes: 0
Received 3 Likes on 3 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Try to hammer it first to save a trip. But if not..Pickle fork.
Old 10-16-2012, 01:03 PM
  #6
CF Veteran

stock95sport(for now)'s Avatar

Join Date: Nov 2011
Location: Manchester, N.H.
Posts: 1,122
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
Default

Originally Posted by Xj88
Try to hammer it first to save a trip. But if not..Pickle fork.
as well as on the end of the stud, hammer on the tie rod itself right in front of where the stud goes thru it.
Old 10-16-2012, 01:22 PM
  #7
Seasoned Member
Thread Starter

lonewolf411's Avatar

Join Date: Jan 2009
Location: Central NJ
Posts: 261
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default

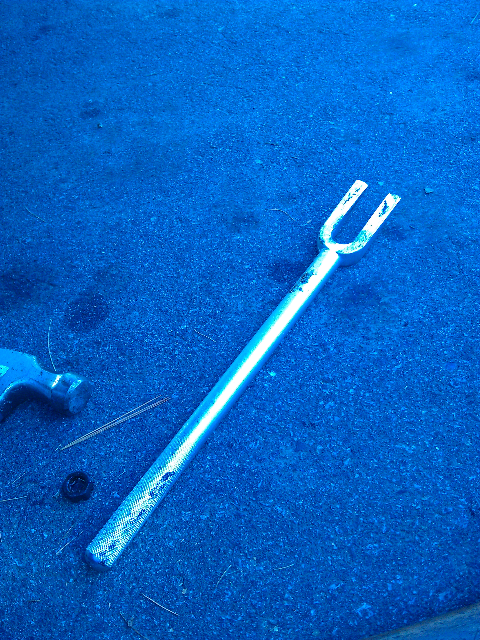

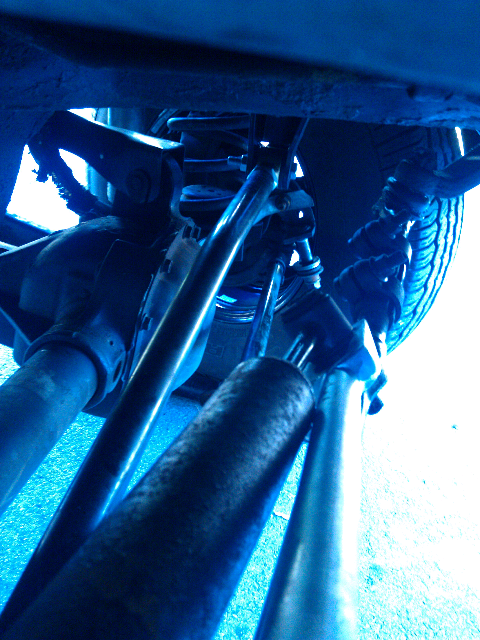

I went and got a pickle fork, still won't budge!
Attached Thumbnails Help with stabilizer install!!-forumrunner_20121016_142205.jpg   Help with stabilizer install!!-forumrunner_20121016_142233.jpg
Old 10-16-2012, 01:34 PM
  #8
Newbie

maxpower_hd's Avatar

Join Date: Oct 2012
Location: Massachusetts
Posts: 16
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

If the hammer in the picture is the one you're using you're going to need a bigger hammer. You want like a 4 lb sledge hammer. You may really have to give it a good whack.
Old 10-16-2012, 01:36 PM
  #9
CF Veteran

XJ-92's Avatar

Join Date: Feb 2011
Location: Dubuque IA,Libertyville IL
Posts: 2,450
Likes: 0
Received 2 Likes on 2 Posts
Year: 1992
Model: Cherokee
Engine: 4.0 HO
Default

i had trouble once with this. go inside the jeep and turn the steering wheel while someone hits the fork with the hammer.
Old 10-16-2012, 01:37 PM
  #10
CF Veteran

sthon's Avatar

Join Date: Mar 2011
Location: California
Posts: 2,570
Likes: 0
Received 4 Likes on 4 Posts
Year: 1992
Model: Cherokee
Engine: 4.0 HO
Default

Originally Posted by maxpower_hd
If the hammer in the picture is the one you're using you're going to need a bigger hammer. You want like a 4 lb sledge hammer. You may really have to give it a good whack.
^This, you need a BFH. Not that dinky thing.
Old 10-16-2012, 01:46 PM
  #11
CF Veteran

unidentifiedbomb's Avatar

Join Date: May 2011
Location: DE
Posts: 6,098
Received 247 Likes on 206 Posts
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

They're such a pain to get off lol
Old 10-16-2012, 01:50 PM
  #12
CF Veteran

stock95sport(for now)'s Avatar

Join Date: Nov 2011
Location: Manchester, N.H.
Posts: 1,122
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
Default

Is there any way to get a 2-jaw or 3-jaw puller on there? or ball joint press?
Old 10-16-2012, 01:54 PM
  #13
CF Veteran

I Leak Oil's Avatar

Join Date: Nov 2010
Location: Frisco, Tx
Posts: 3,251
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
Default

Just a BFH. Thats all you will need. Well that and a few hard hits. It will come off
Old 10-16-2012, 01:54 PM
  #14
Seasoned Member
Thread Starter

lonewolf411's Avatar

Join Date: Jan 2009
Location: Central NJ
Posts: 261
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default

I'm using a small sledge hammer now, it's not budging! It's ridiculous!
Old 10-16-2012, 01:58 PM
  #15
Old School CF Moderator

Xj88's Avatar

Join Date: May 2010
Location: Chattanooga
Posts: 9,652
Likes: 0
Received 3 Likes on 3 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default

You think thats stuck? You should have seen my TRE stuck inside the frame mount. I cut the trac bar in half to get to the TRE...anyways I got the mount off..me and a few buds put it on a table vice...and with a HUGE 8lb sledge hammer we slammed it for like 30 minutes straight...finally popped out.
