Fender flares
#4
#7

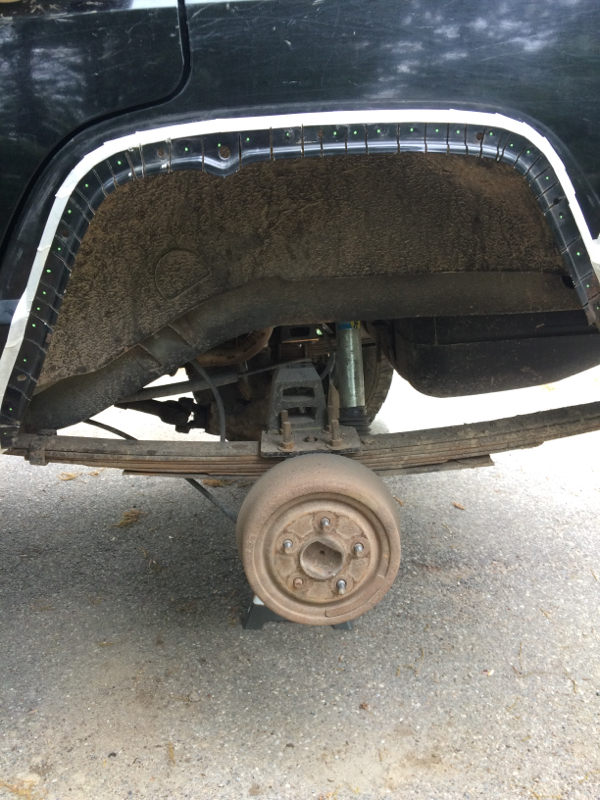

Angle grinder, cut like so, then pound over with a mini-sledge. Notice the little green dots. Those are on the spot welds for the pinch seam. Do not cut the spot welds! Attachment 289892

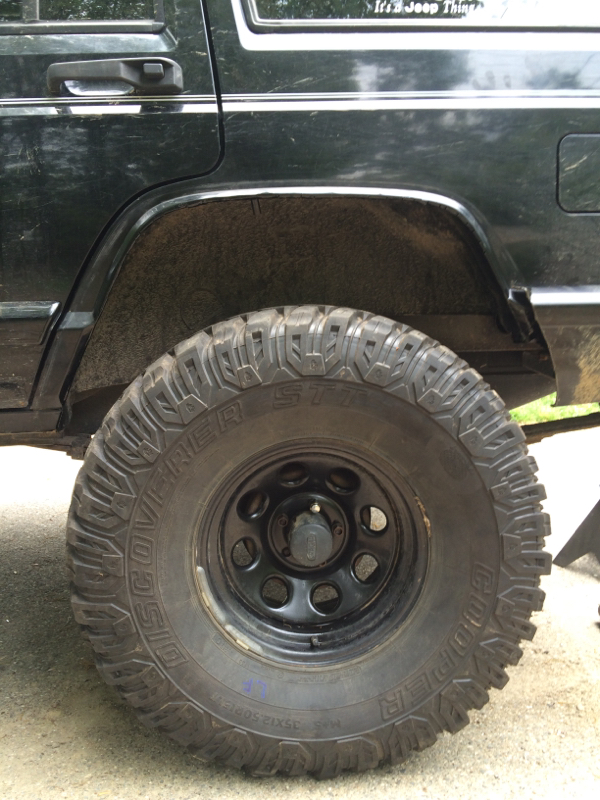

Attachment 289893
Attachment 289893
Trending Topics
#8
Angle grinder, cut like so, then pound over with a mini-sledge. Notice the little green dots. Those are on the spot welds for the pinch seam. Do not cut the spot welds! Attachment 289892
Attachment 289893
Attachment 289893
#10
CF Veteran
Join Date: Jul 2012
Location: Andover, VT
Posts: 2,973
Received 229 Likes
on
178 Posts
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0 L
Not sure what this question is here. As far as the other goes, I trimmed the inner liner at first and ended up removing it after. I'll do the pool noodle trick. Eventually.
#11
sorry I meant my question was how to know where the spot welds are so I don't cut them when I go to cut and tuck my genders
#12
CF Veteran
I cut mine just under the pinch seam for the rear cut and fold. Hammering them up pulls them up too so take that into consideration if you don't want the slits to be easily visible. For the front I traced the curve with the grinder and just kept grinding until it came off. I trimmed the inner fender liner and will eventually zip tie the low hanging parts to the fender.
#13
CF Veteran
Join Date: Jul 2012
Location: Andover, VT
Posts: 2,973
Received 229 Likes
on
178 Posts
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0 L
Kinda hard to describe over the Internet but you'll see when you pull the fender off. There's little dimples in the fender that are where the spot welds are.
